The first pictures

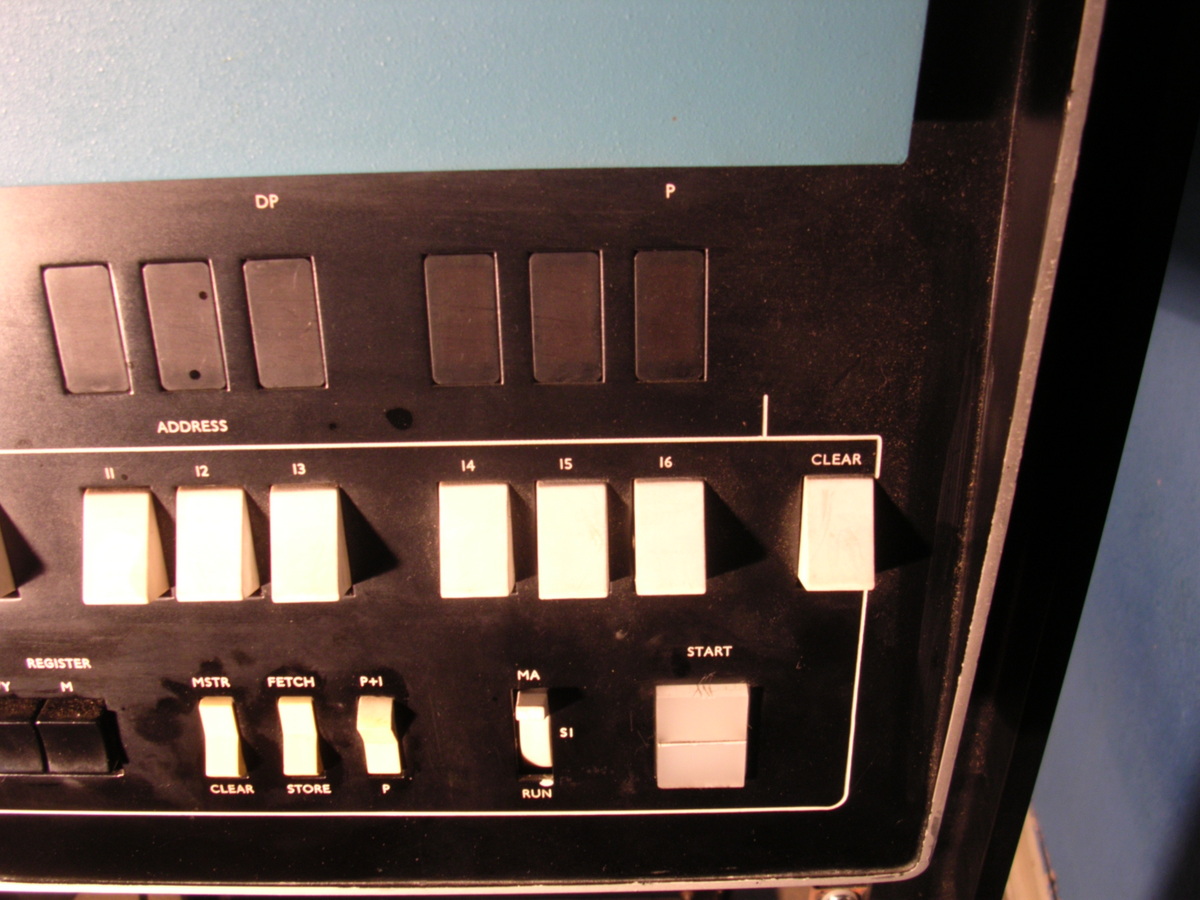

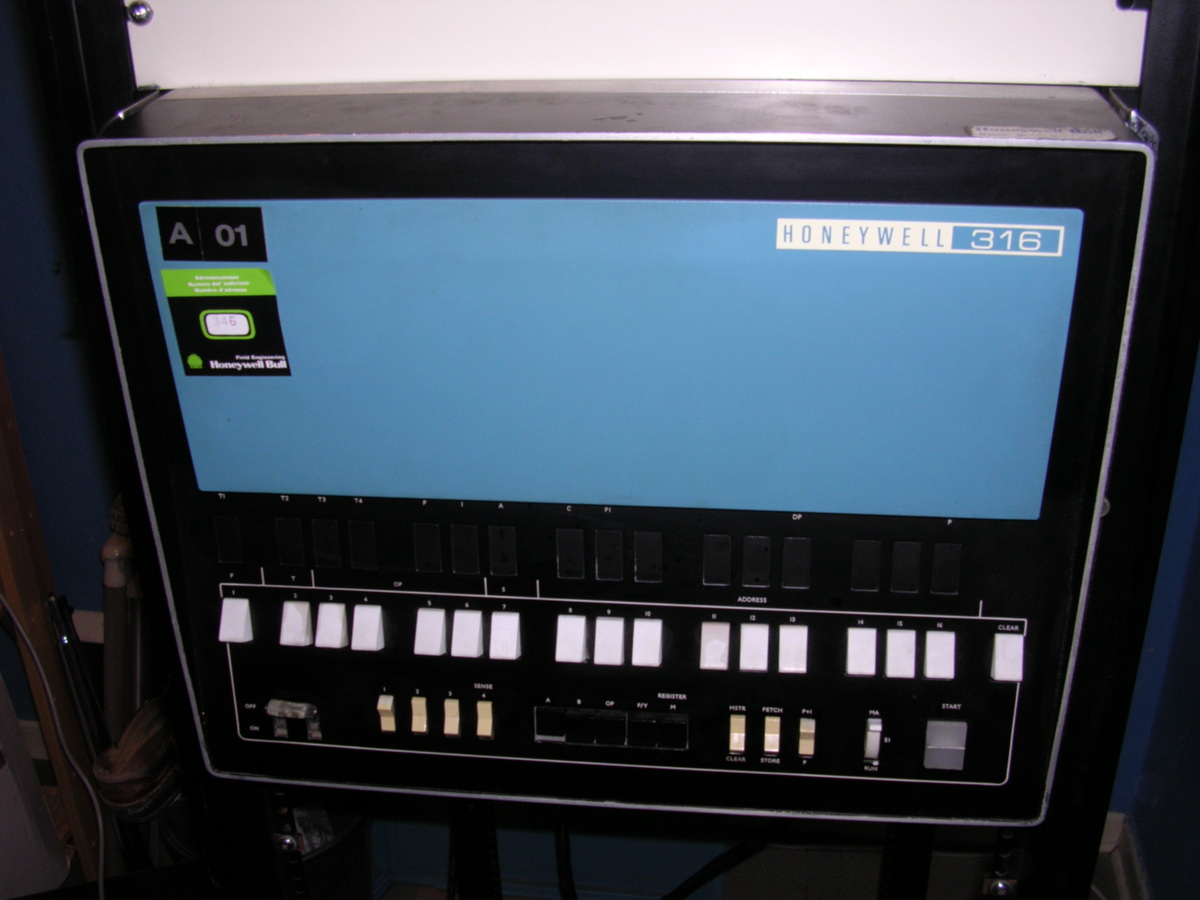

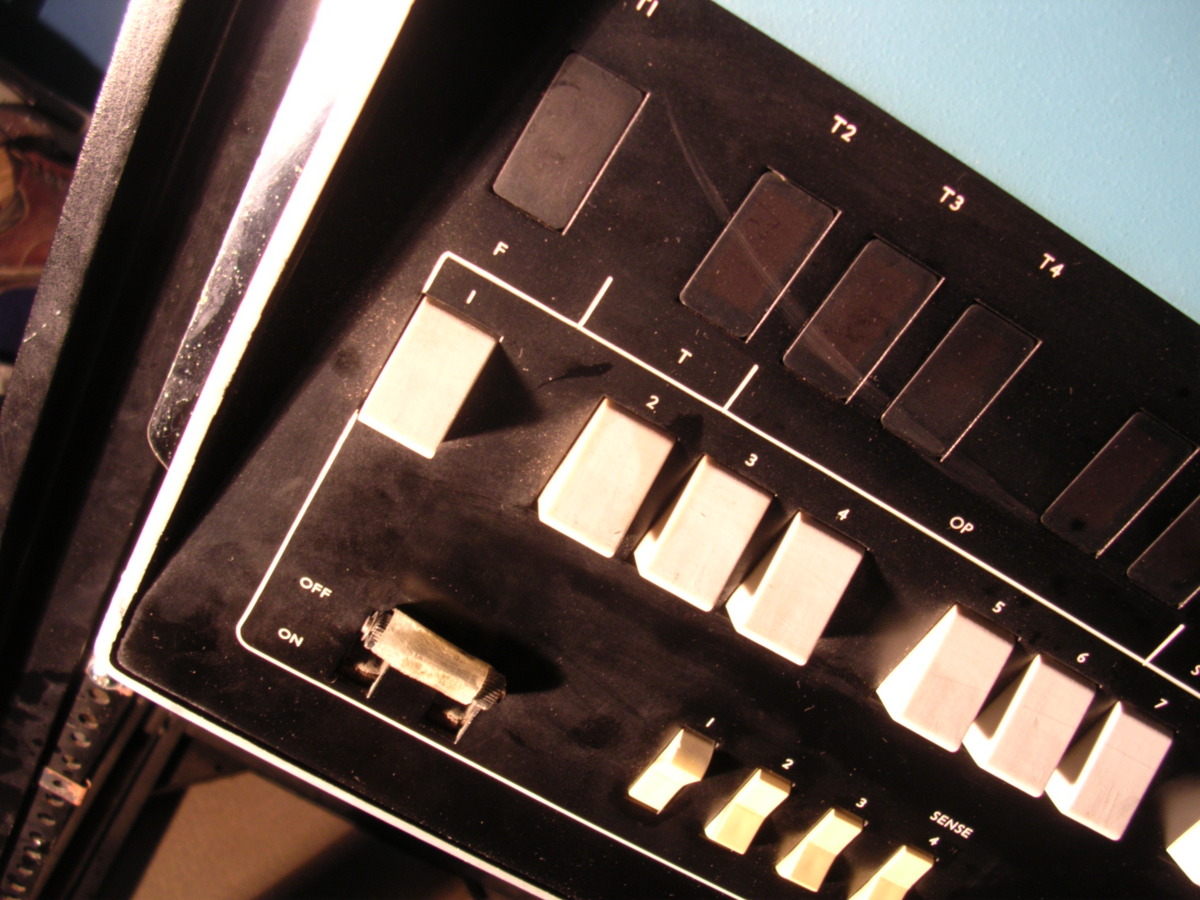

Click pictures to enlarge!This is the front panel

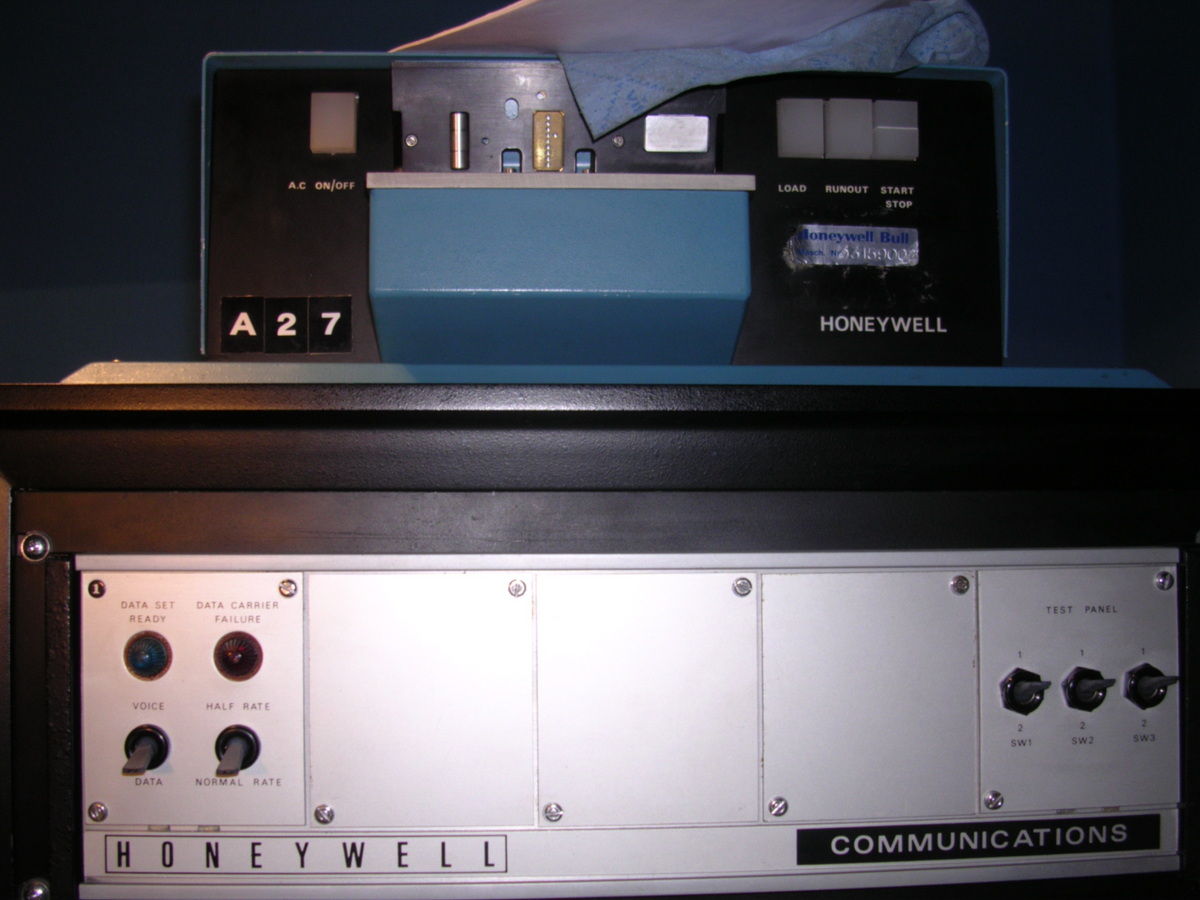

The external paper tape reader on top of the rack.
I call it comfort... :-)

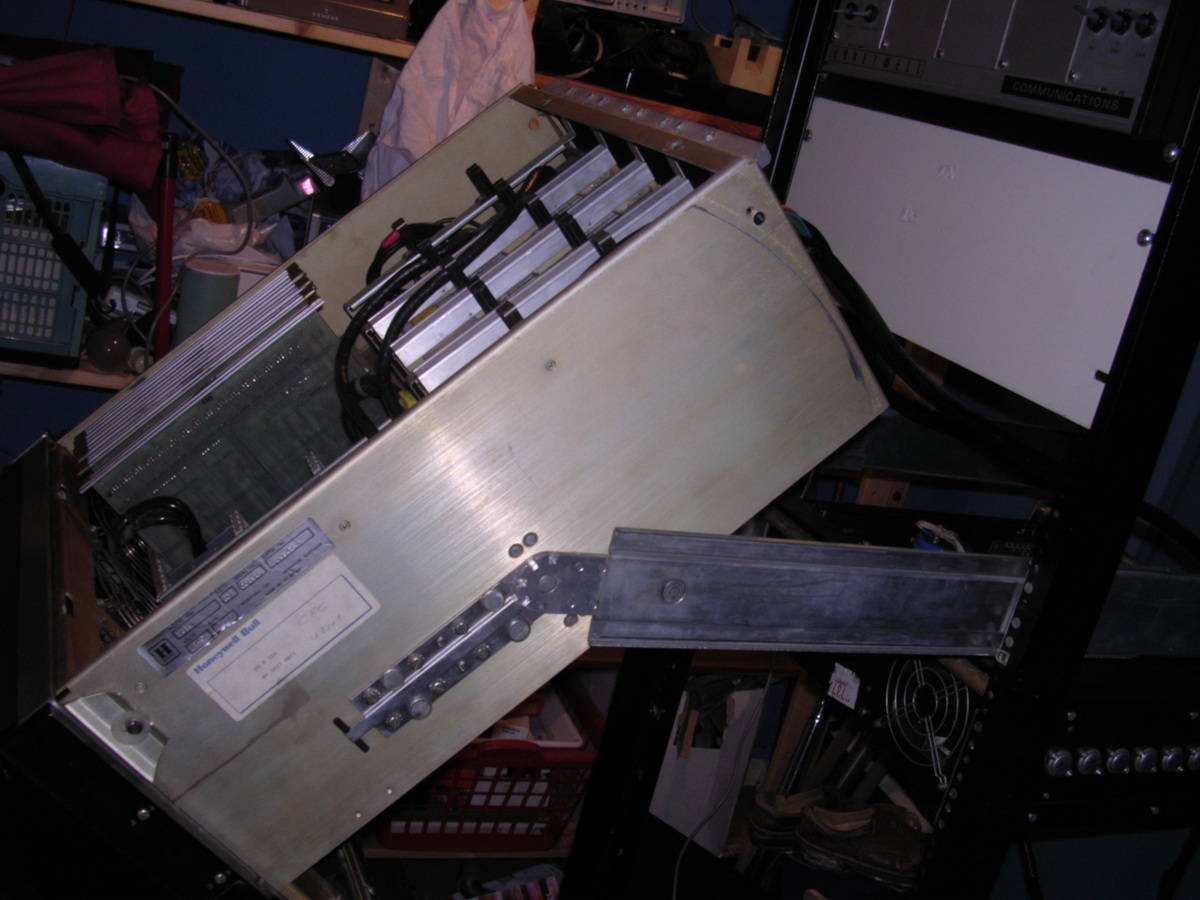

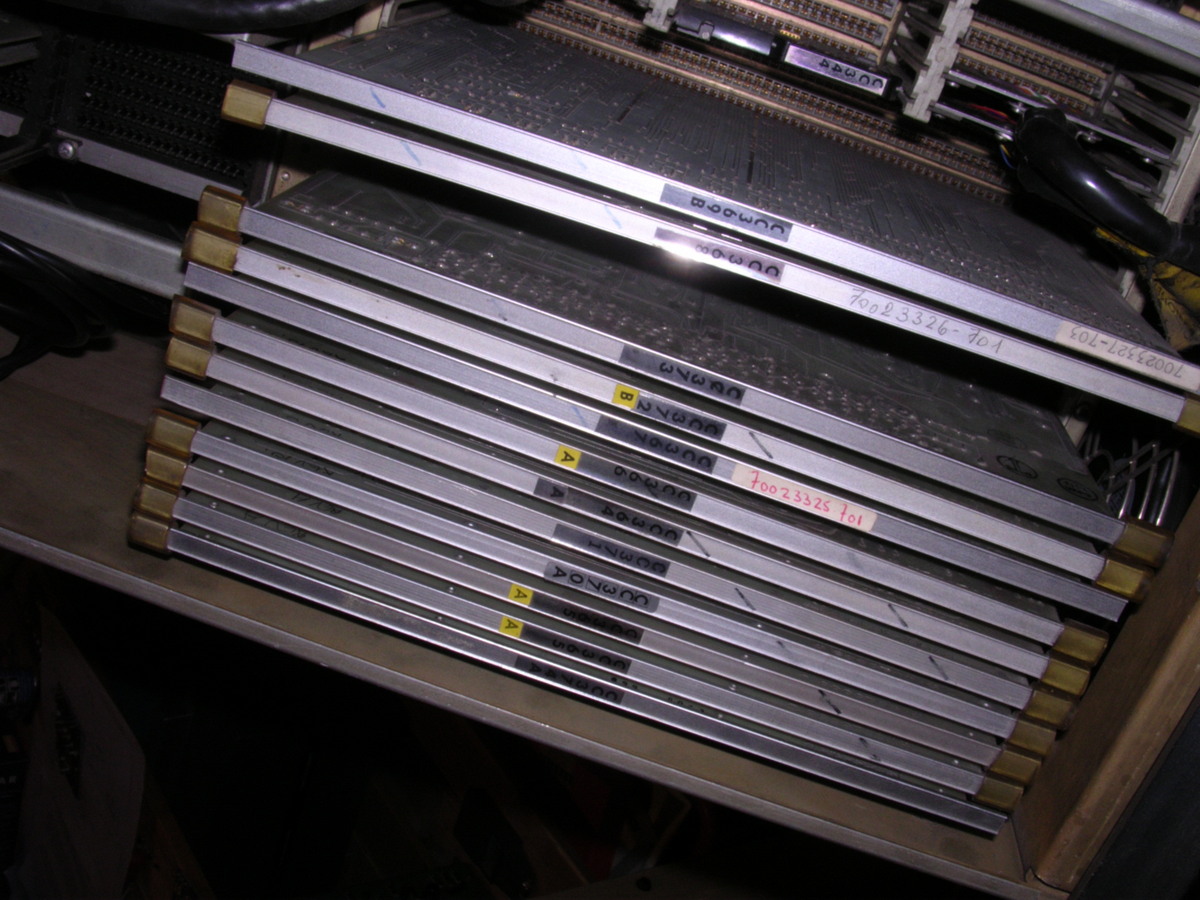

This is the CPU. Notice the missing two cards. That's the space for the "High Speed Arithmetic Option" which I don't have :-(

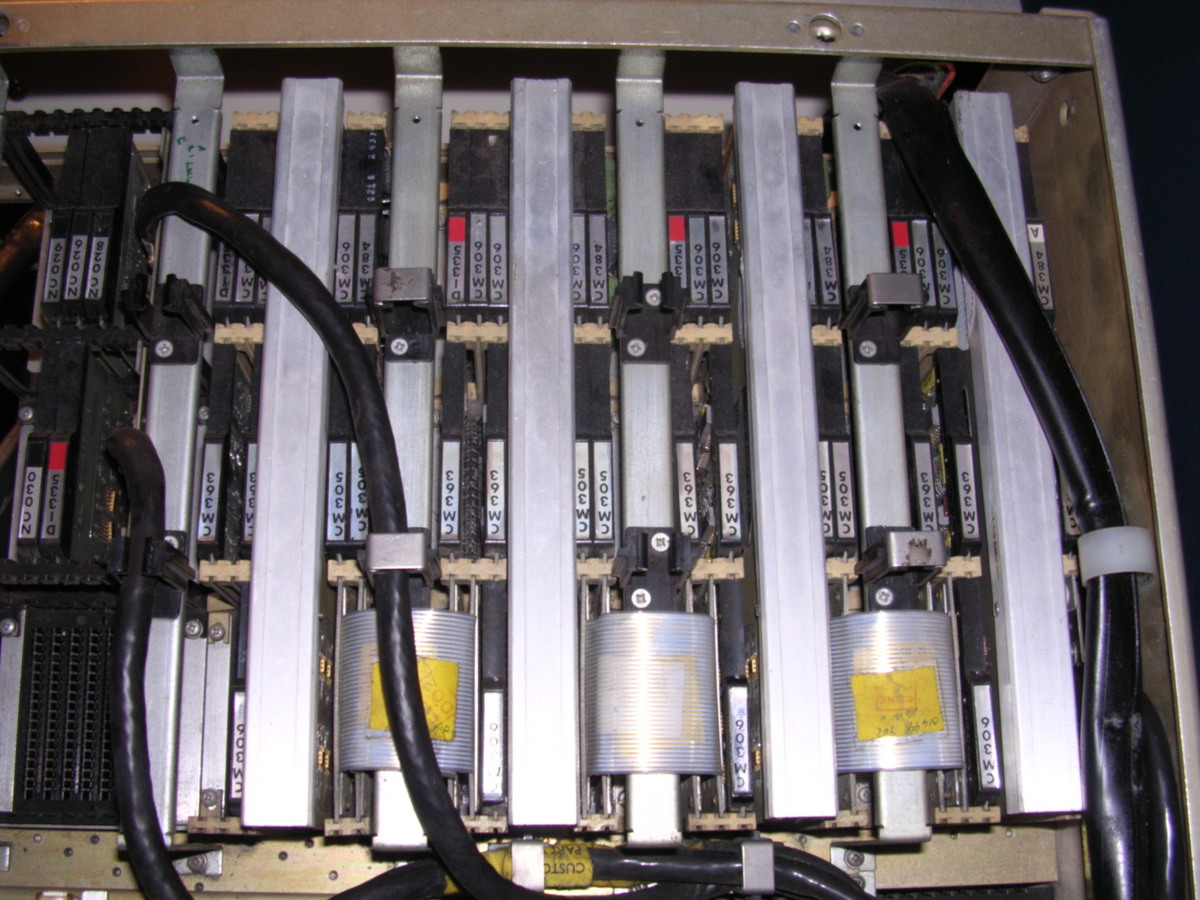

The core memory stacks. 4k x 16bit installed :-) Hope to get it working, soon.

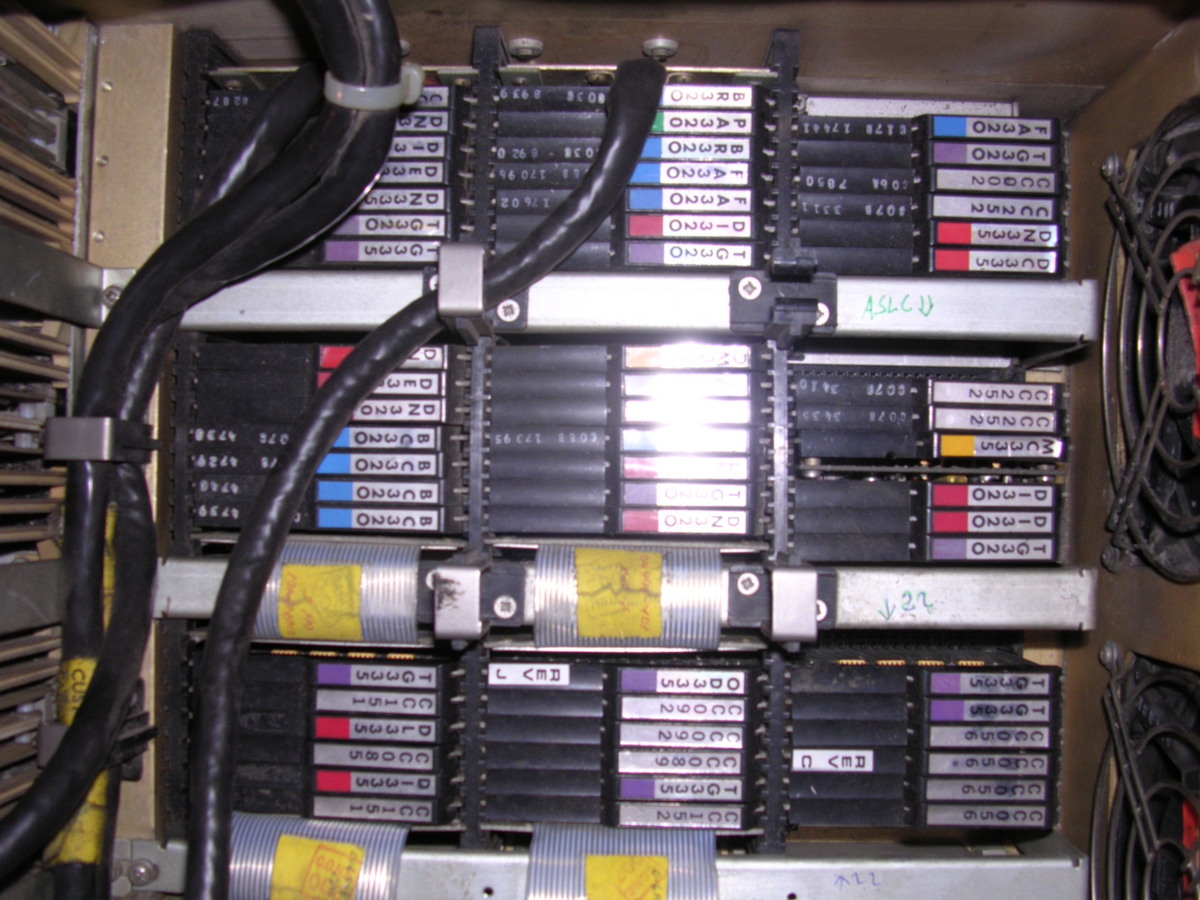

Some strange peripherals. One part of it is a serial port (aslc). the rest is (still) unknown.

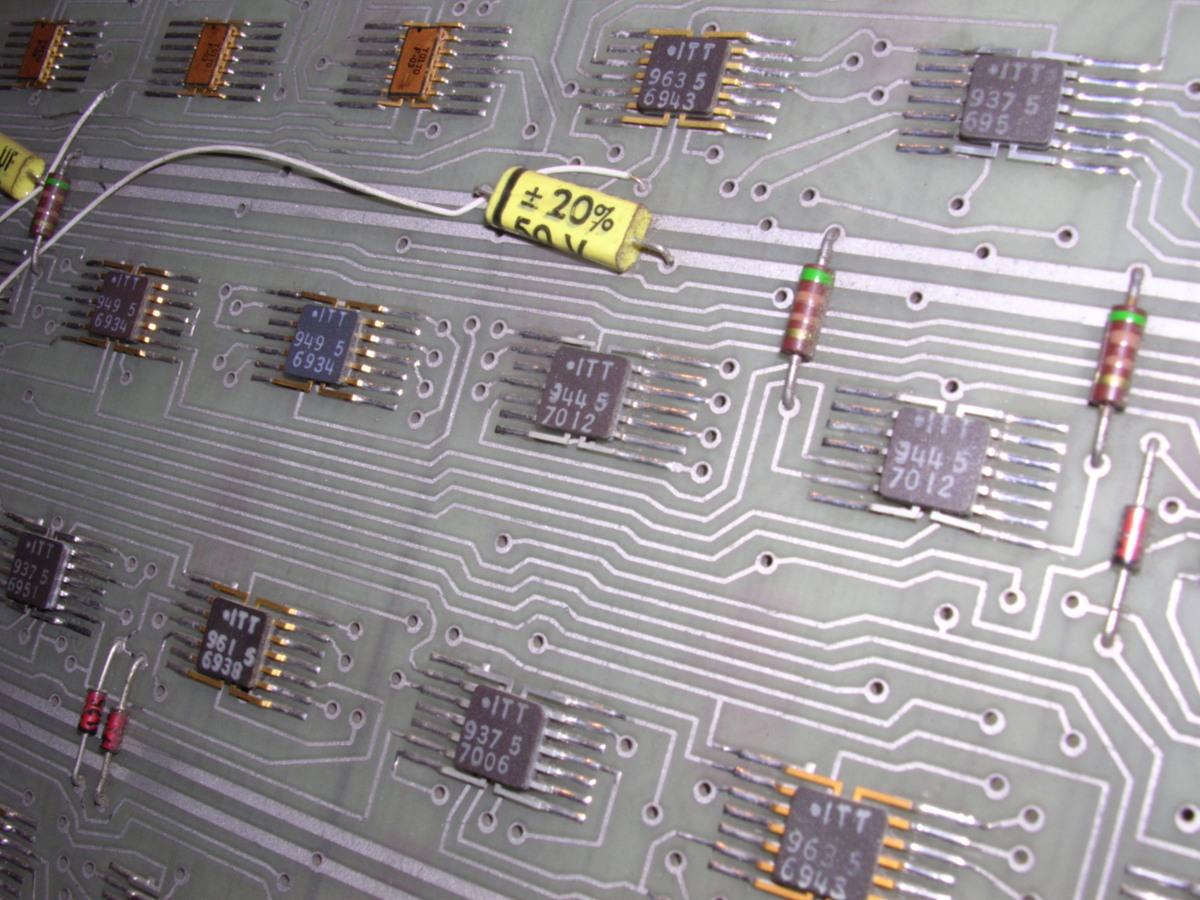

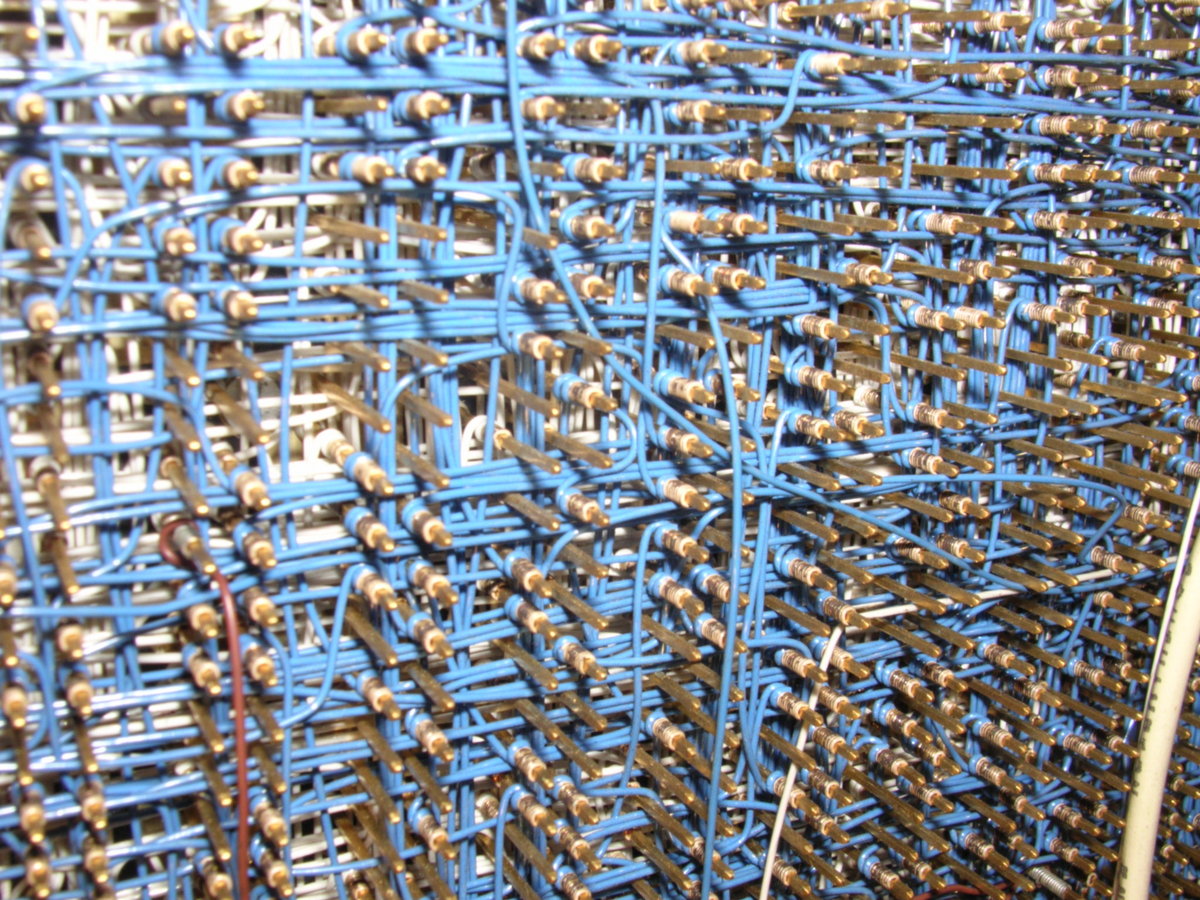

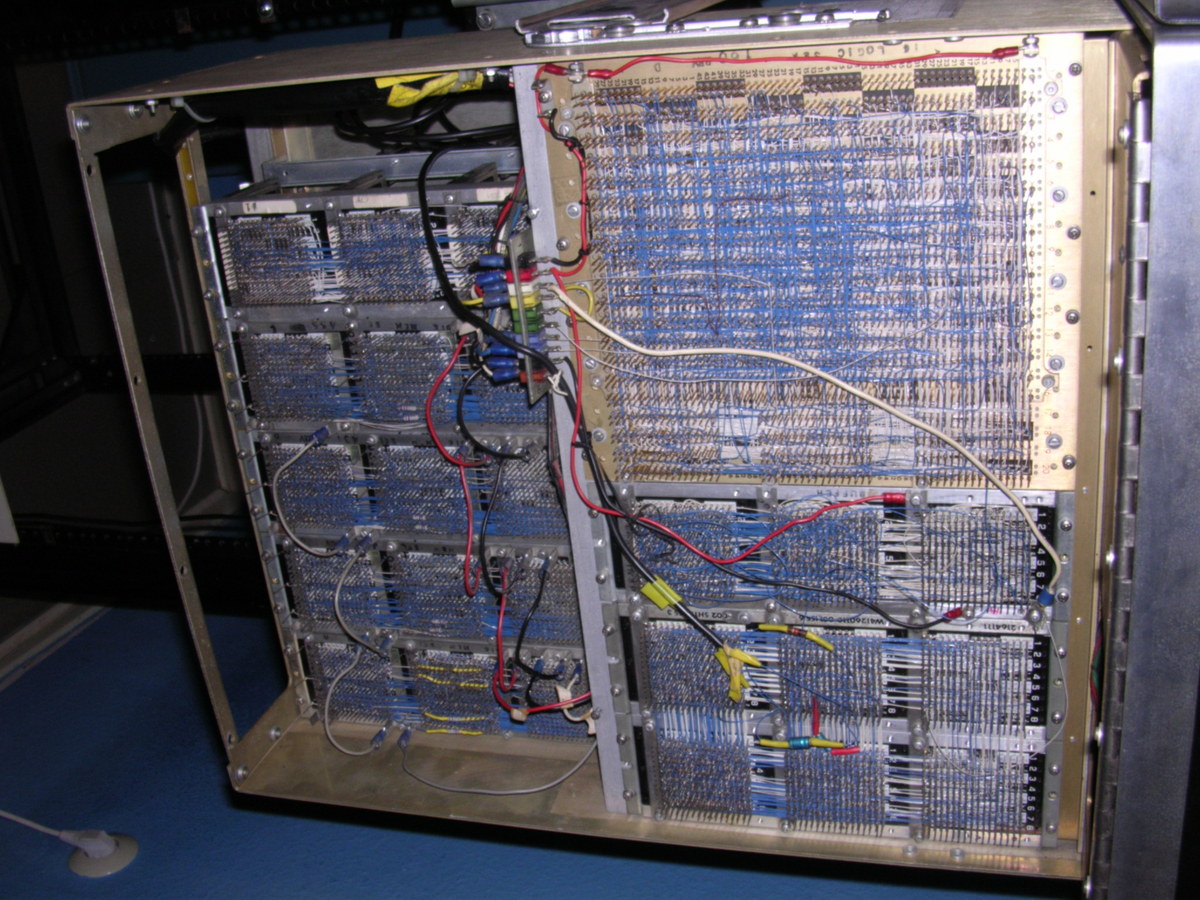

A closeup of one of the CPU pcb cards and the wire-wrapped CPU

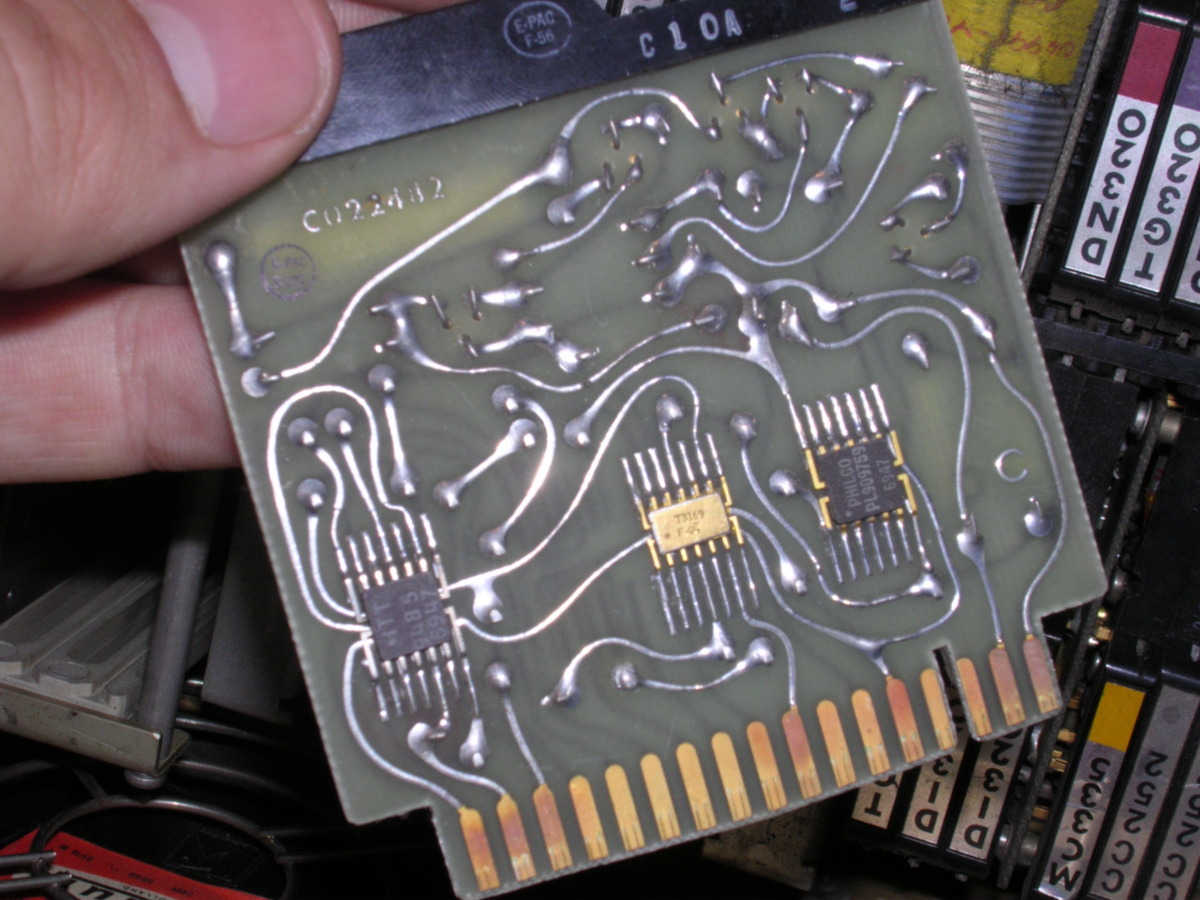

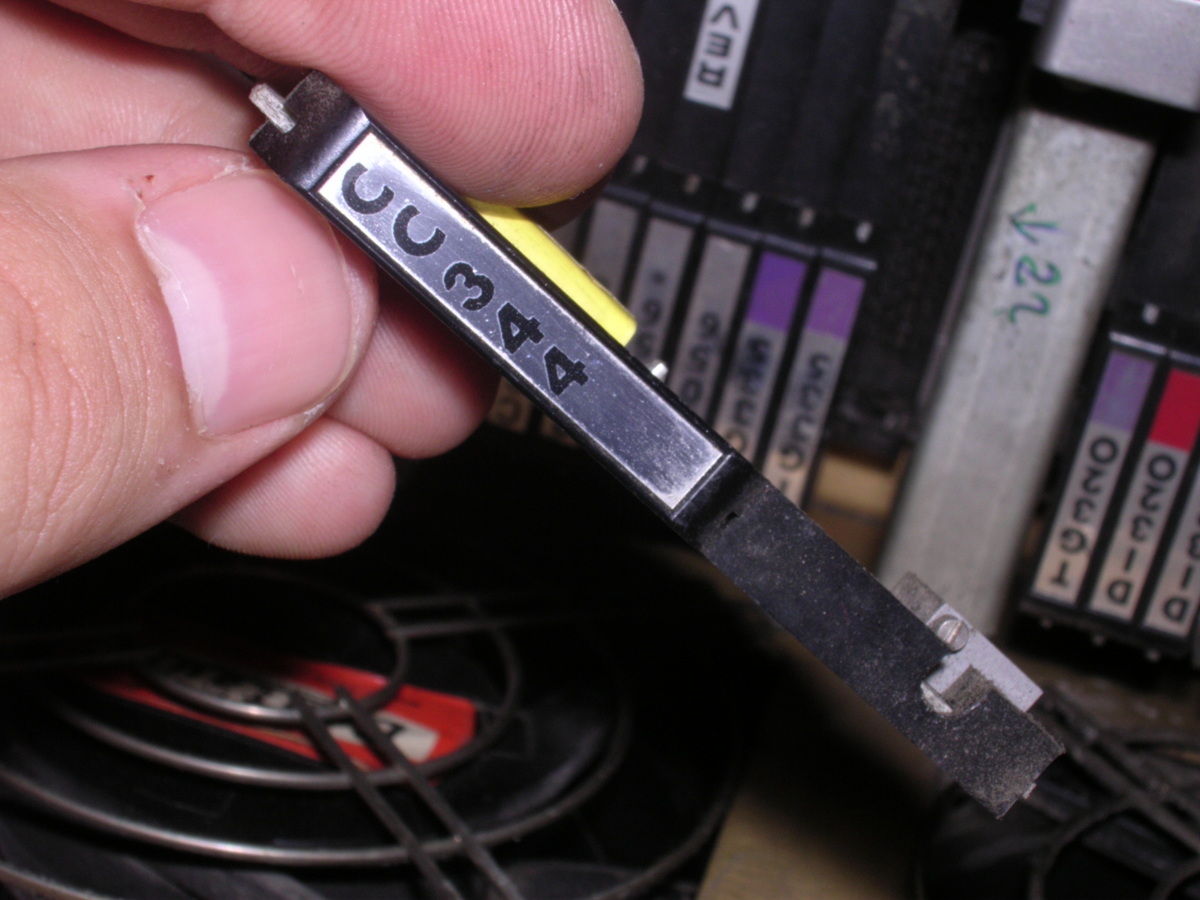

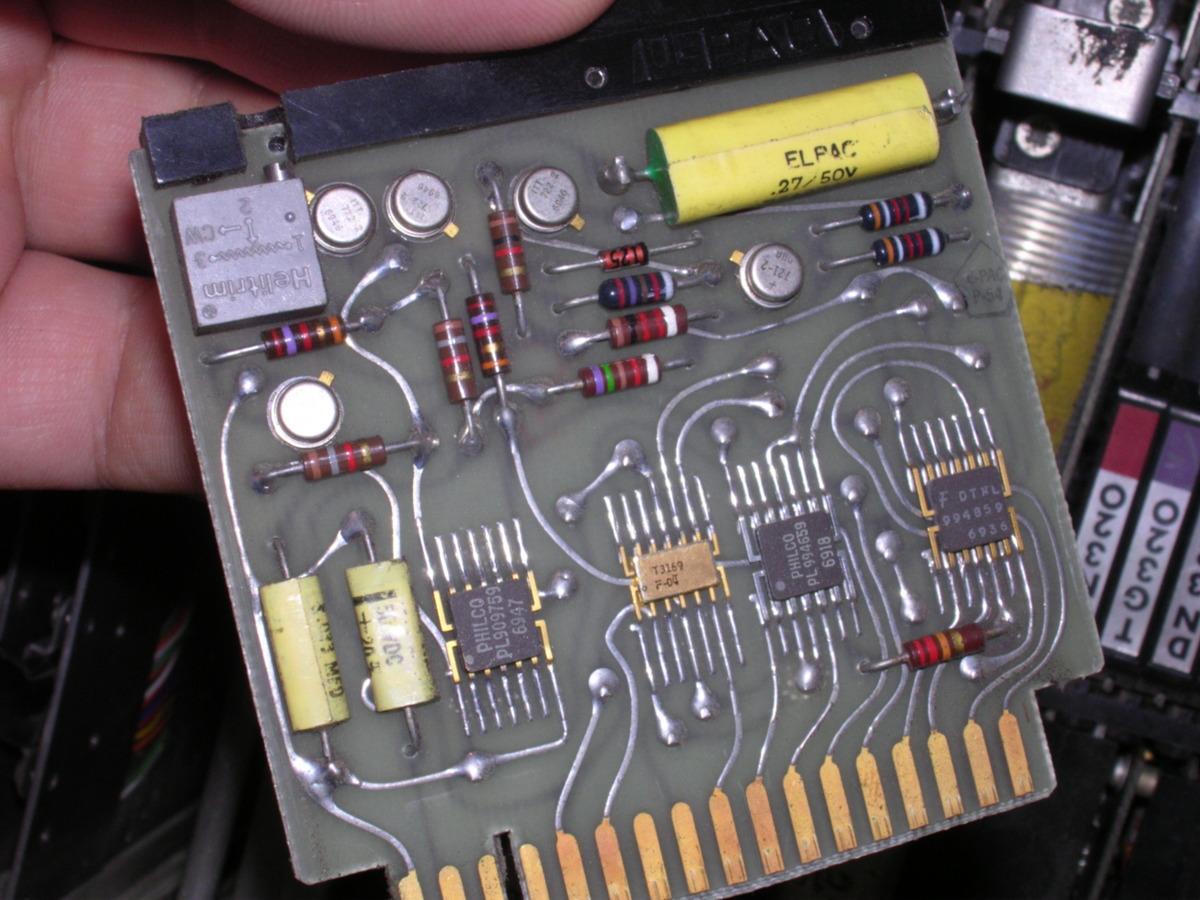

I am proud owner of the realtime clock option :-)

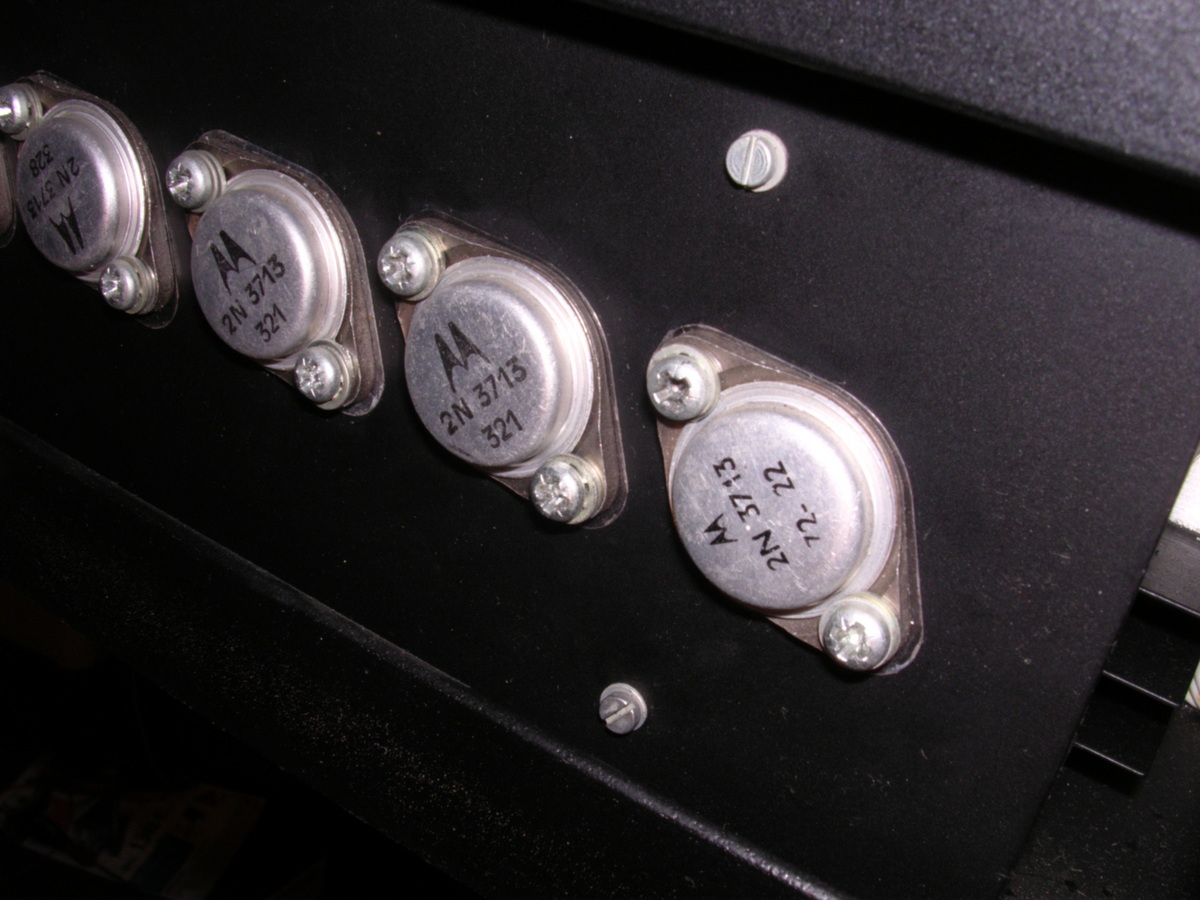

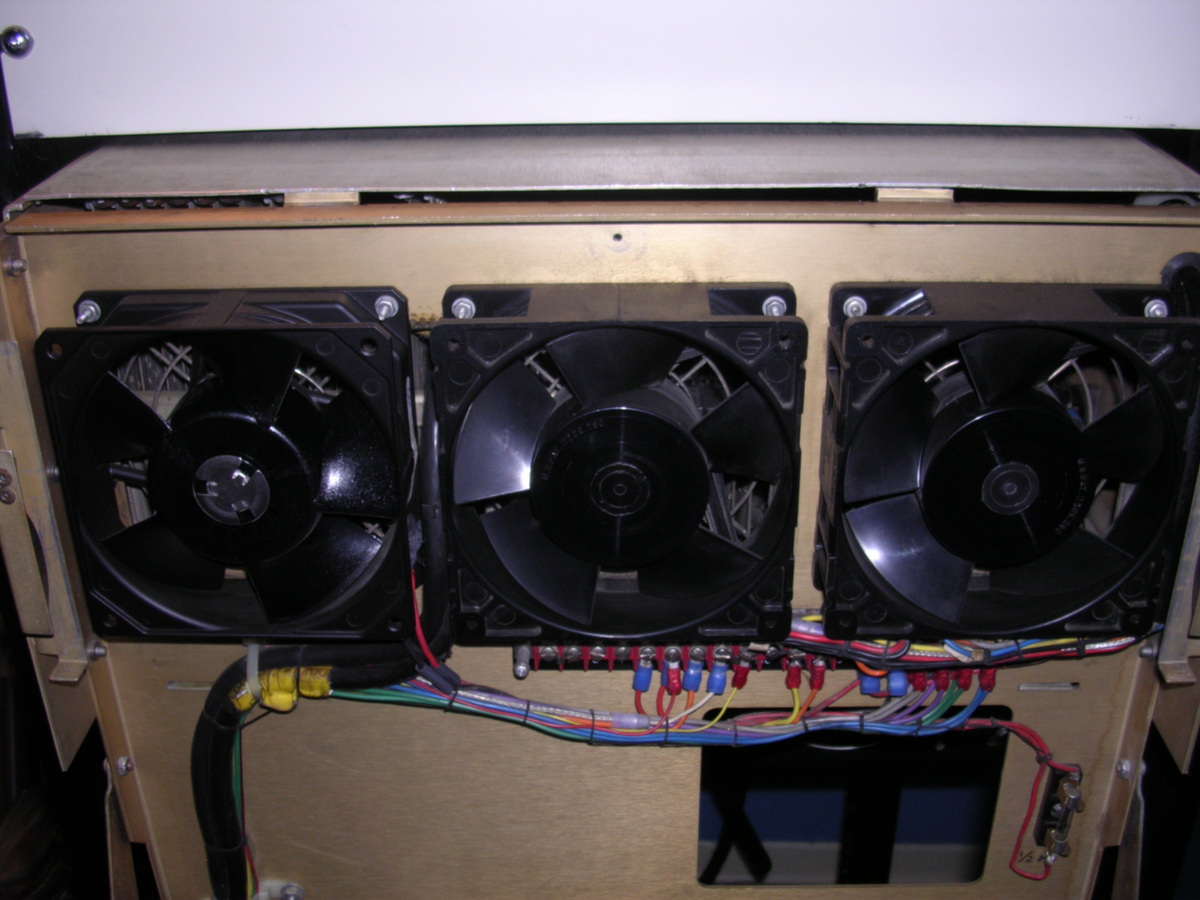

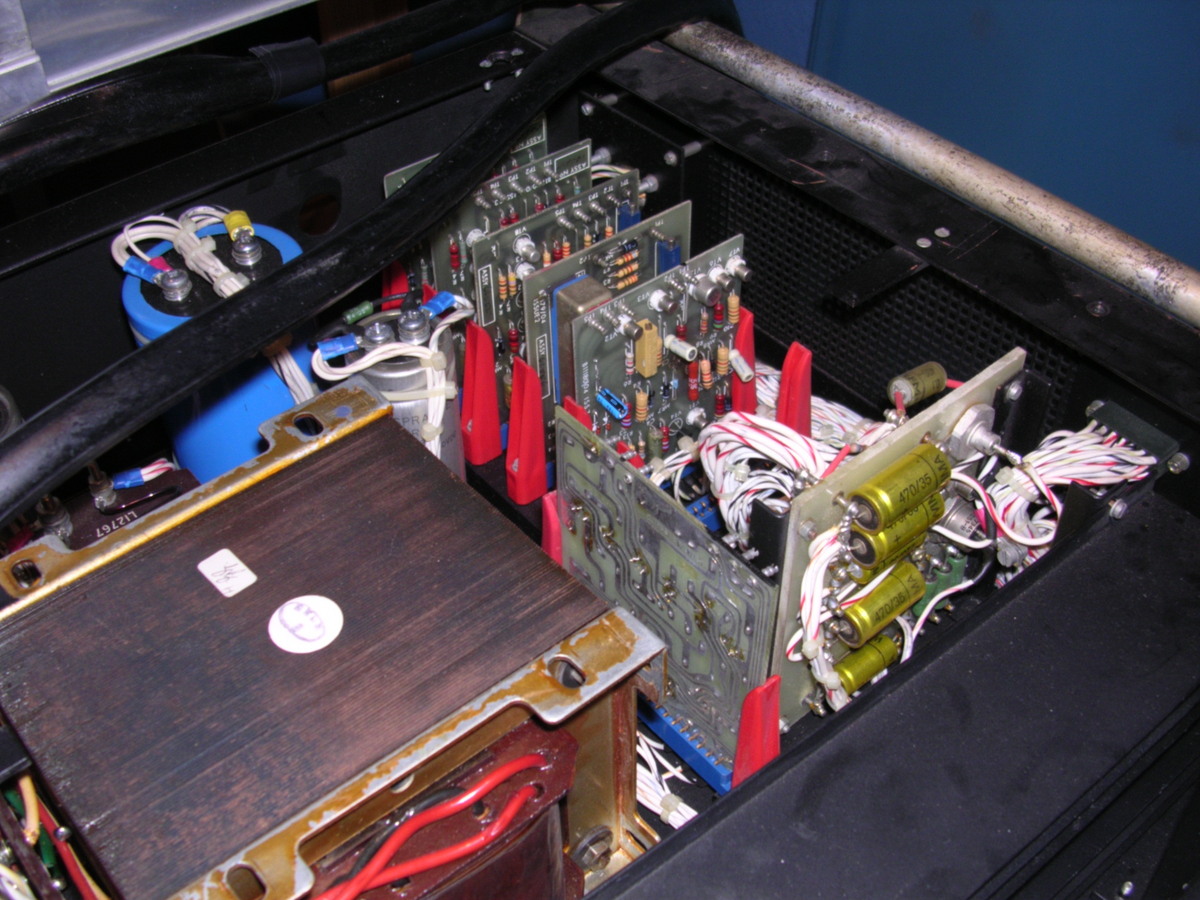

The power supply and the CPU's air intake. Heat and cool....

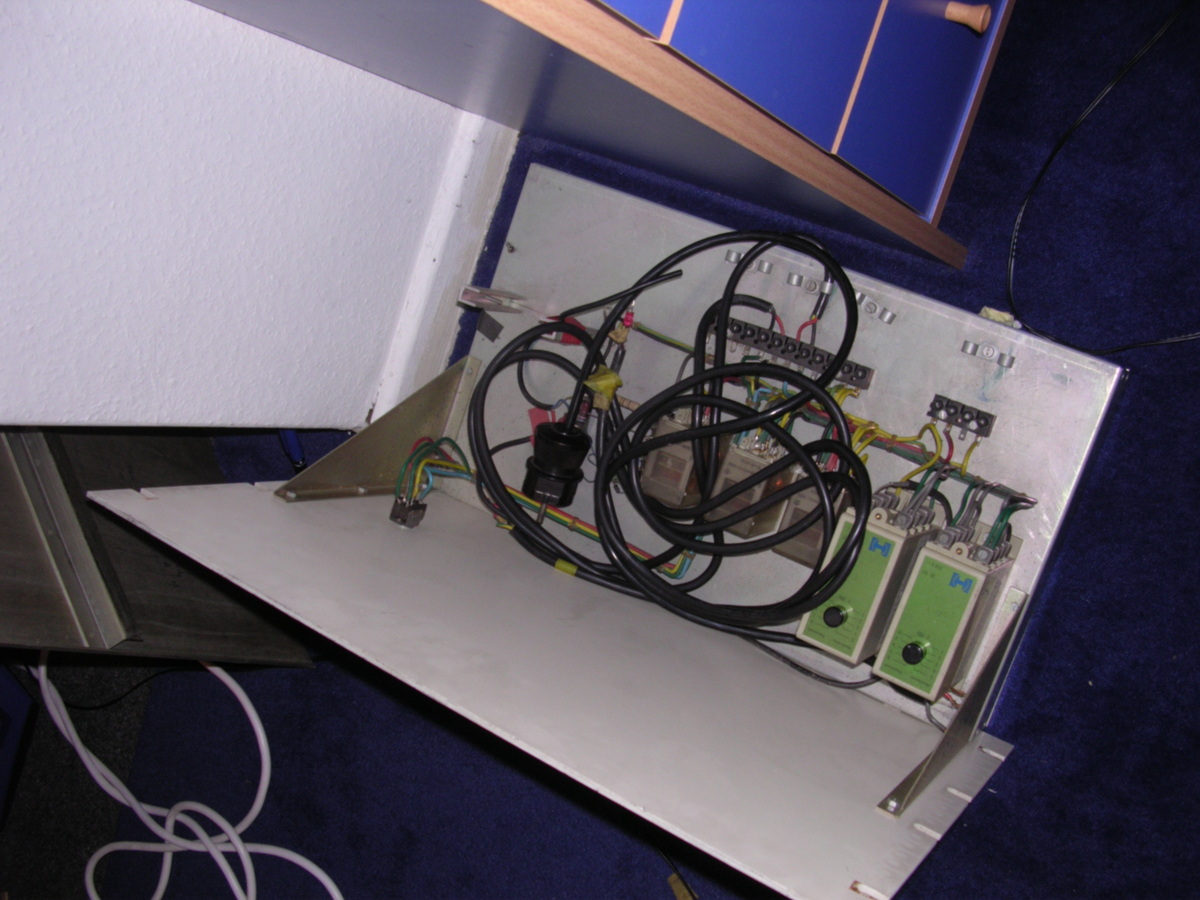

These are a strange "Auto Restart Option" I extracted from my machine and some software.
