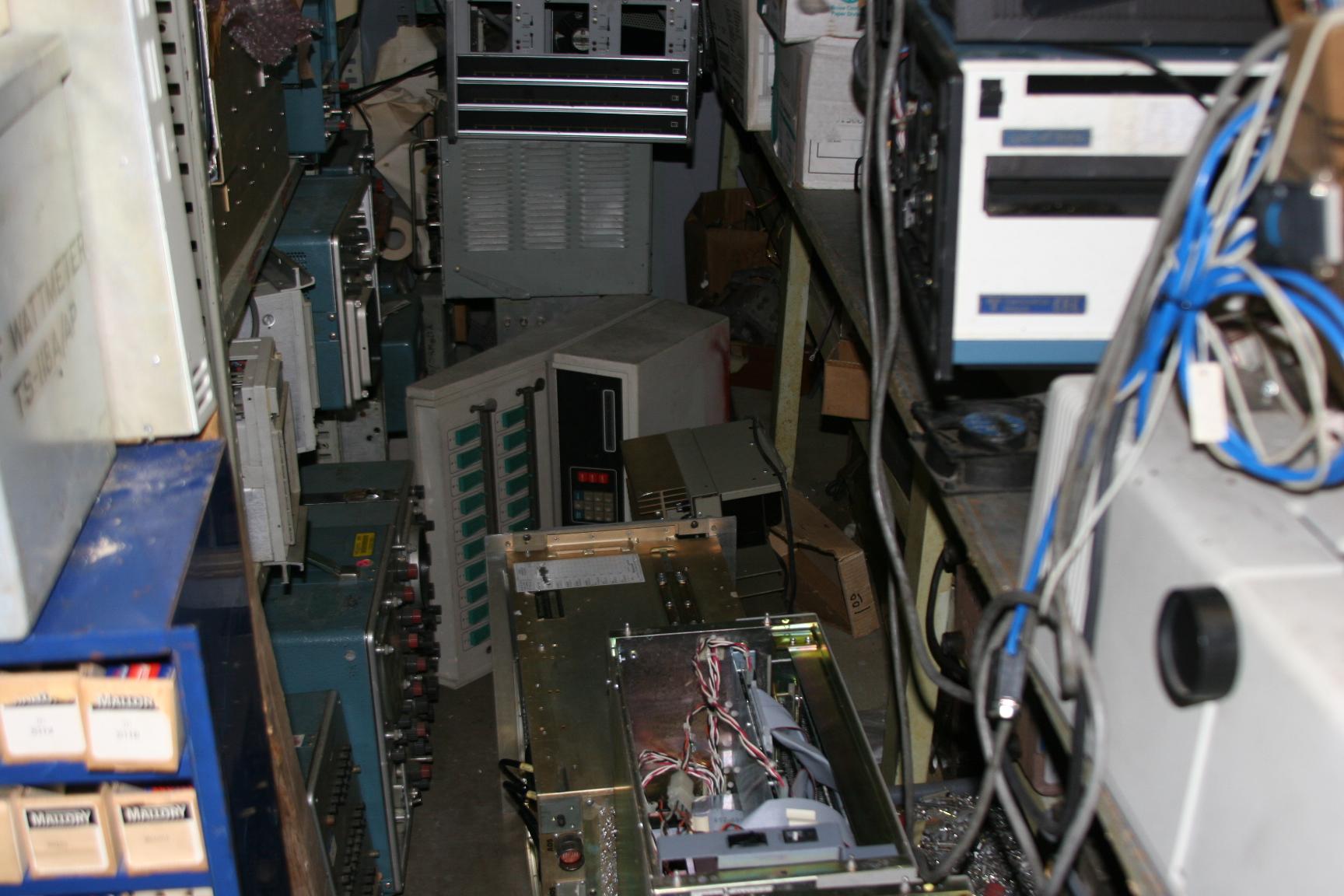

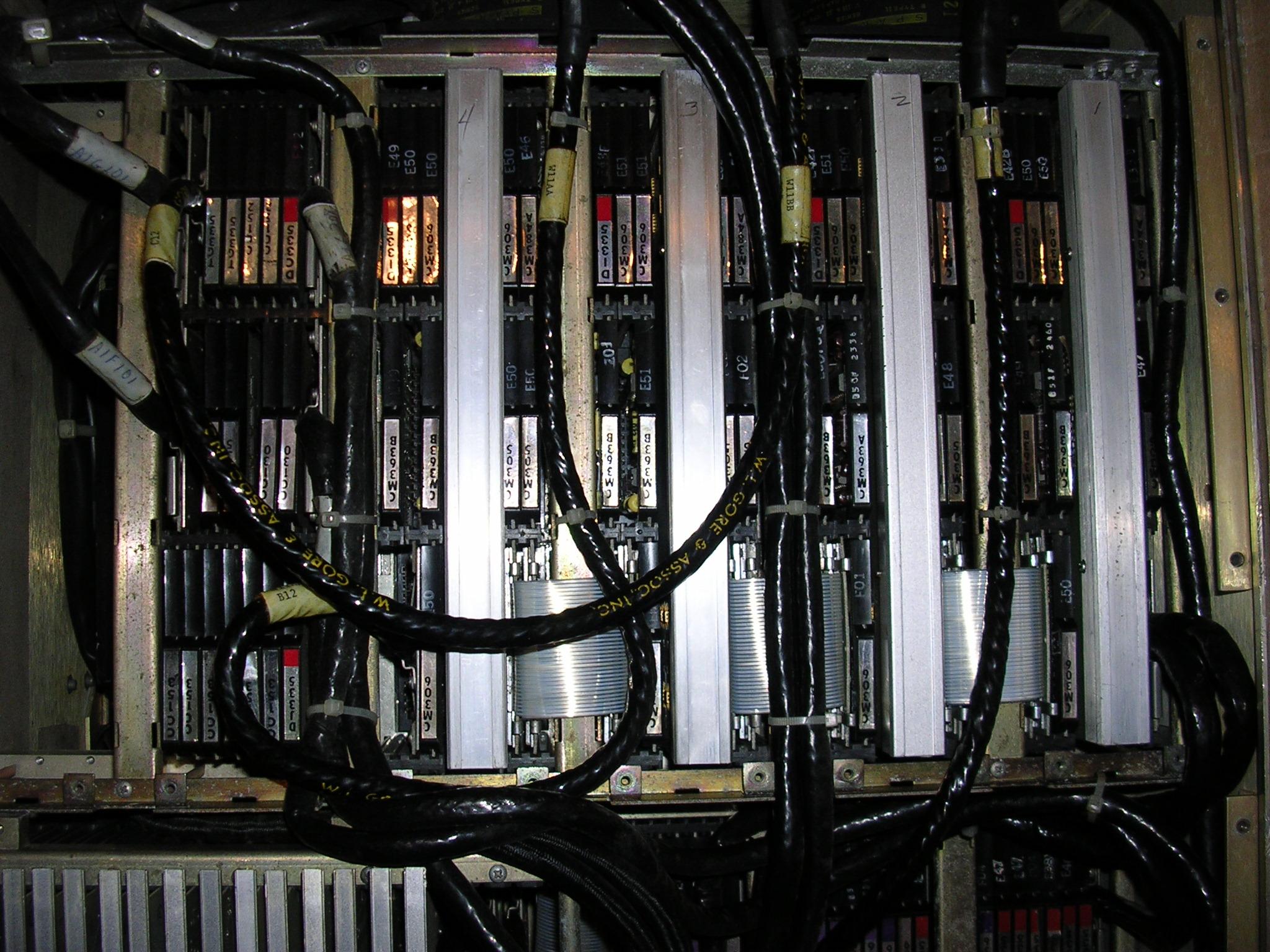

The first picture. Do you see the H316? Not? There must be a strange place outside somewhere. Called Nortex... Why don't we have this kind of surplus dealers in Germany? | |
 1024x768 Full size |
This is André with the H316R, still in the Nortex storage. | |
 1024x768 Full size |

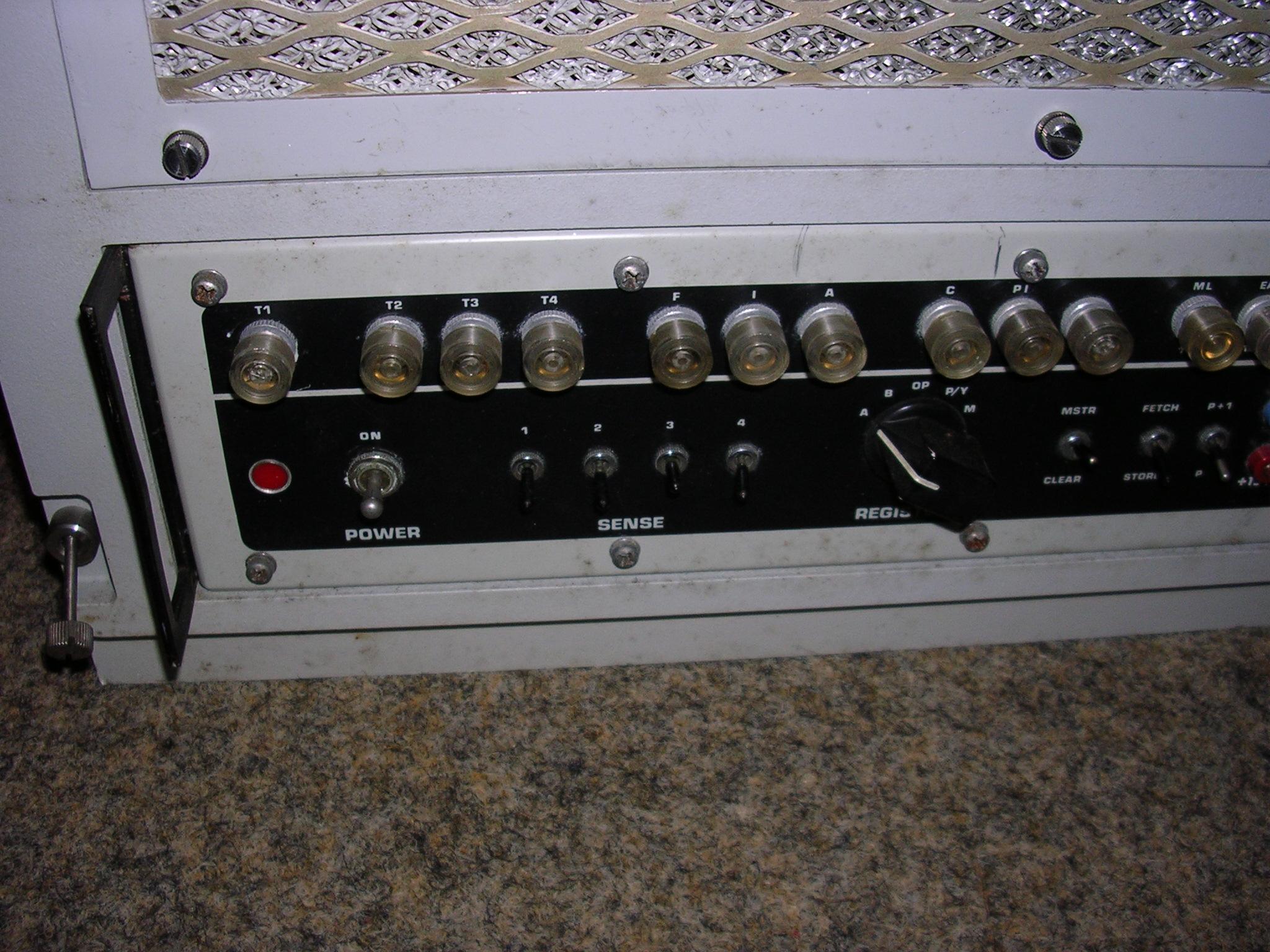

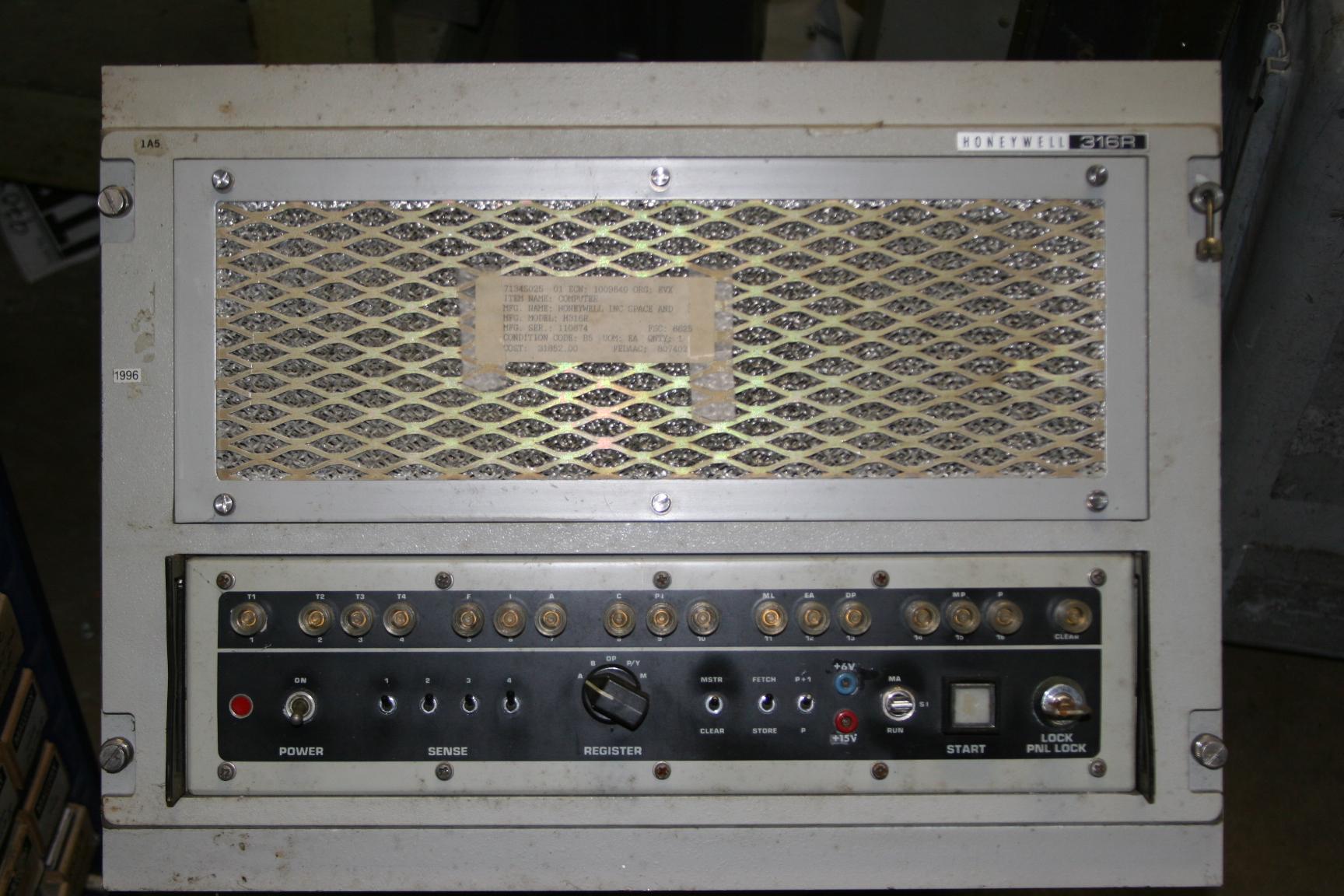

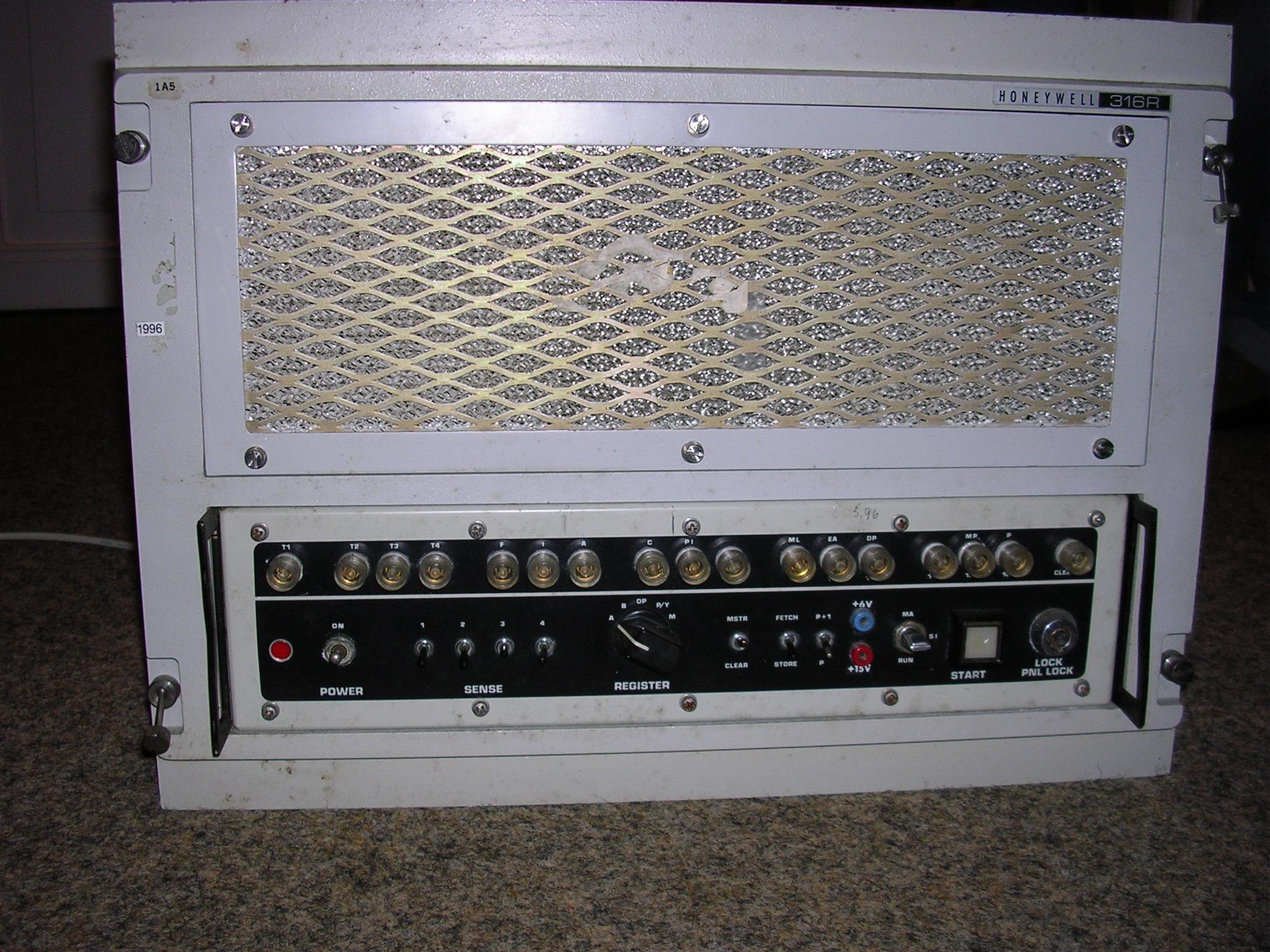

First view of the ruggedized front panel. | |
 1024x768 Full size |
They loaded it on a truck! :-) | |
 1024x768 Full size |
... Pulled the memories for decoration purposes. | |
 1024x768 Full size |

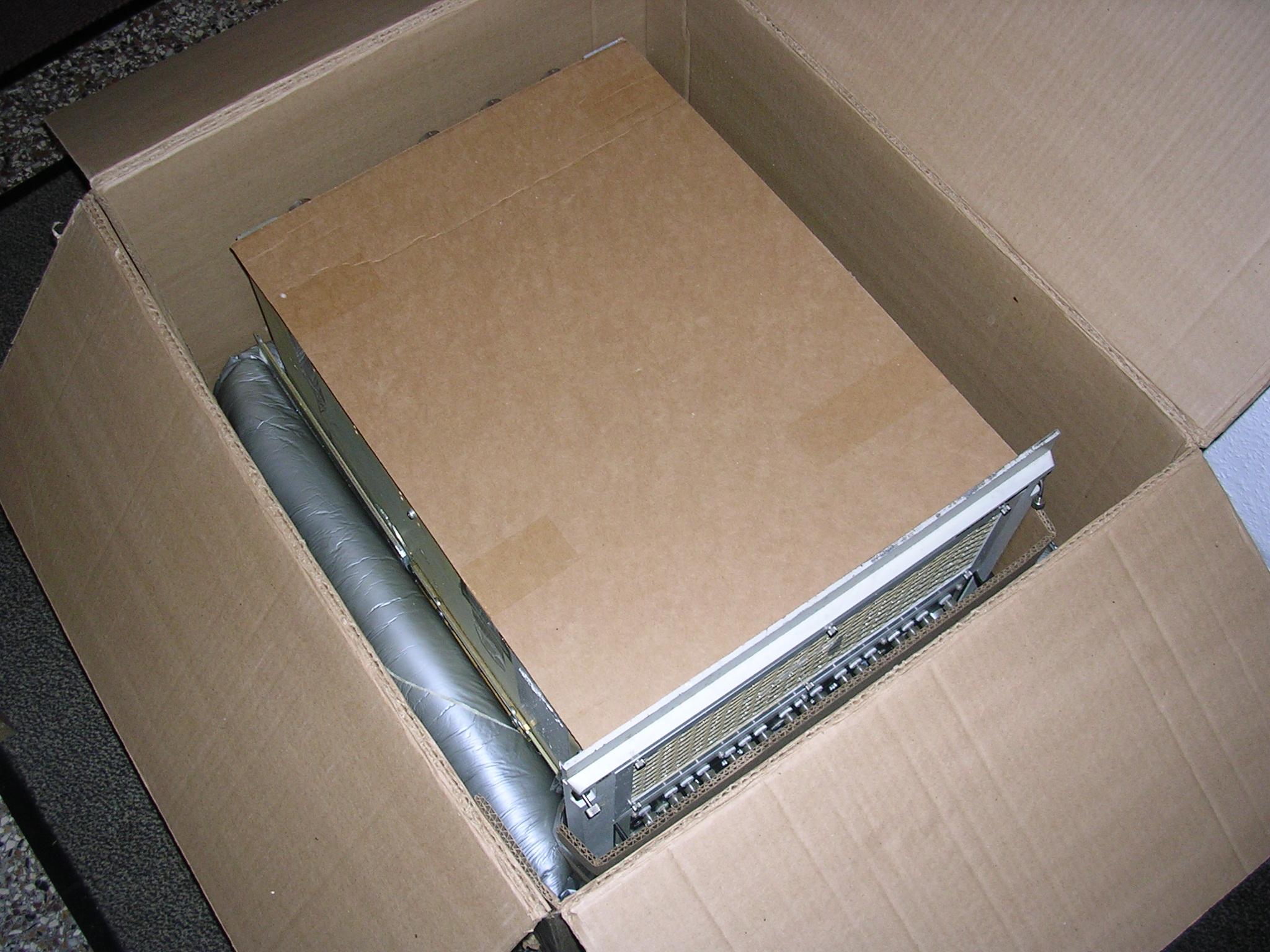

This box arrived today in Alfeld. What might be inside? | |
 1024x768 Full size |
Foam! | |
 1024x768 Full size |
Hey, ebayers around the world! Look at this package! That's the way it has to be done! | |
 1024x768 Full size |

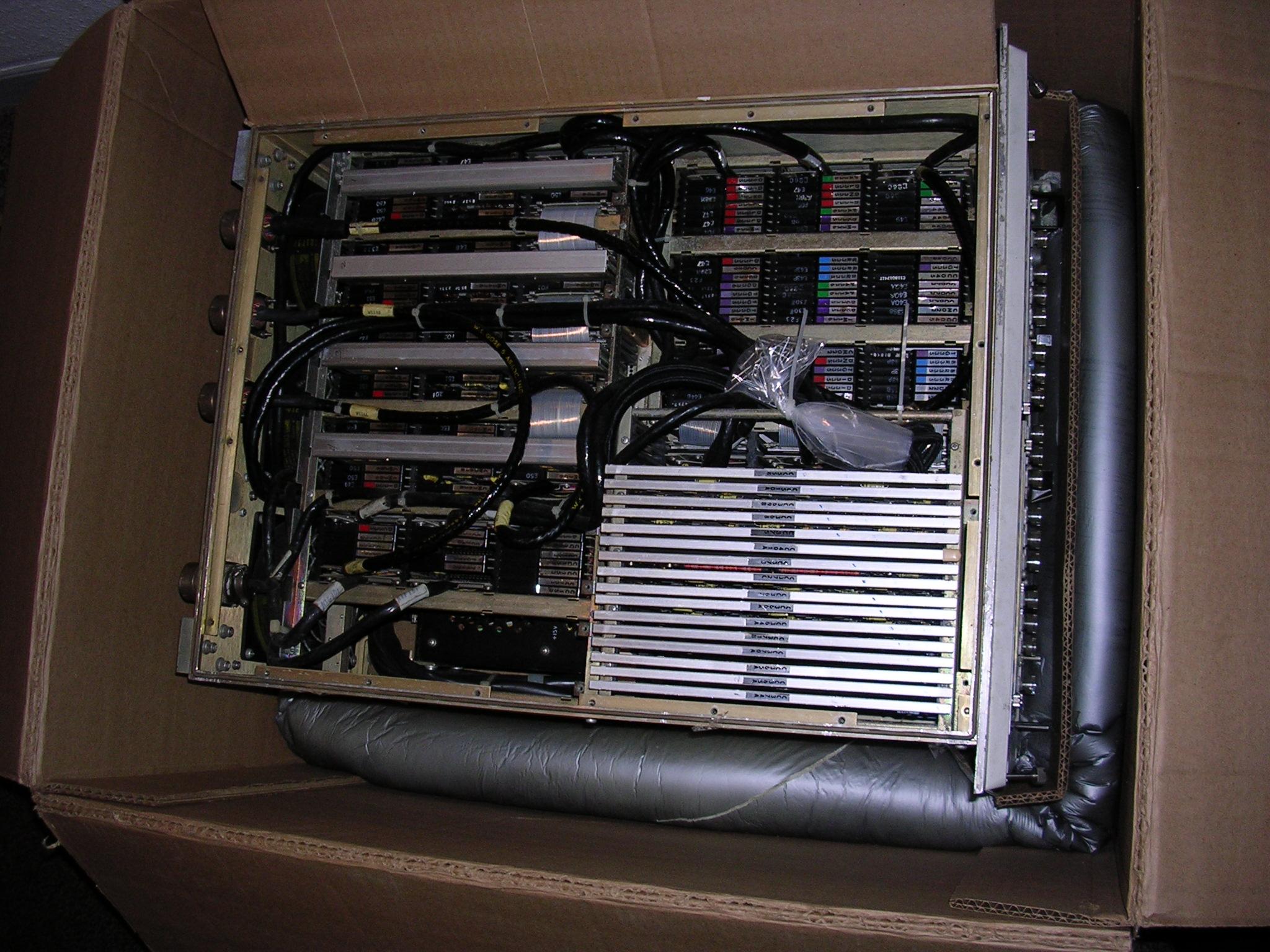

First view of the machine. Wow! It's cleaner than my first one! Has anybody seen a H316 CPU with all 16 cards before? | |
 1024x768 Full size |

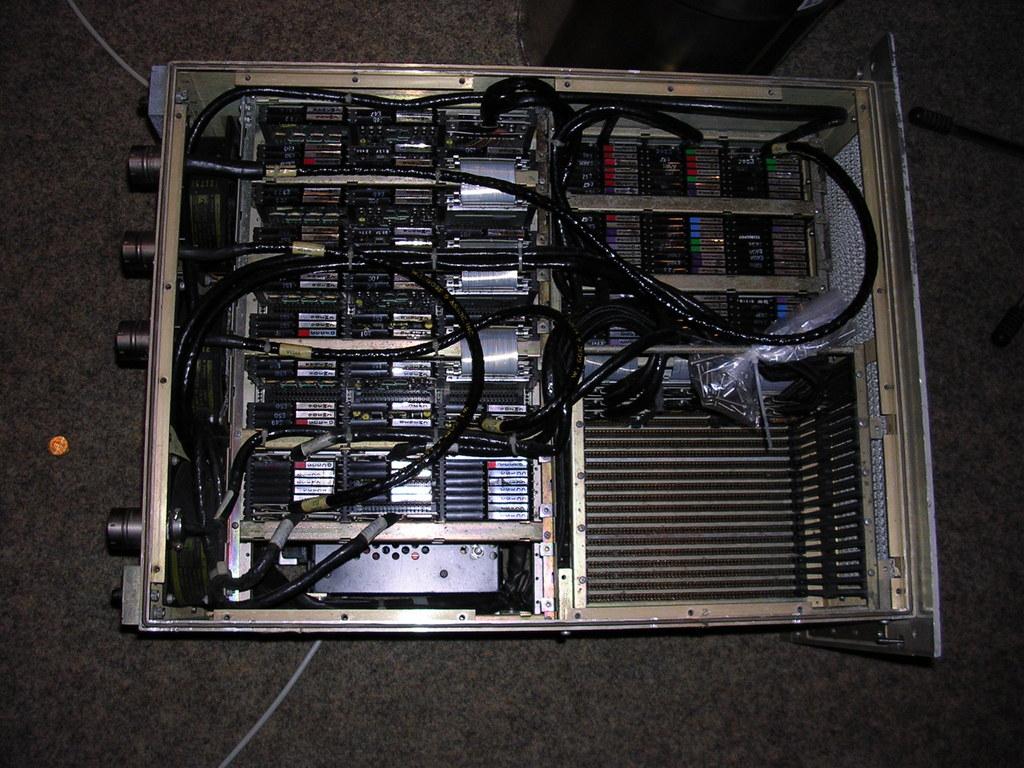

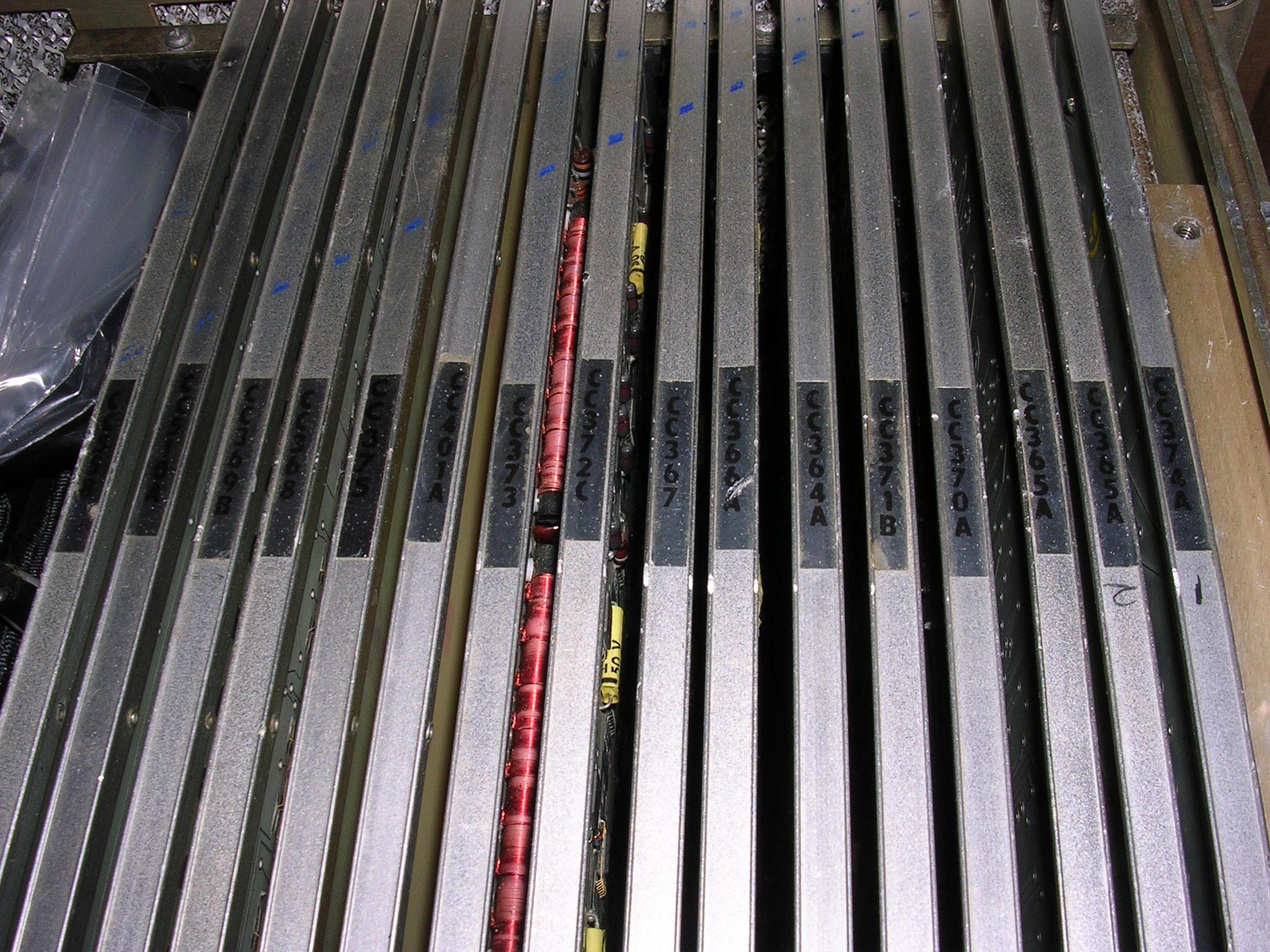

The four memory modules, back in place. At the left there's a peripheral I have not yet identified. Help! | |
 1024x768 Full size |
This big block is also still unidentified. If someone has a clue what it could be... On the backplane is written "IOW". Please help! | |
 1024x768 Full size |

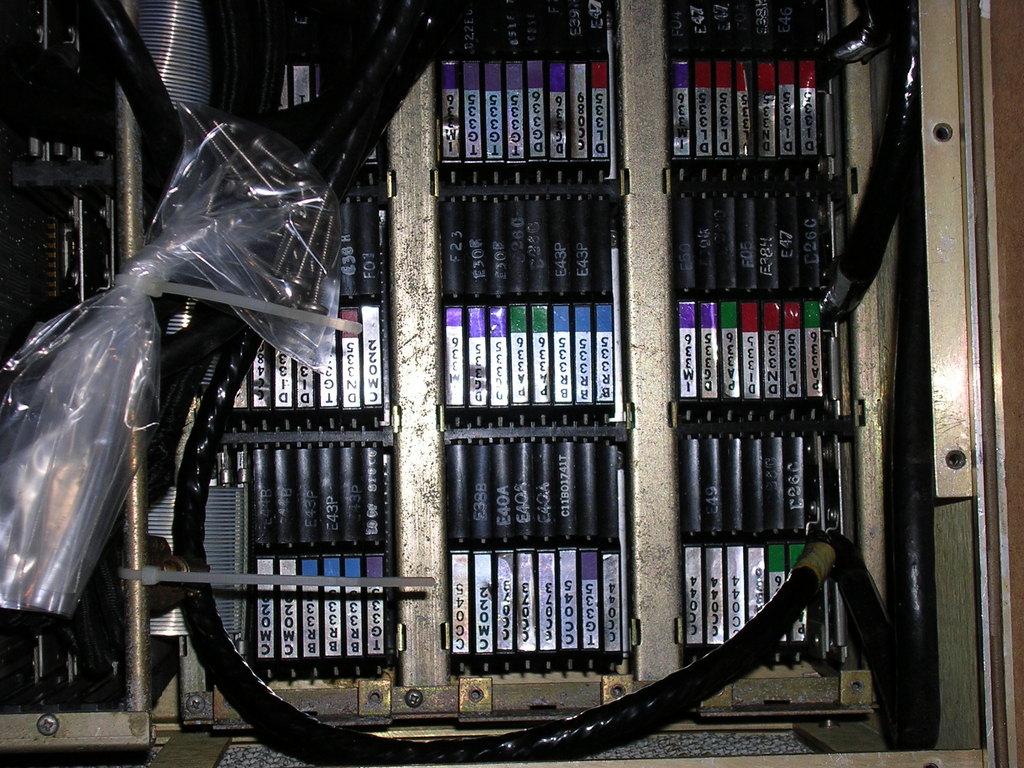

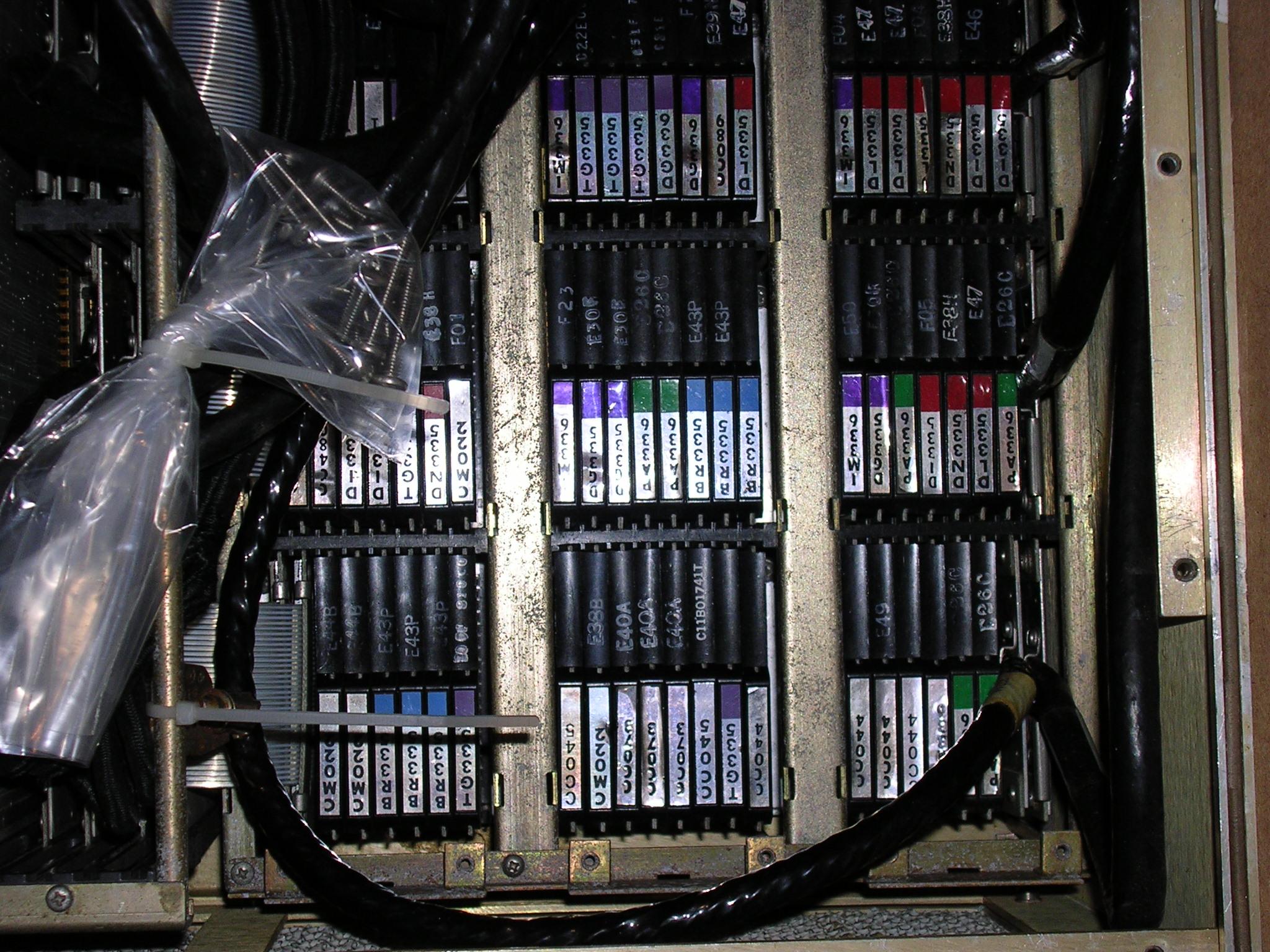

The card cage. Complete.. :-) | |
 1024x768 Full size |

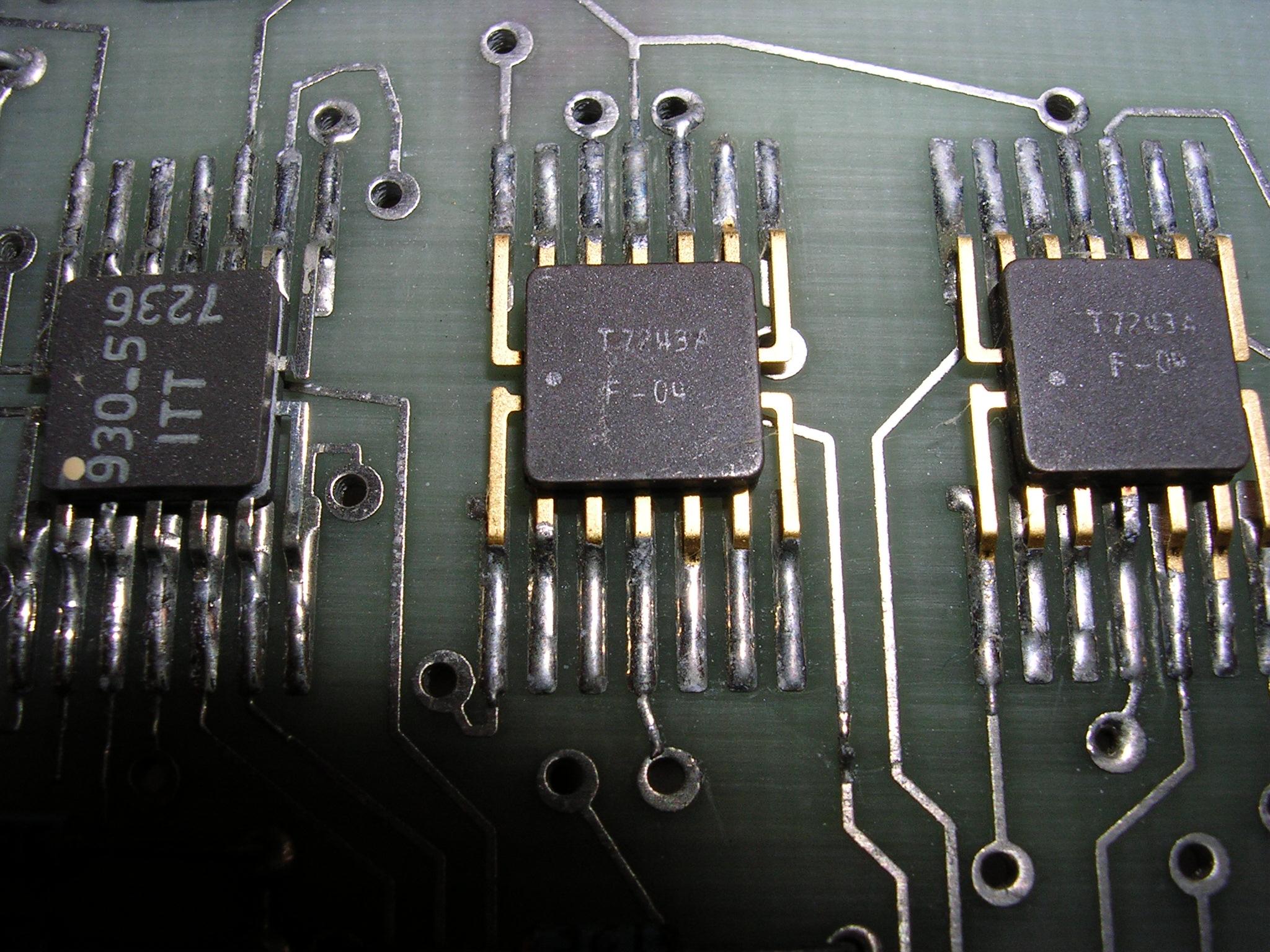

The ASR interface. One F-04 chip is physically damaged. Who can help me with spares? I don't have another F-04 chip. Or should I try to rebond it??? Hm..... | |
 1024x768 Full size |

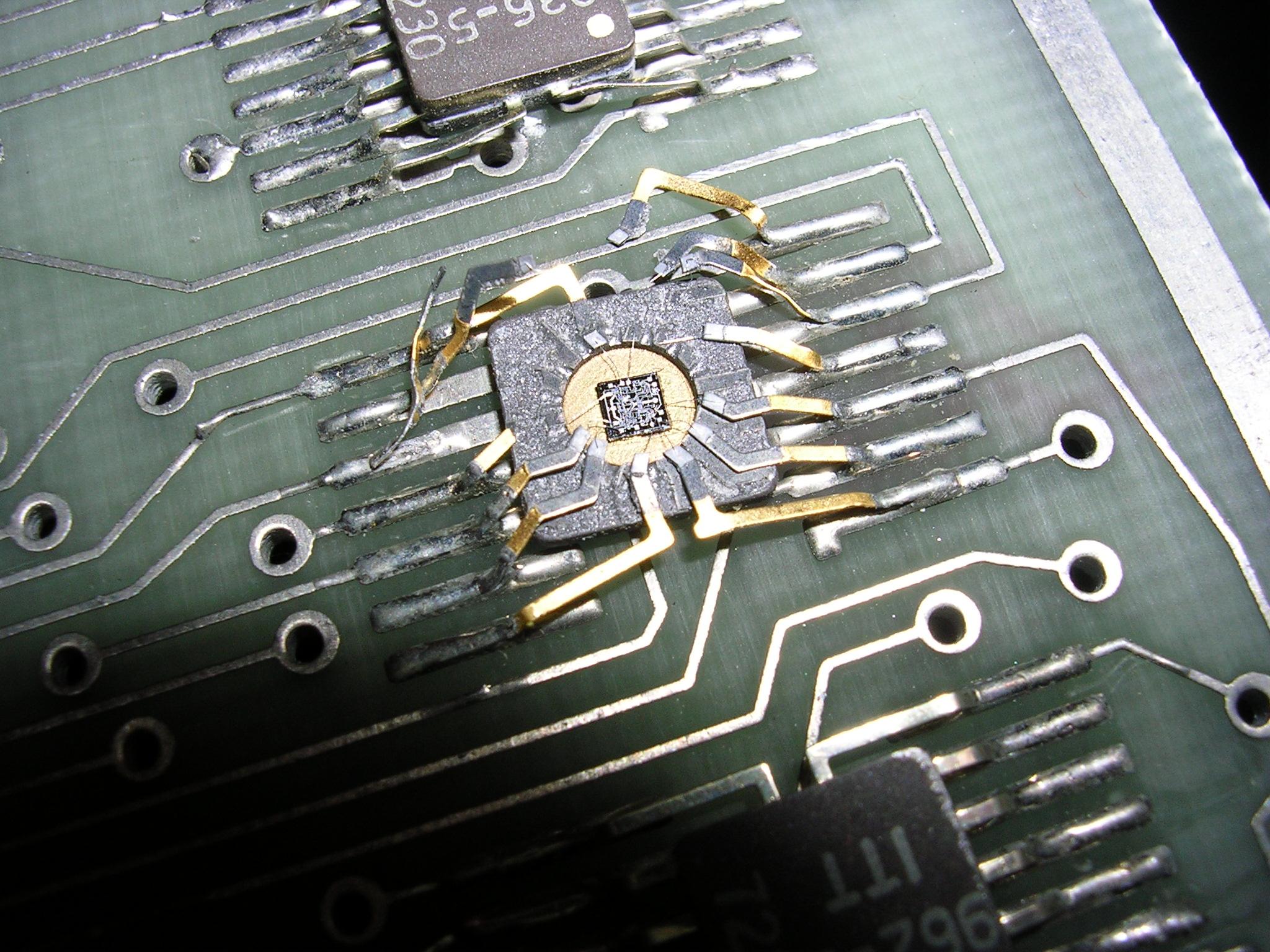

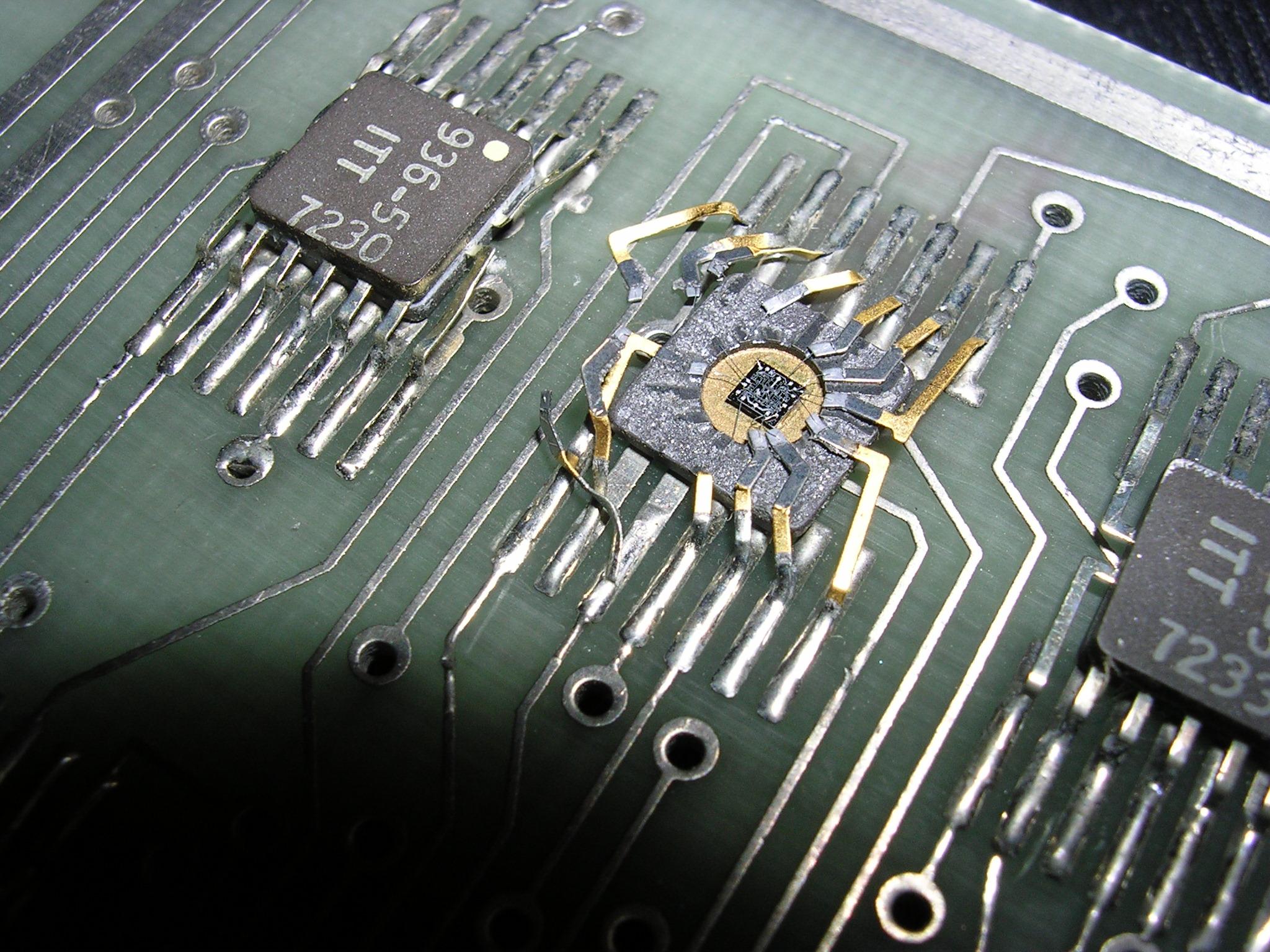

See the "microcircuit"... I'm sure that a hardware designer with a microscope can simply draw the schematic of this chip by simply looking at it. Nice! | |
 1024x768 Full size |
That's the way the IC looked BEFORE something destroyed it. | |
 1024x768 Full size |

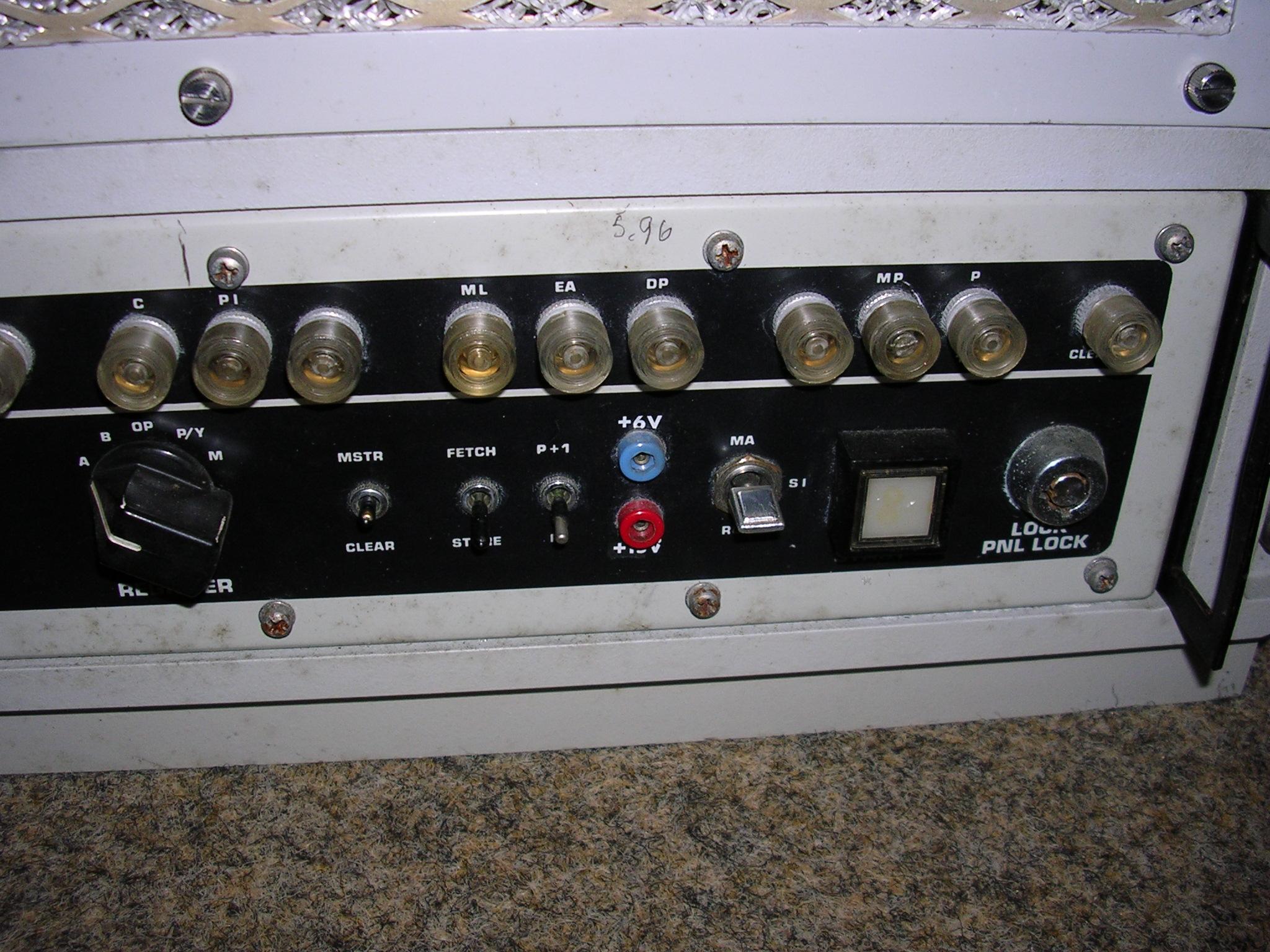

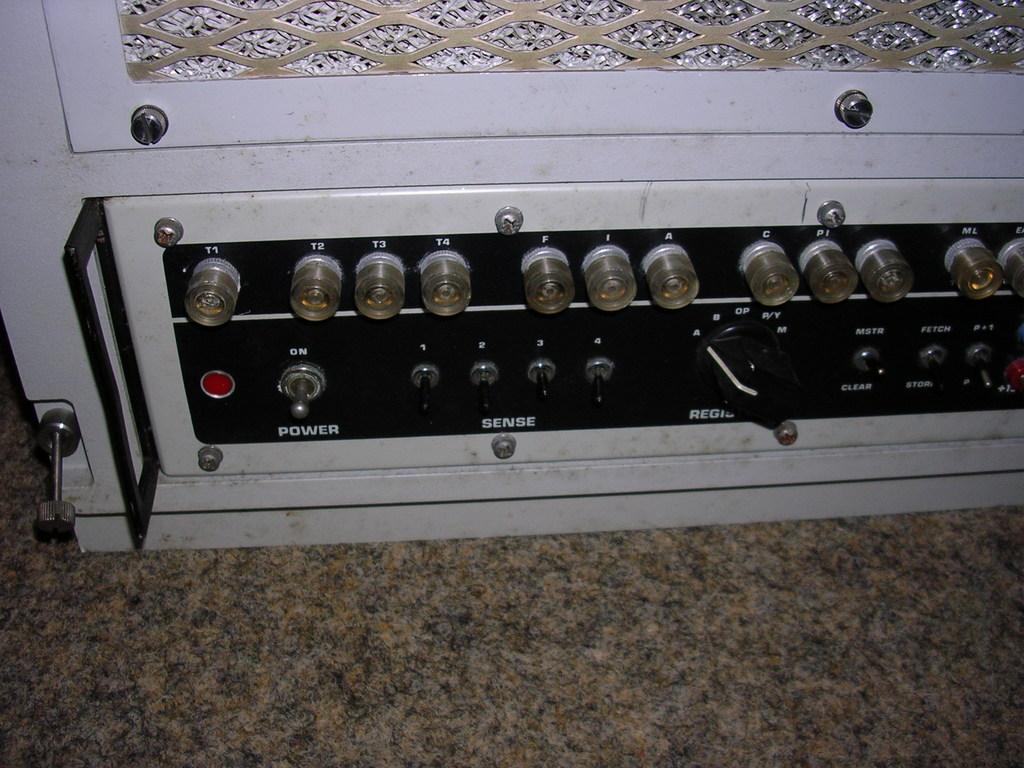

The front panel at home. Andre has wisely removed the original sticker before shipping. The sticker (look above) told about the military origin of the machine. Perhaps not too good for highly motivated customs staff... | |
 1024x768 Full size |
Another kind of not easy to replace bulbs... | |
 1024x768 Full size |
I think that the power taps are not original. But now they're there. And they don't look awful. So they'll stay. | |
 1024x768 Full size |

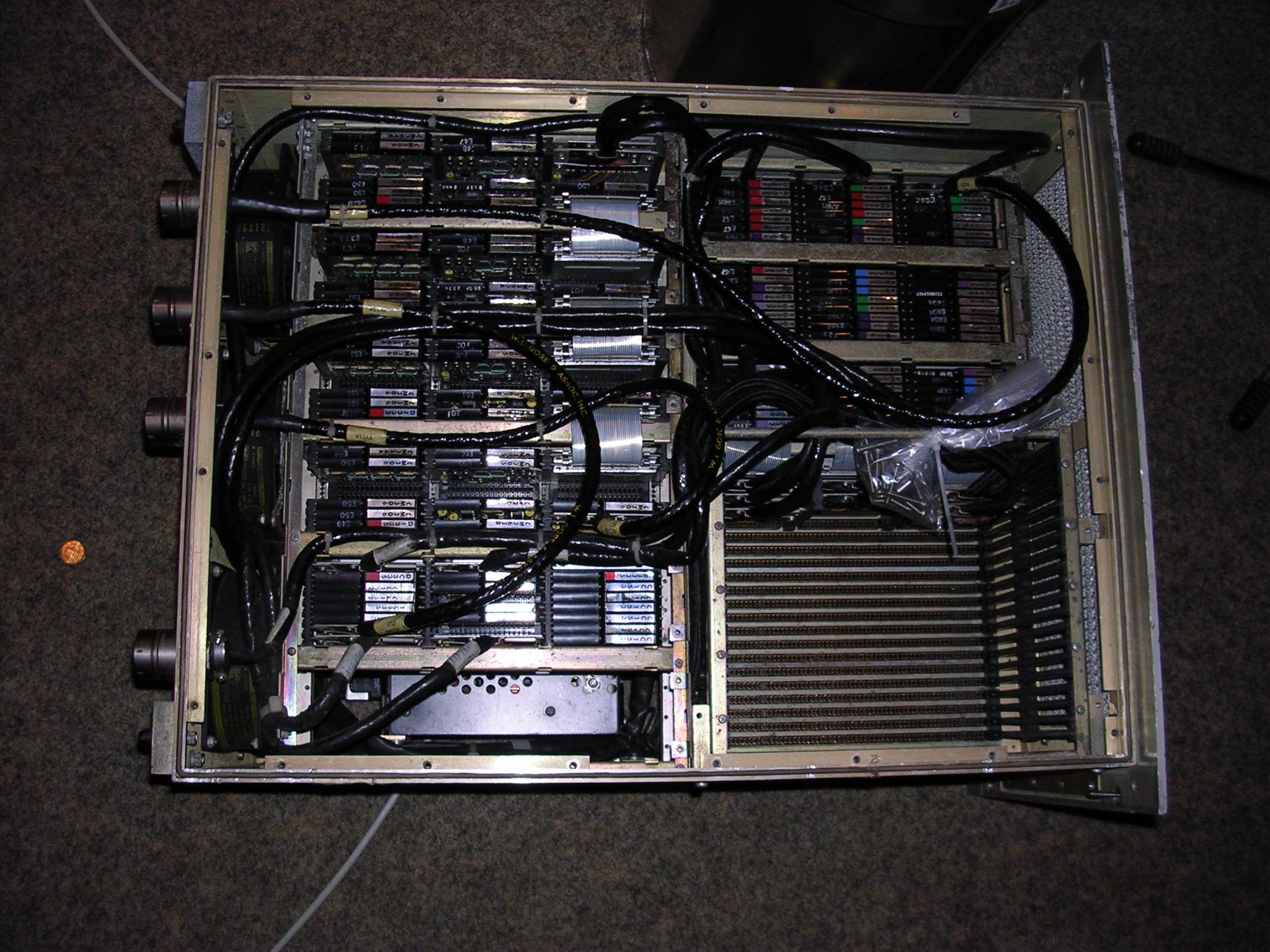

Top of the machine with CPU cards and memory removed. The parts were just successfully performing CCT4 processor test while the photograph was taken. | |
 1024x768 Full size |

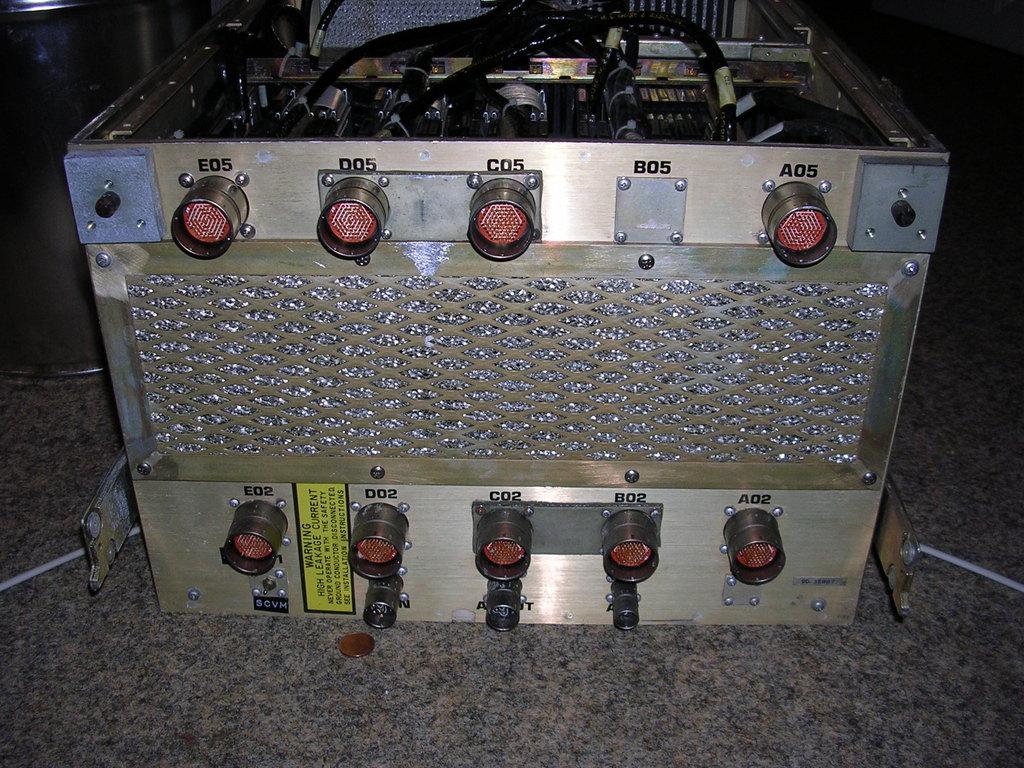

The backside. Cool connectors. I think I will remove all of them because it will be impossible to find these connectors. And IF they can be found - they still can't be paid, I'm sure. But I will keep them safely, of course :-) | |
