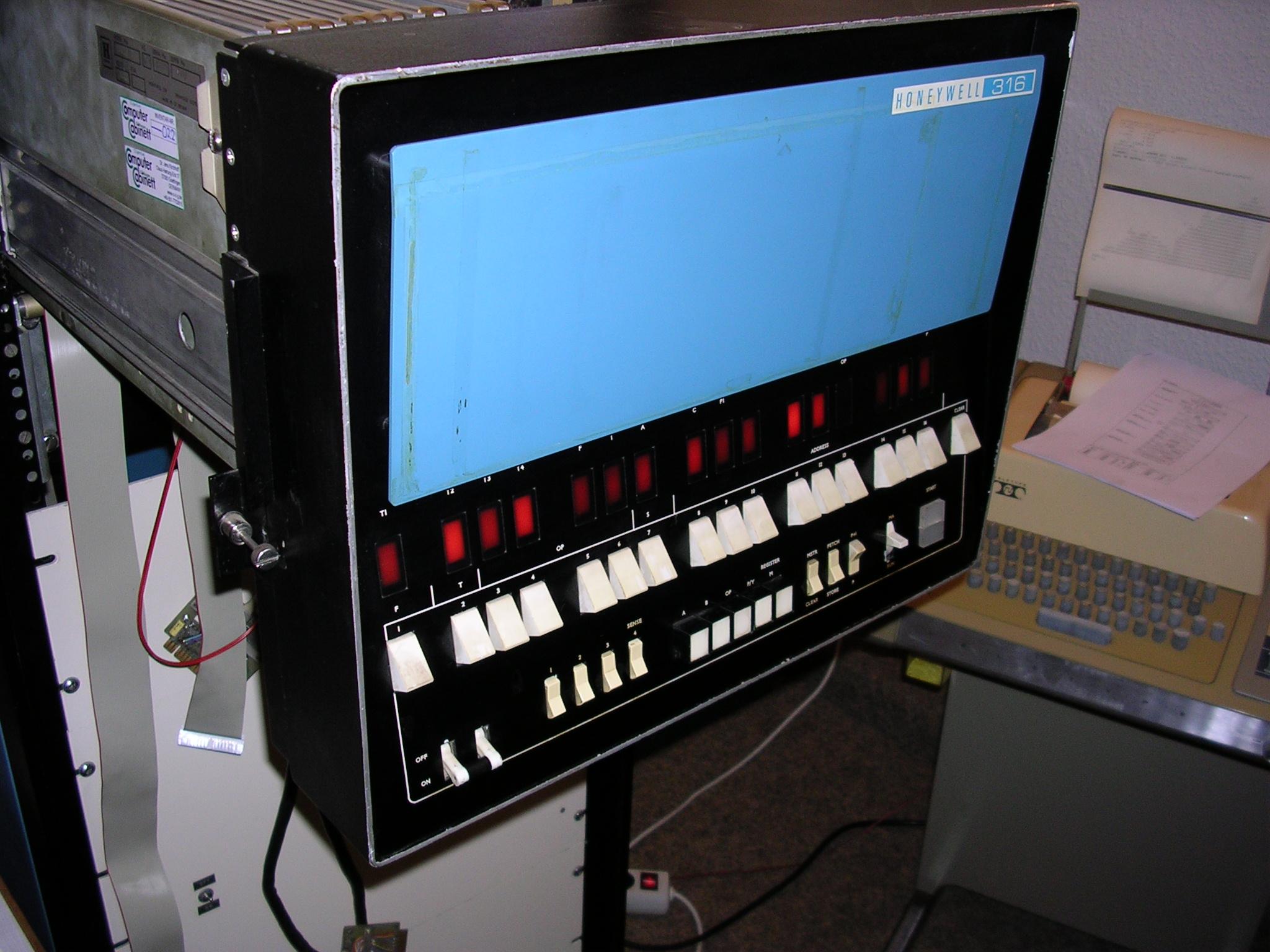

 1024x768 Full size |

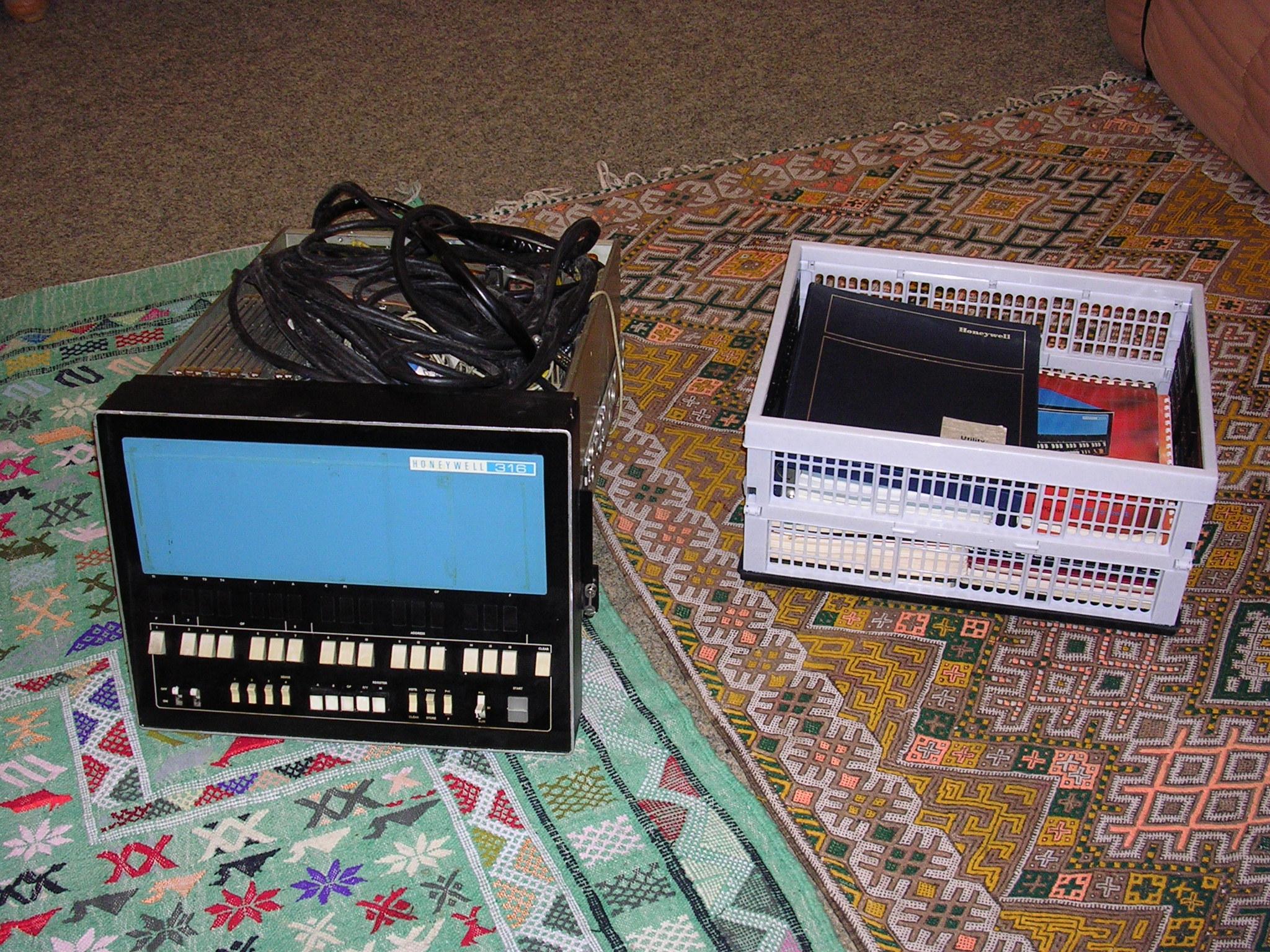

That's all that dropped in from Göttingen. | |
 1024x768 Full size |

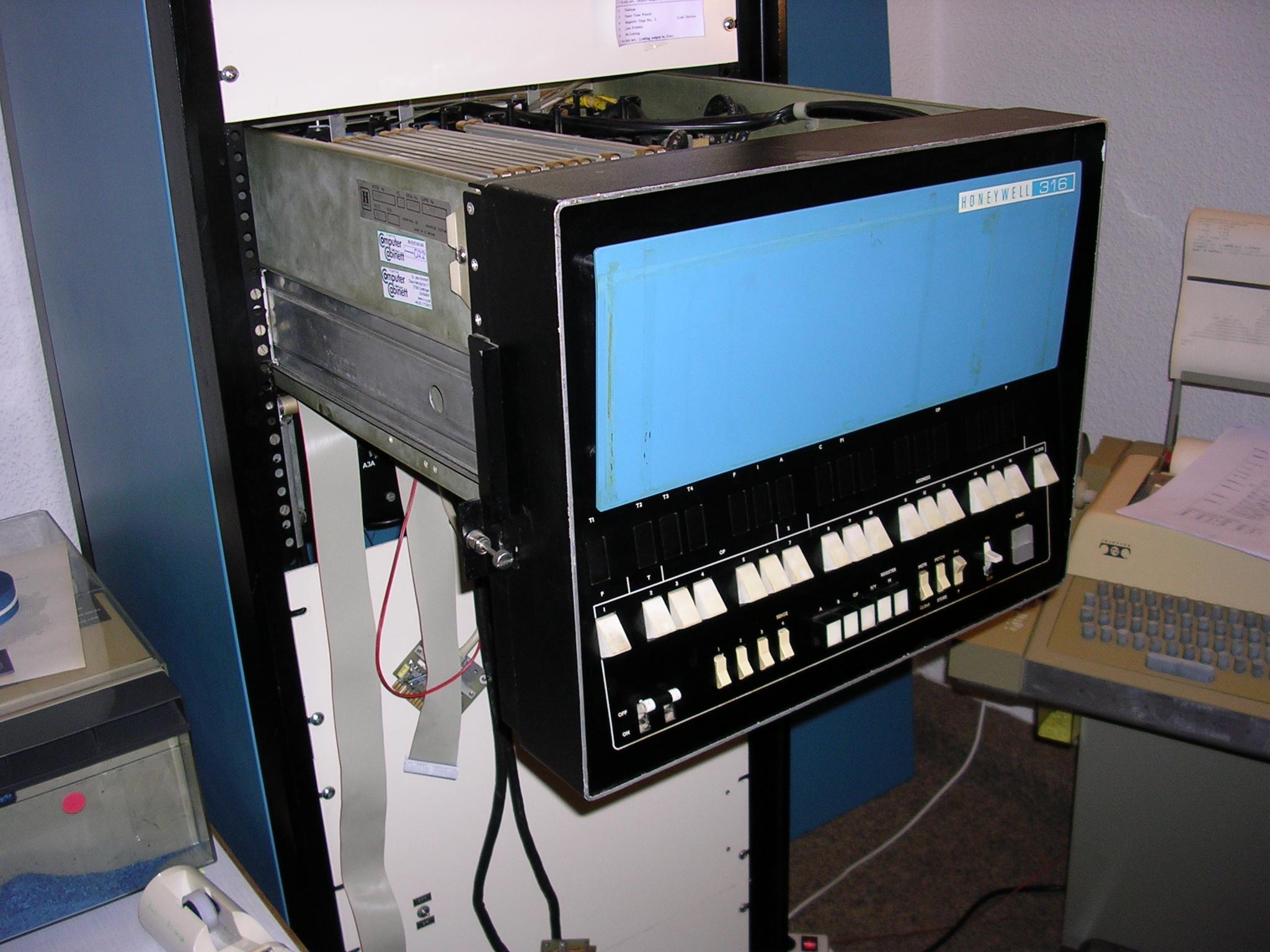

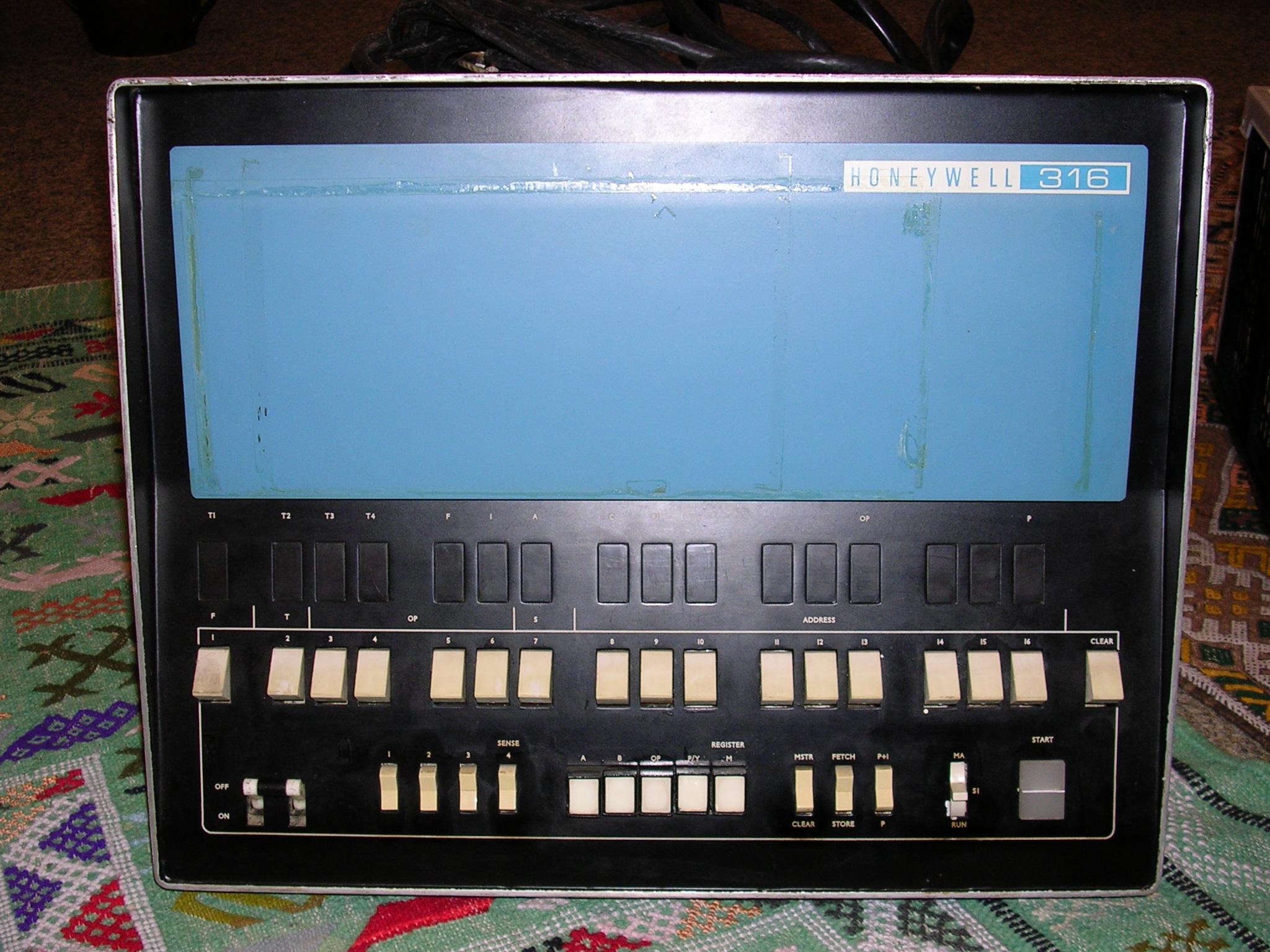

The very used front panel. How do I remove the scotch tape adhesive? | |
 1024x768 Full size |

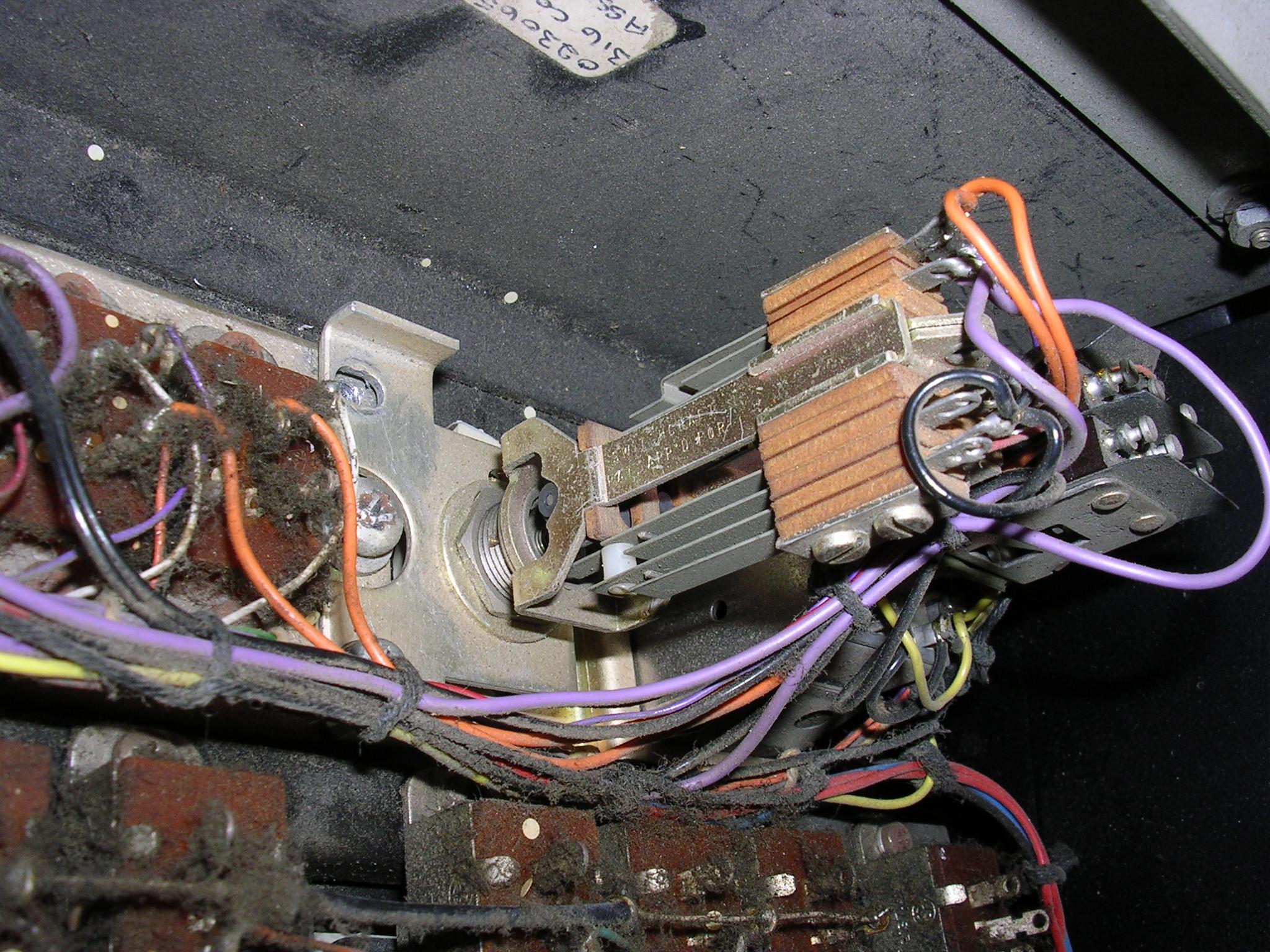

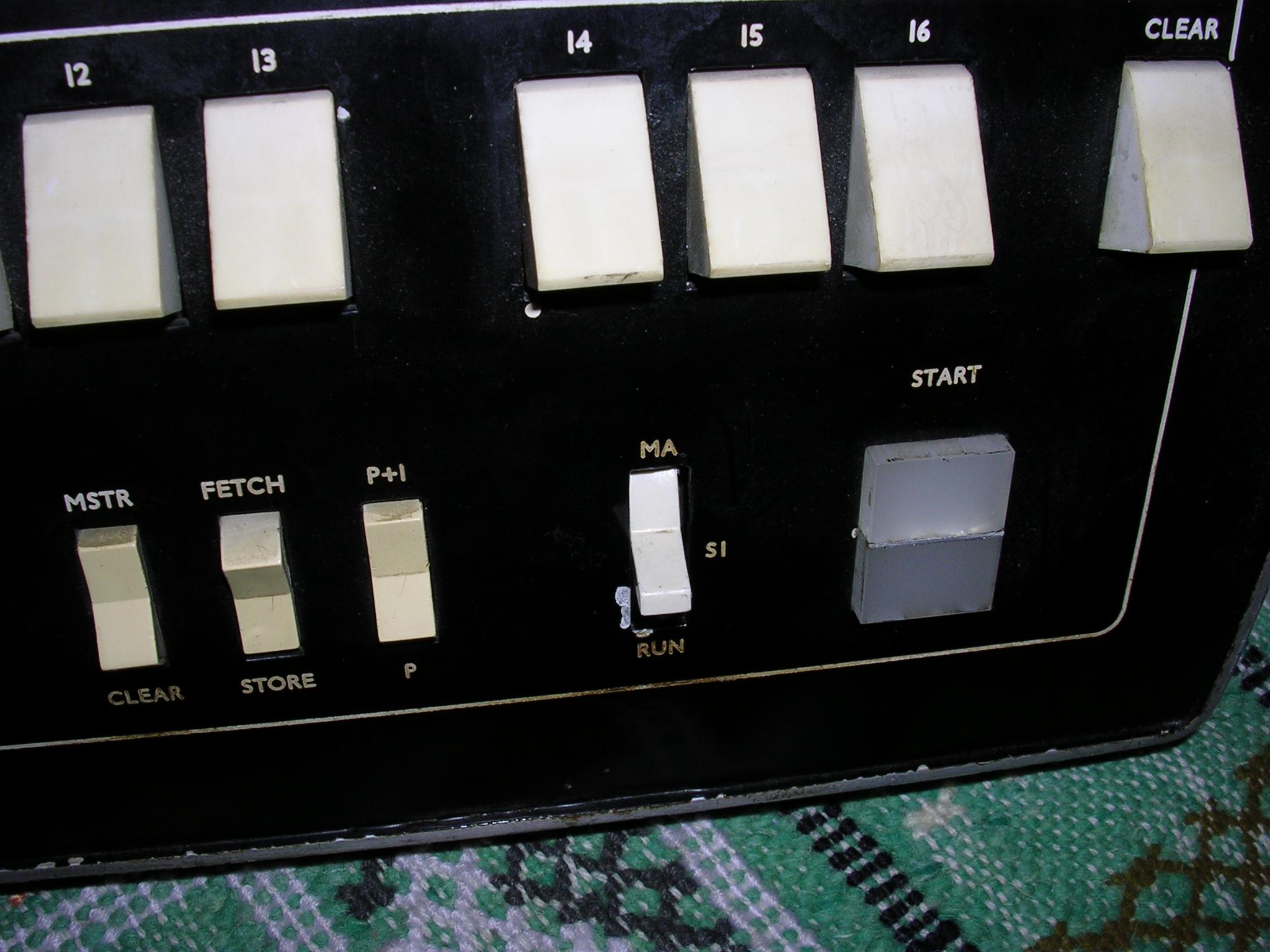

The MA/SI/RUN switch is bent. | |
 1024x768 Full size |

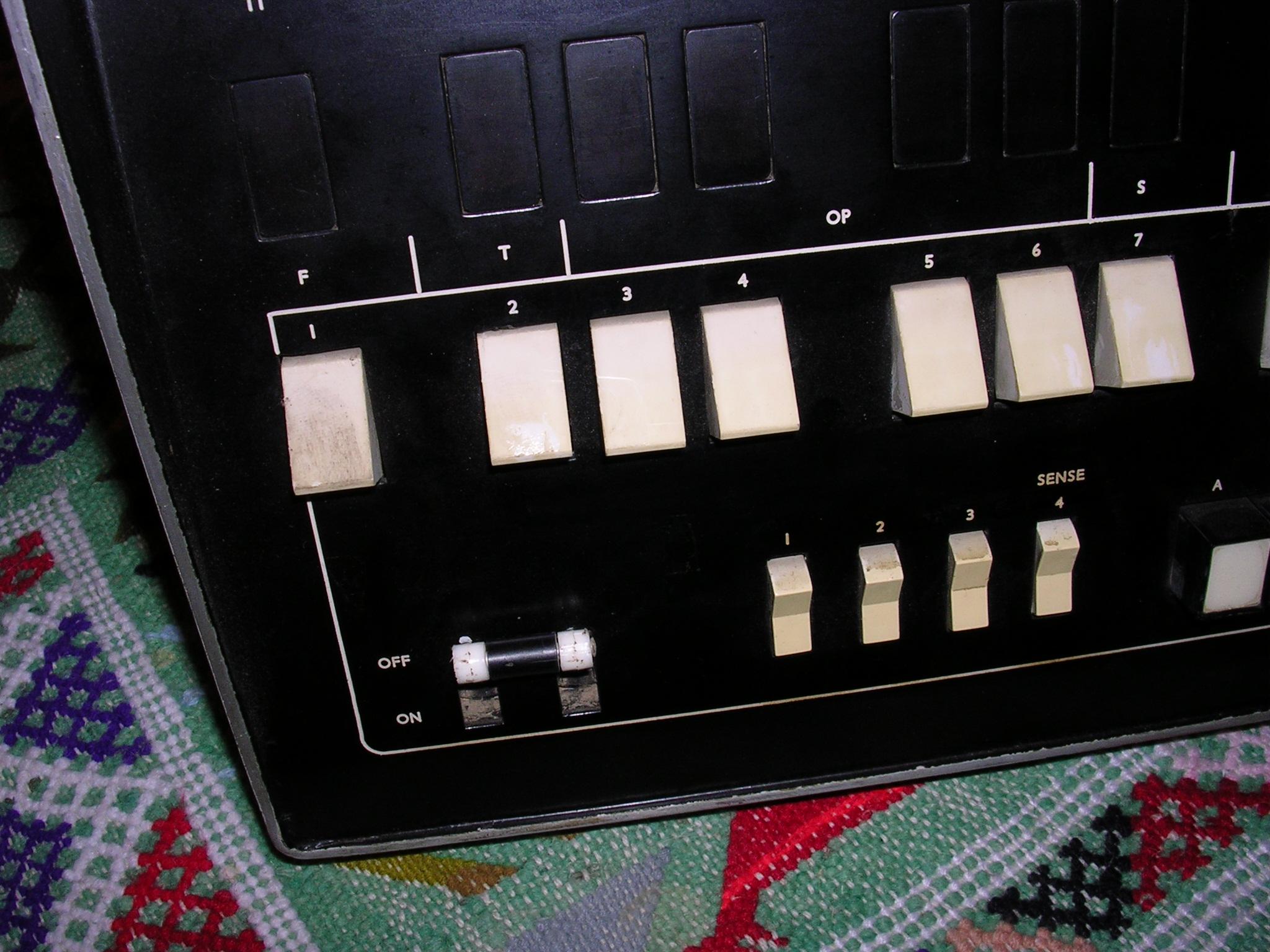

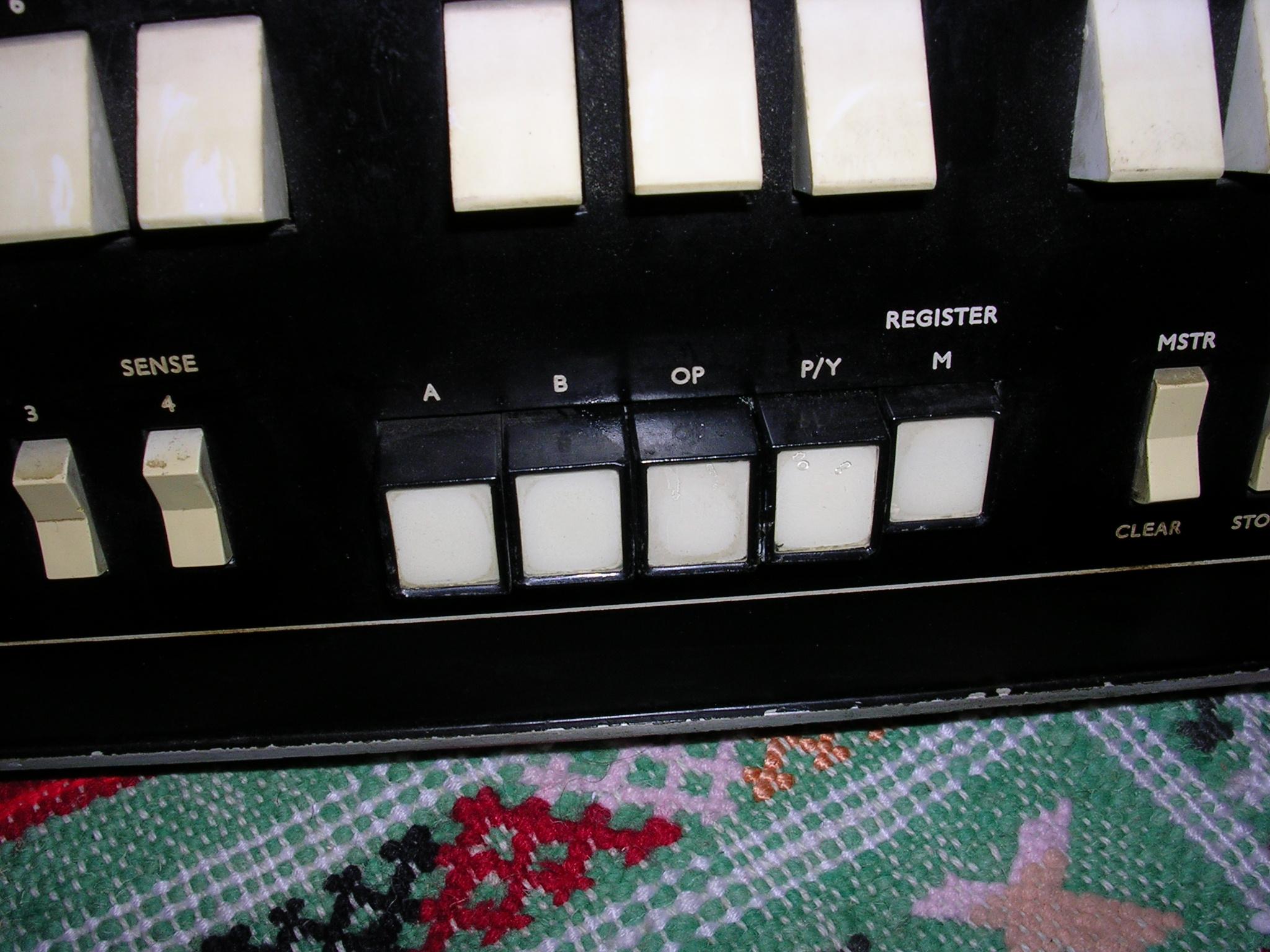

Register select switches different from my H316 | |
 1024x768 Full size |
Black Power switch | |
 1024x768 Full size |

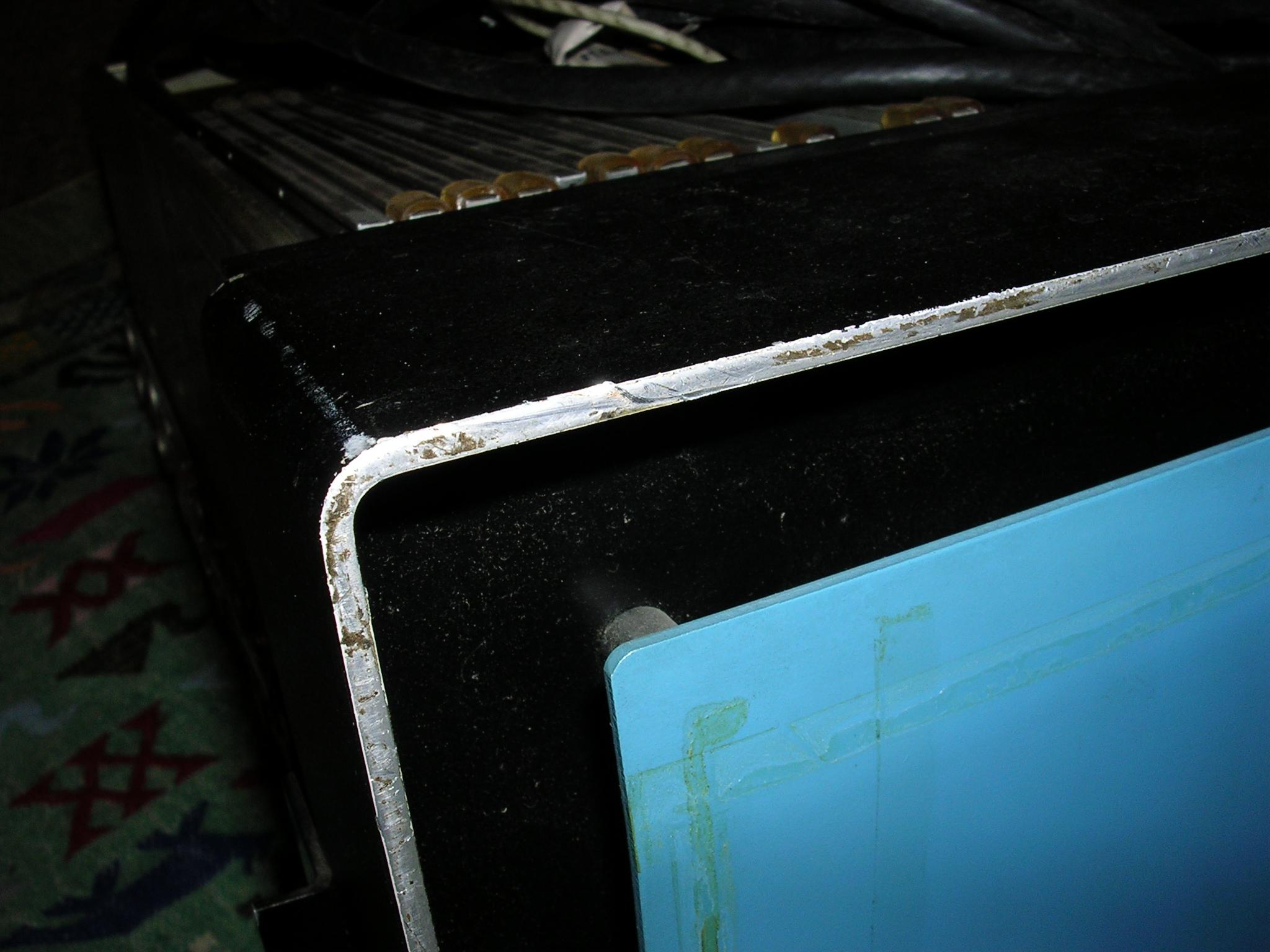

Worn front panel edge | |
 1024x768 Full size |

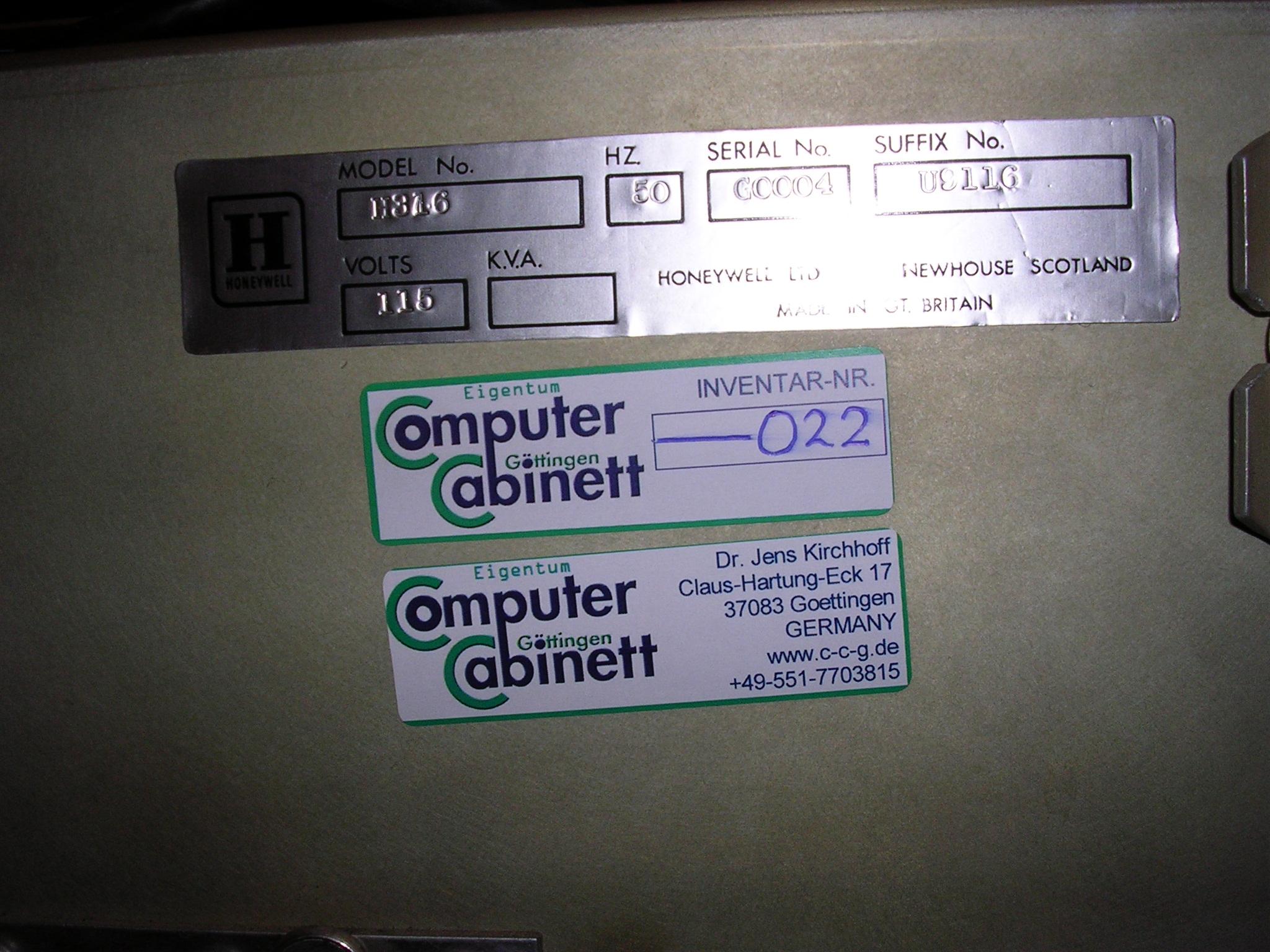

The machine's type plate. Below are the CCG's inventory labels. | |
 1024x768 Full size |

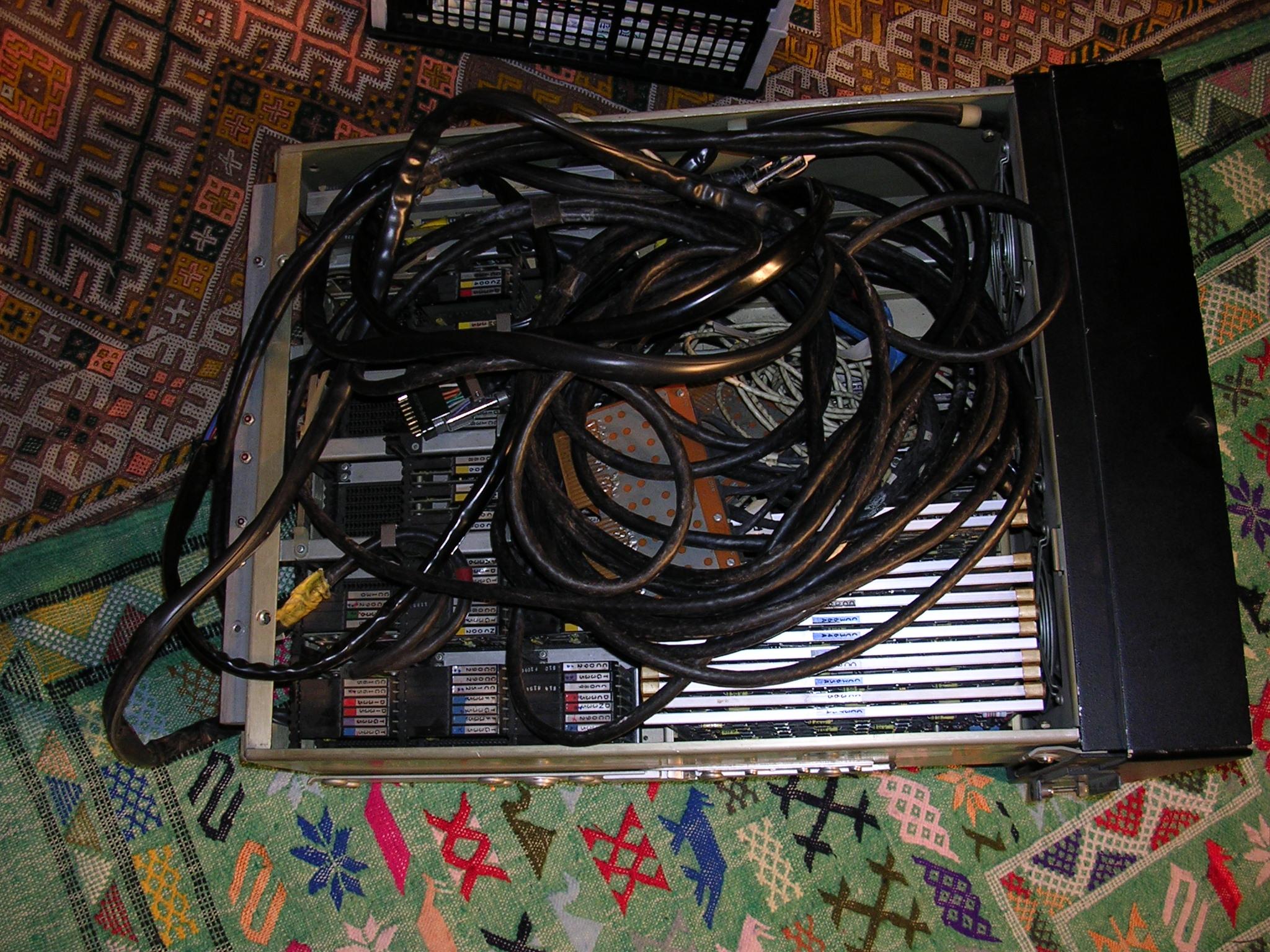

From top | |
 1024x768 Full size |

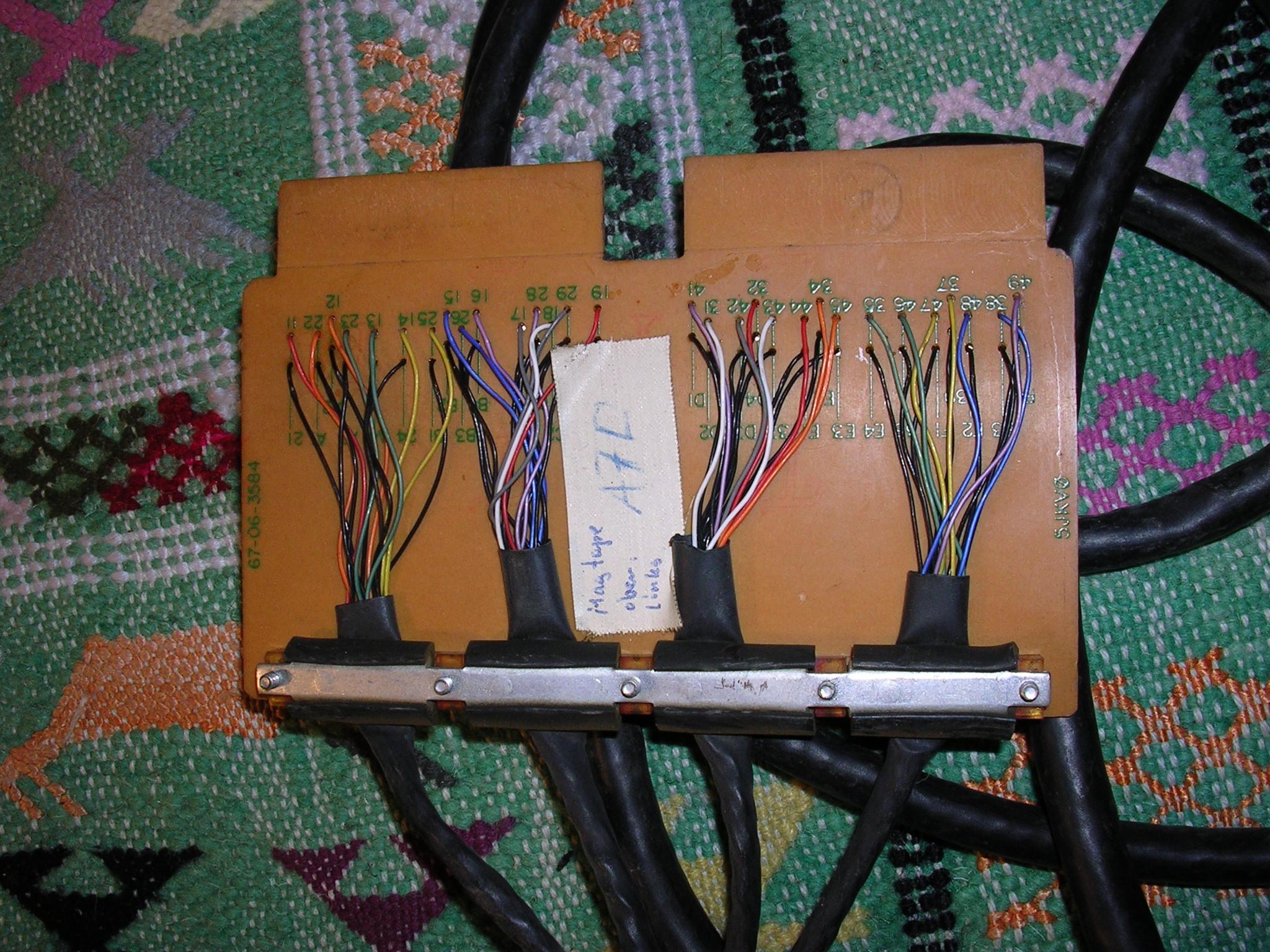

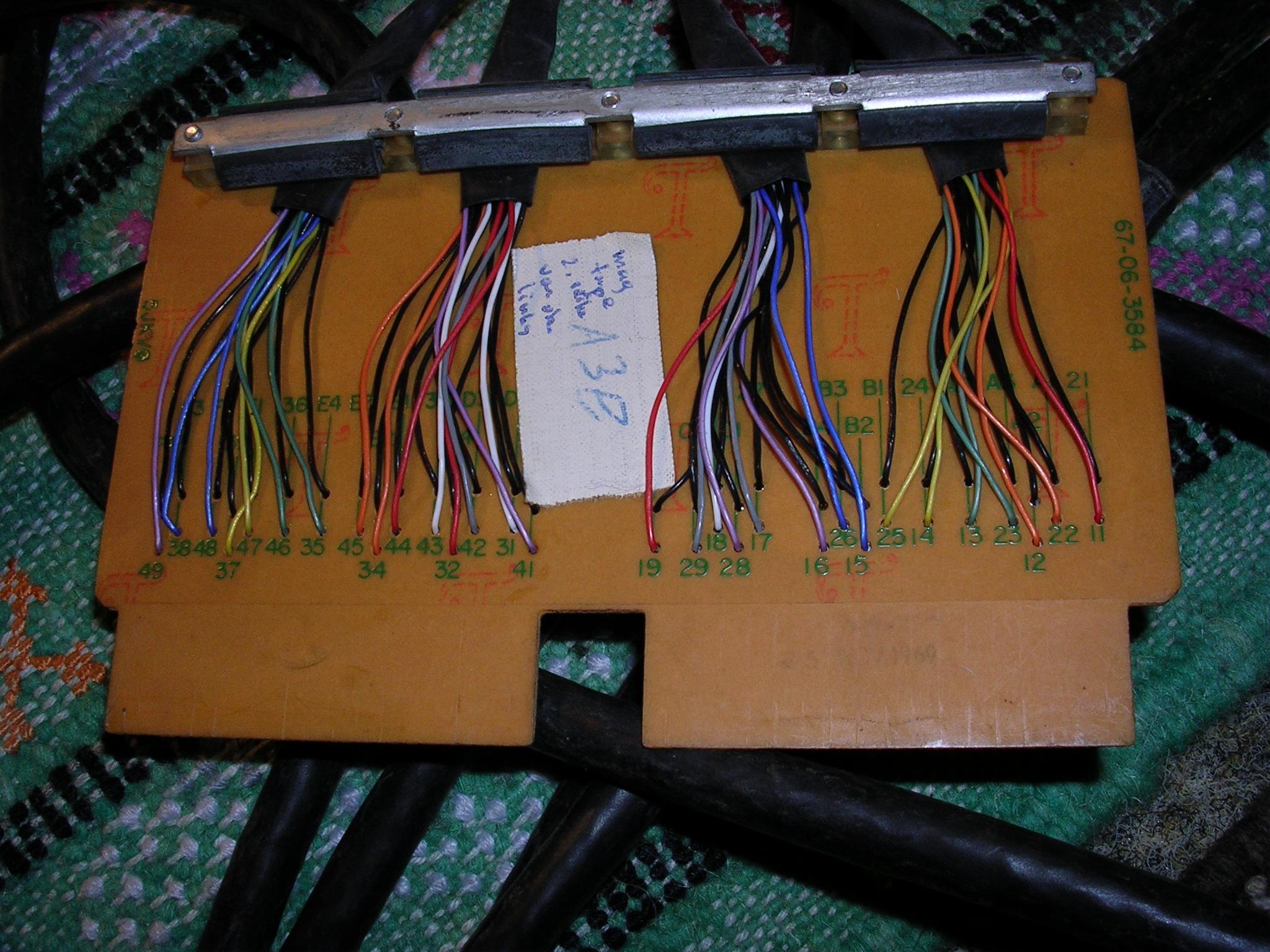

Interface cable which plugs into the Mag tape drive. | |
 1024x768 Full size |

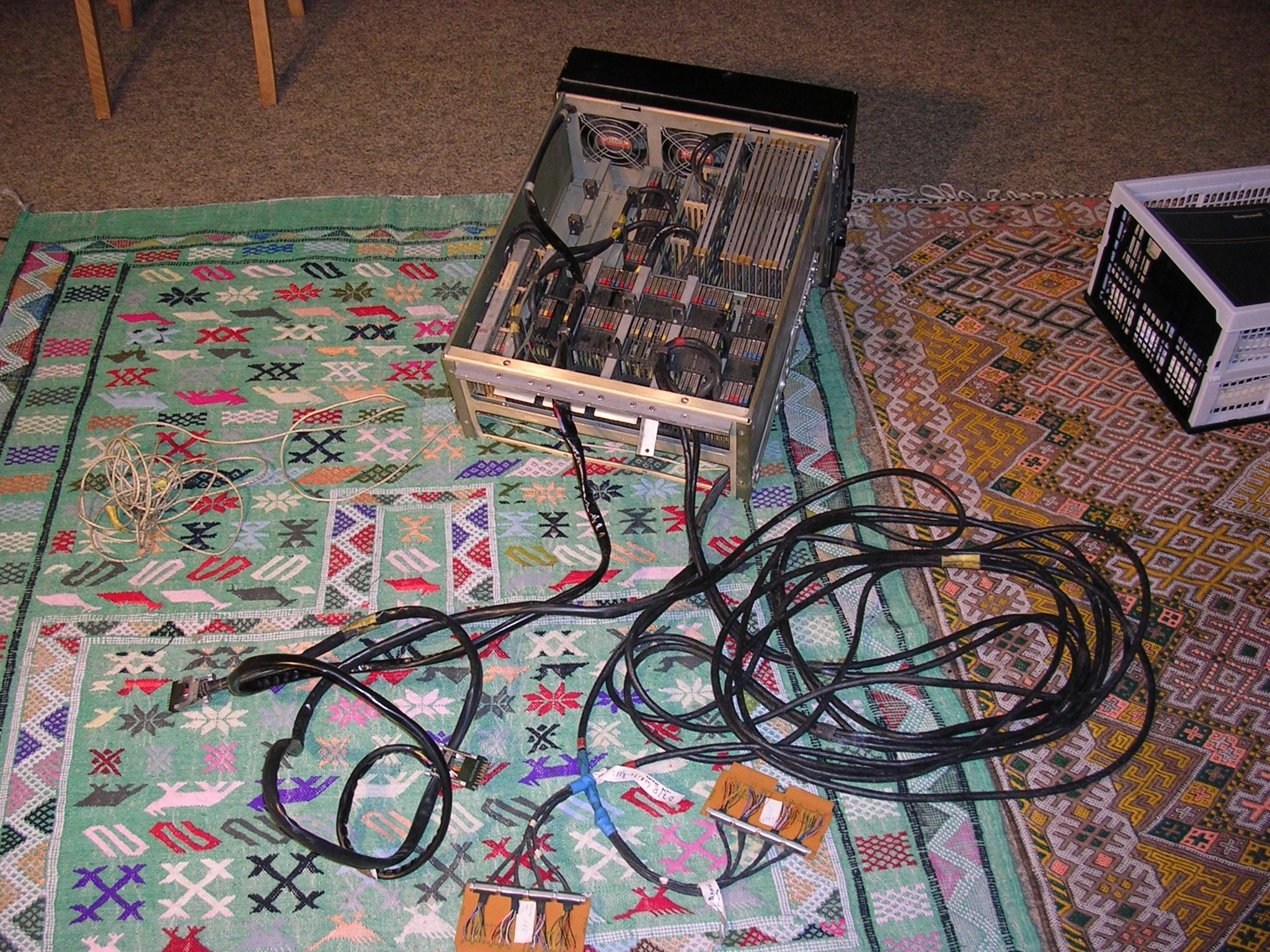

No description. | |
 1024x768 Full size |

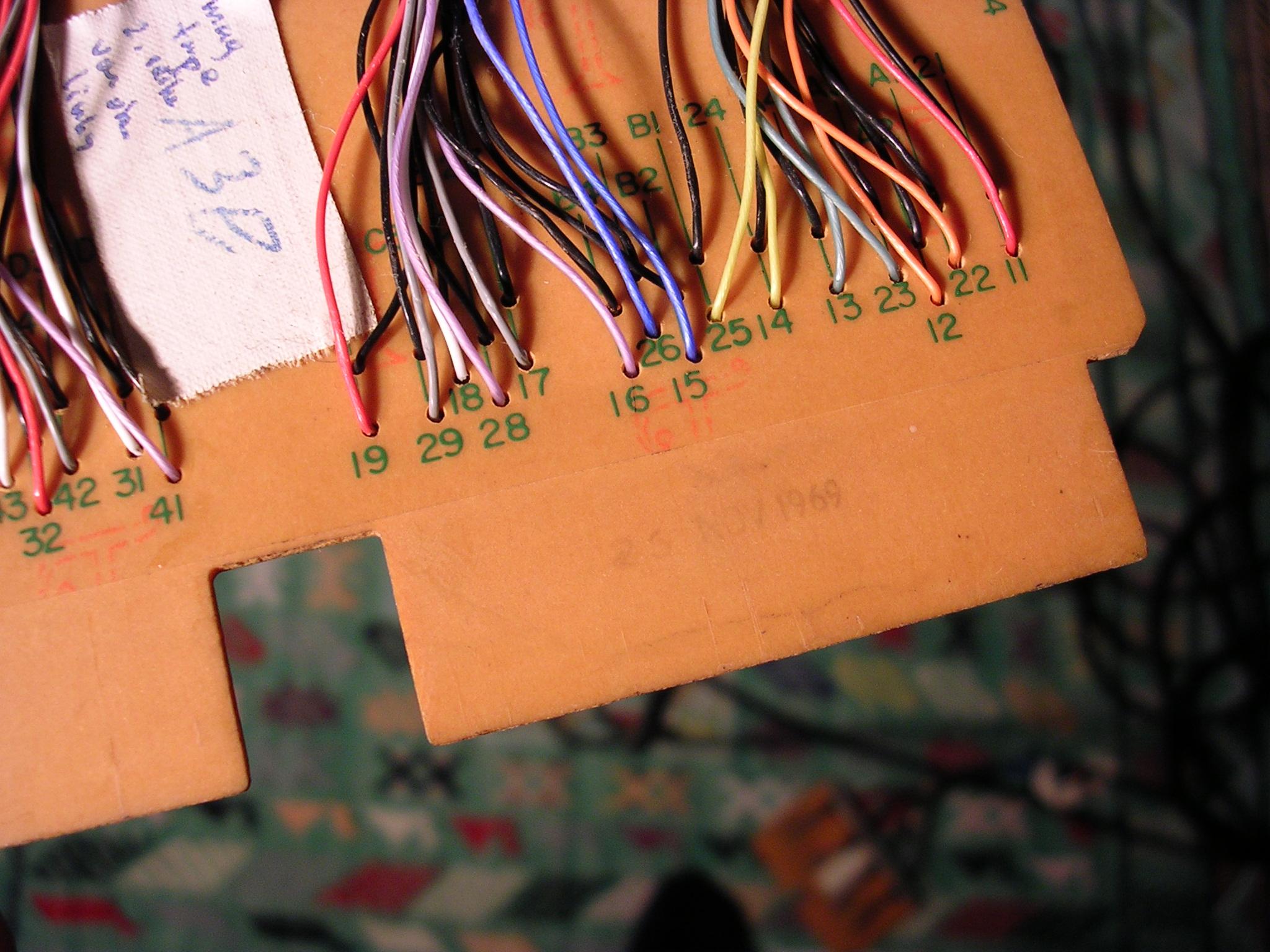

Do you see the date? | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |

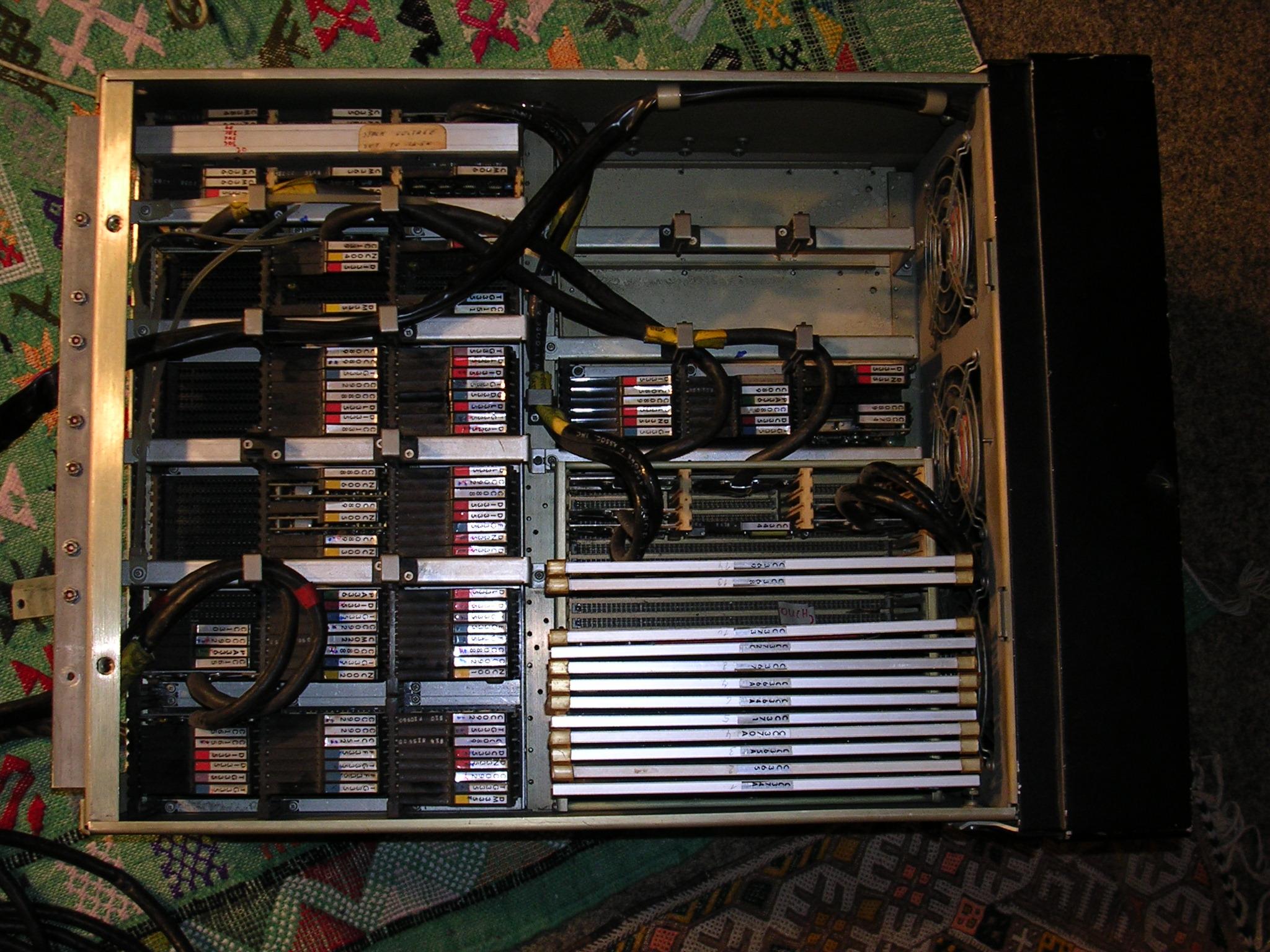

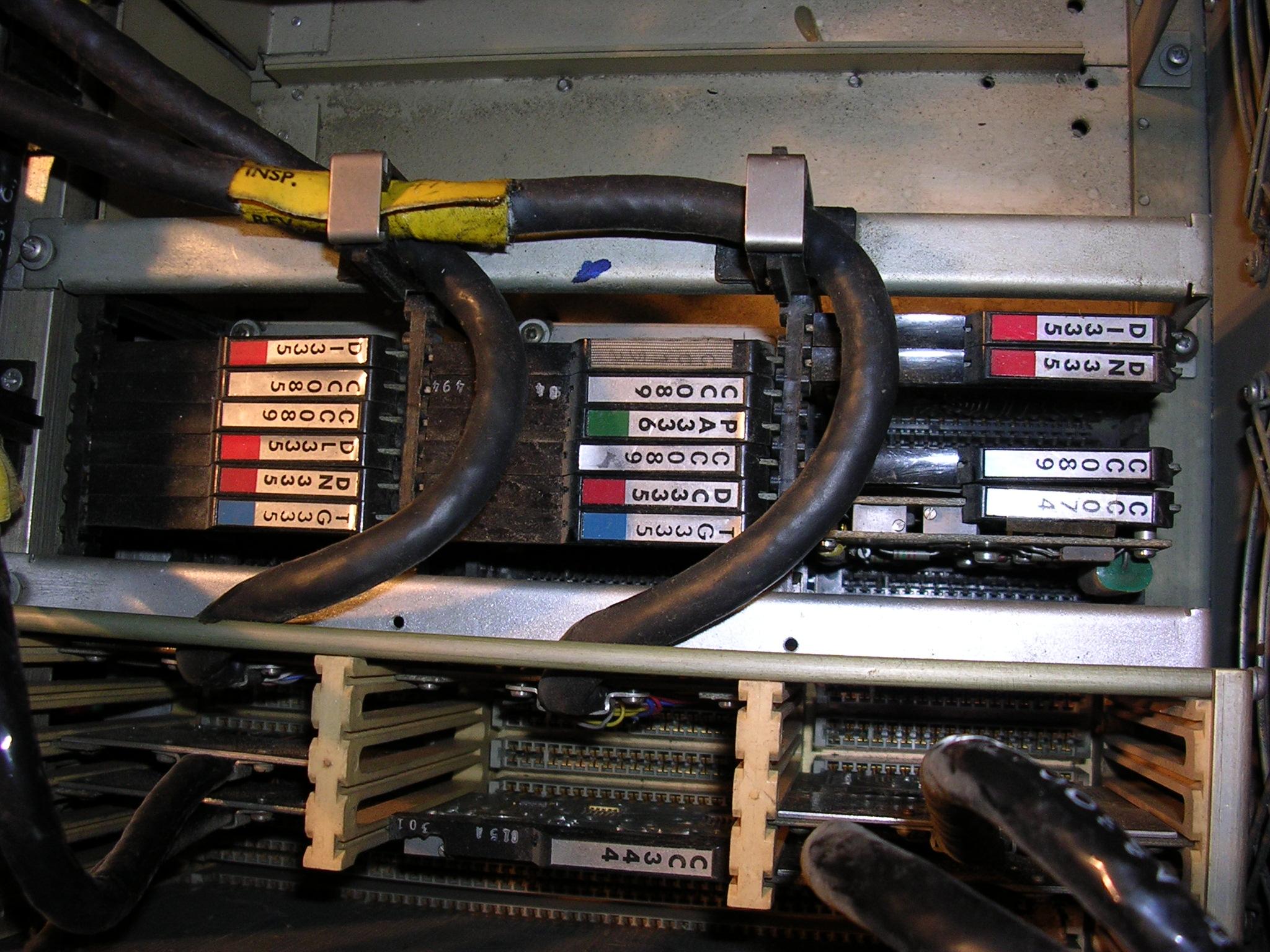

In the lower right corner (big PCBs) you see the CPU. In the upper left corner is the core memory (4K only) and all below is the mag tape controller. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |

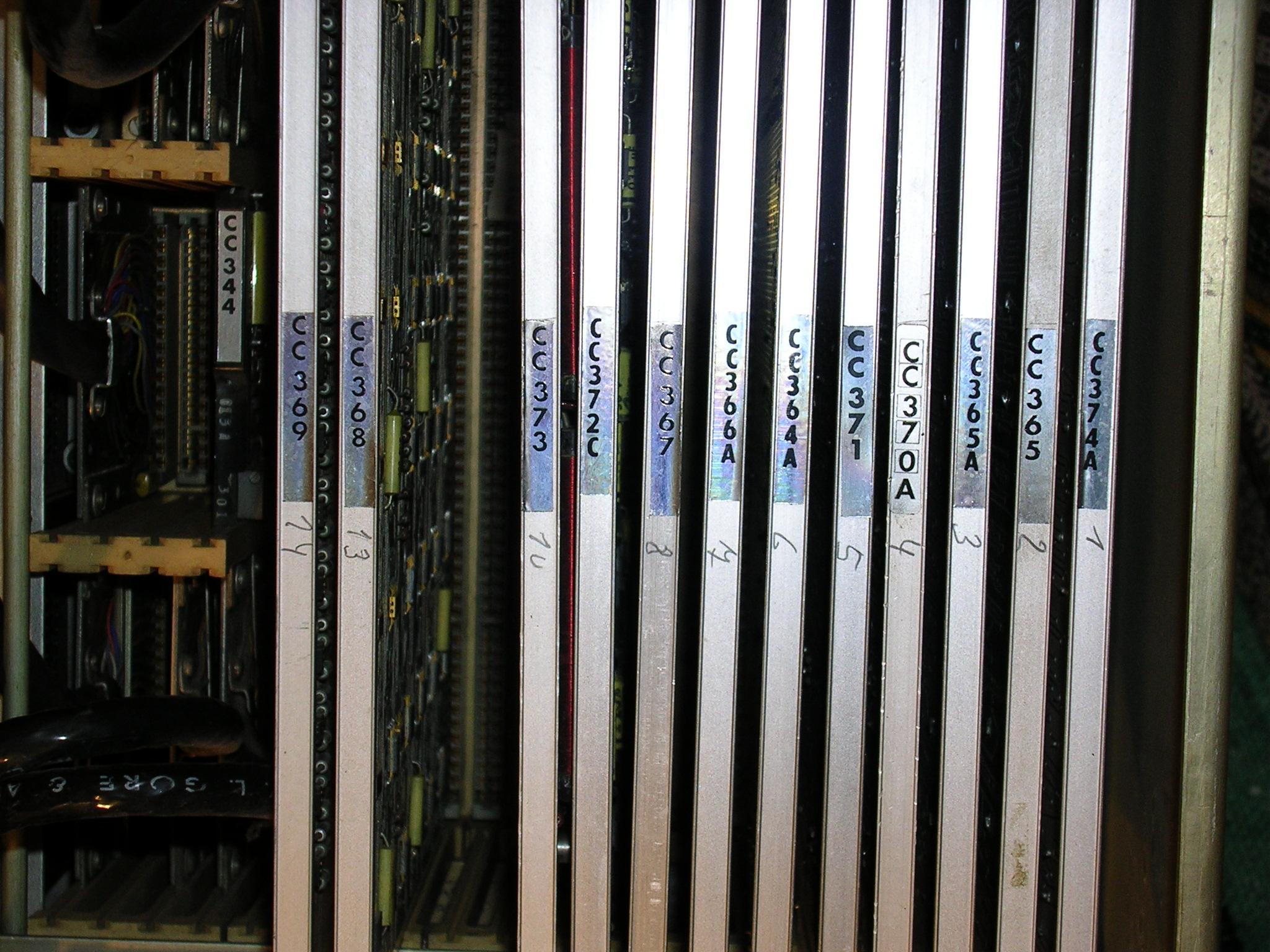

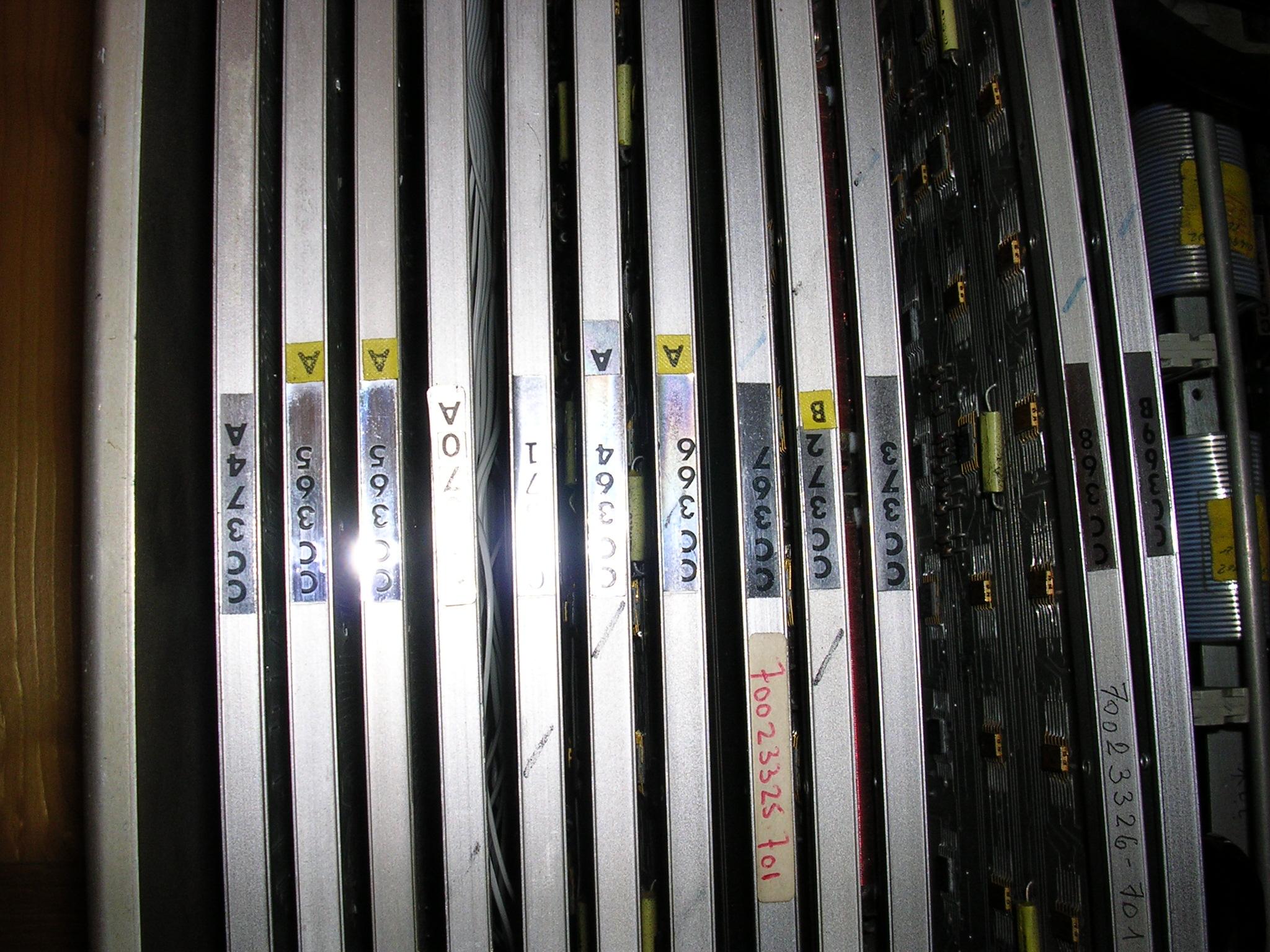

The CPU boards | |
 1024x768 Full size |

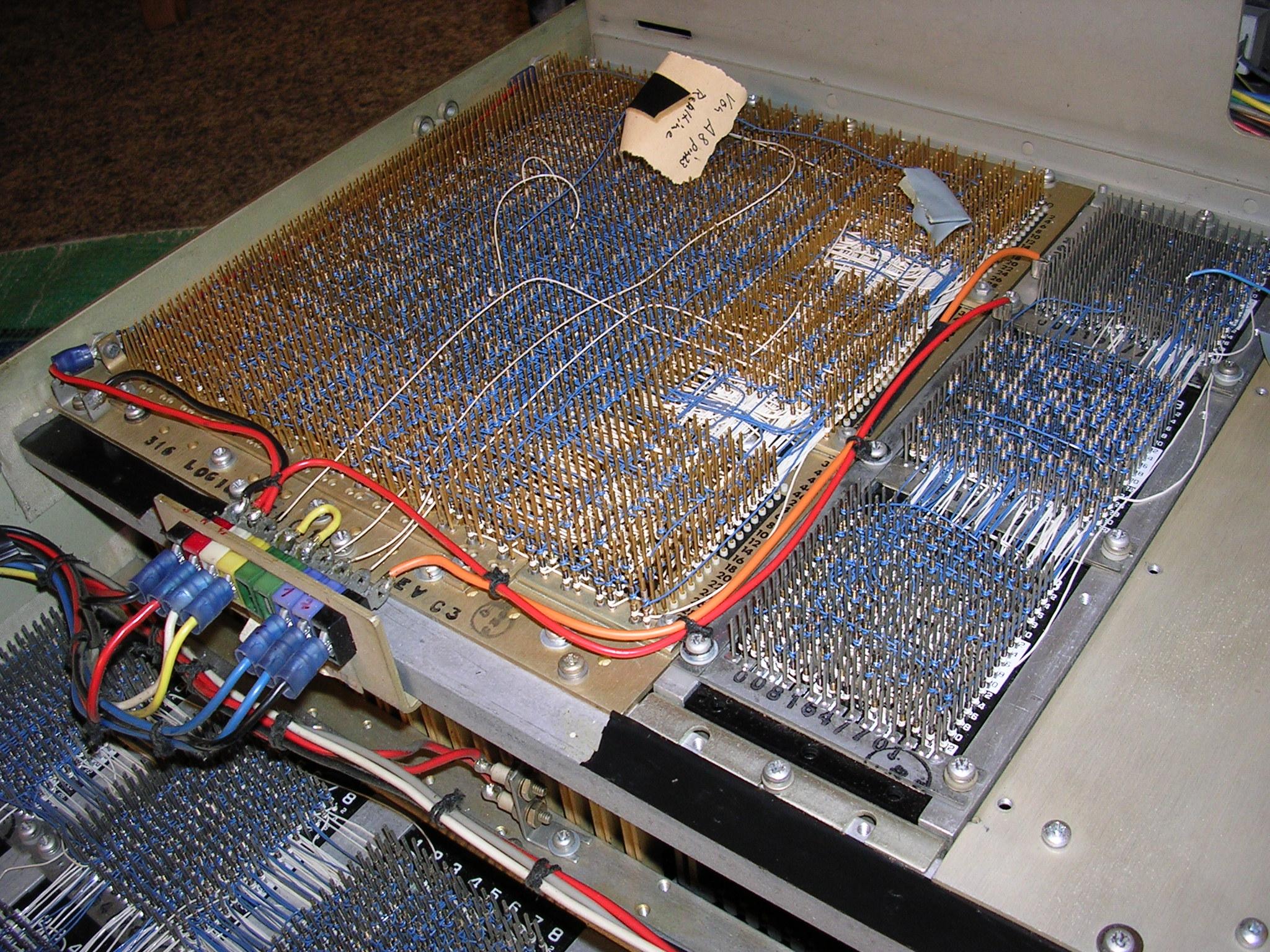

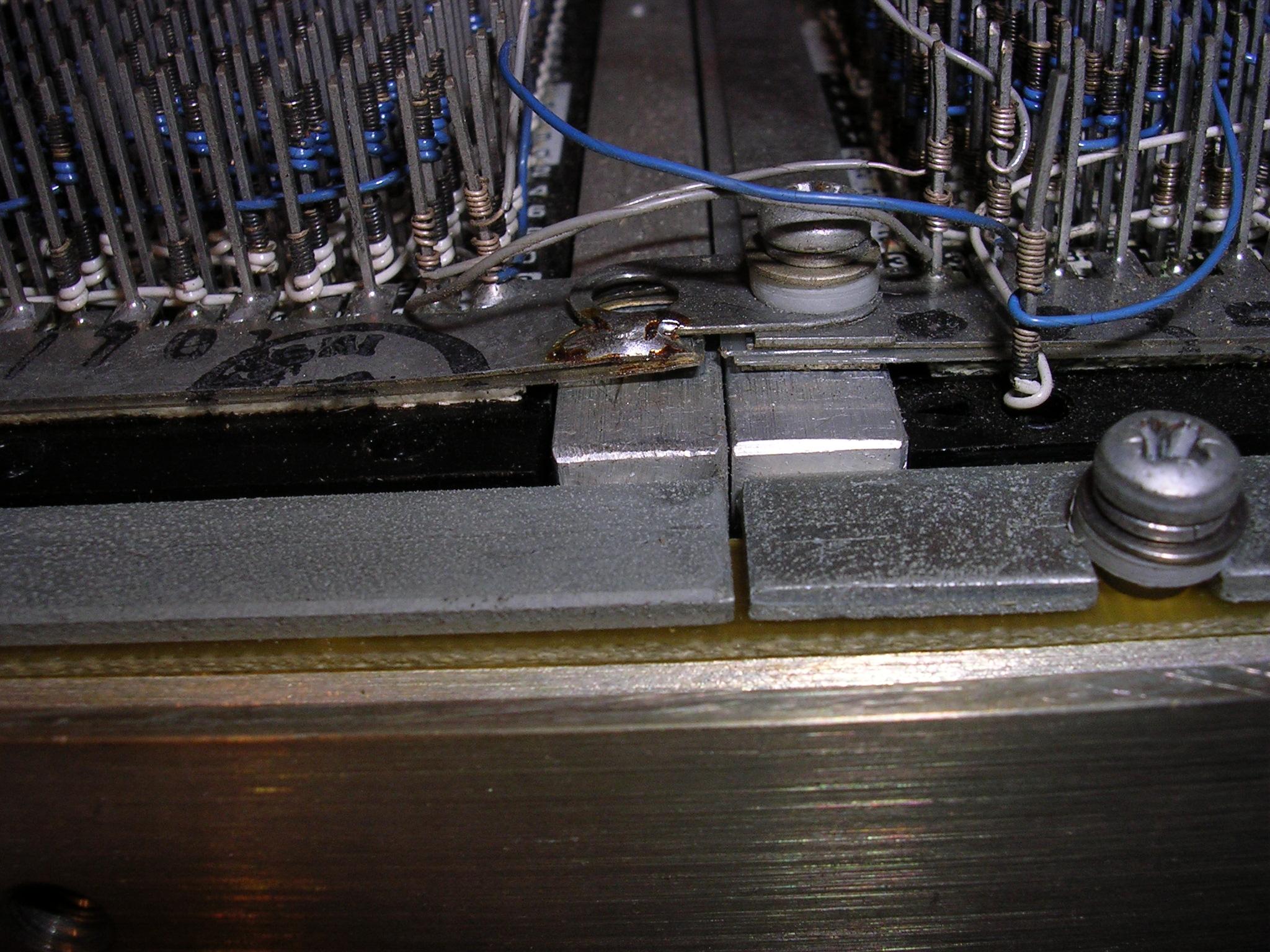

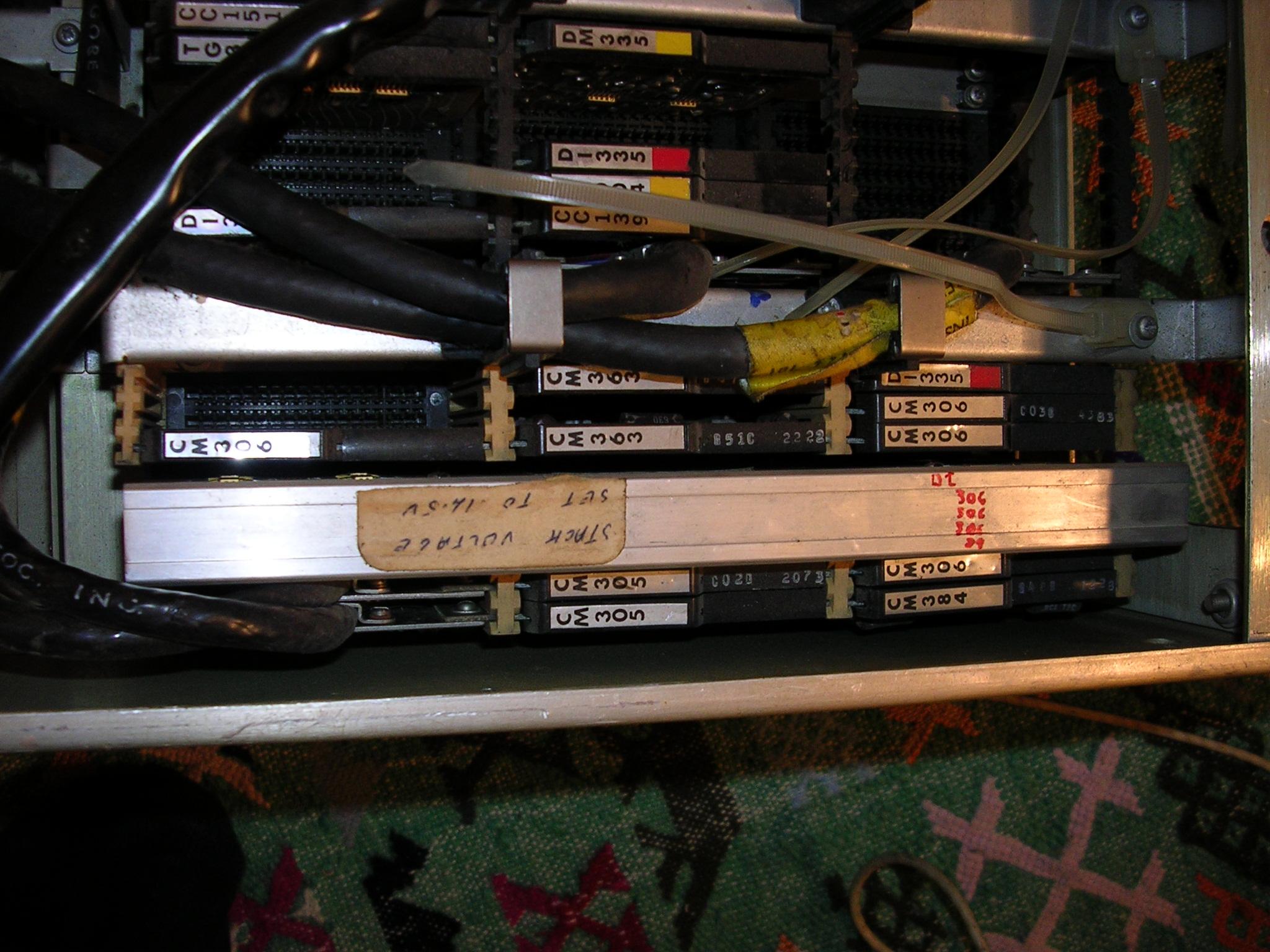

The silver thing is the 4K core stack. 3 rows of µPACs at both sides are the drivers and sense amplifiers. Memory sequence control is done in the CPU. | |
 1024x768 Full size |

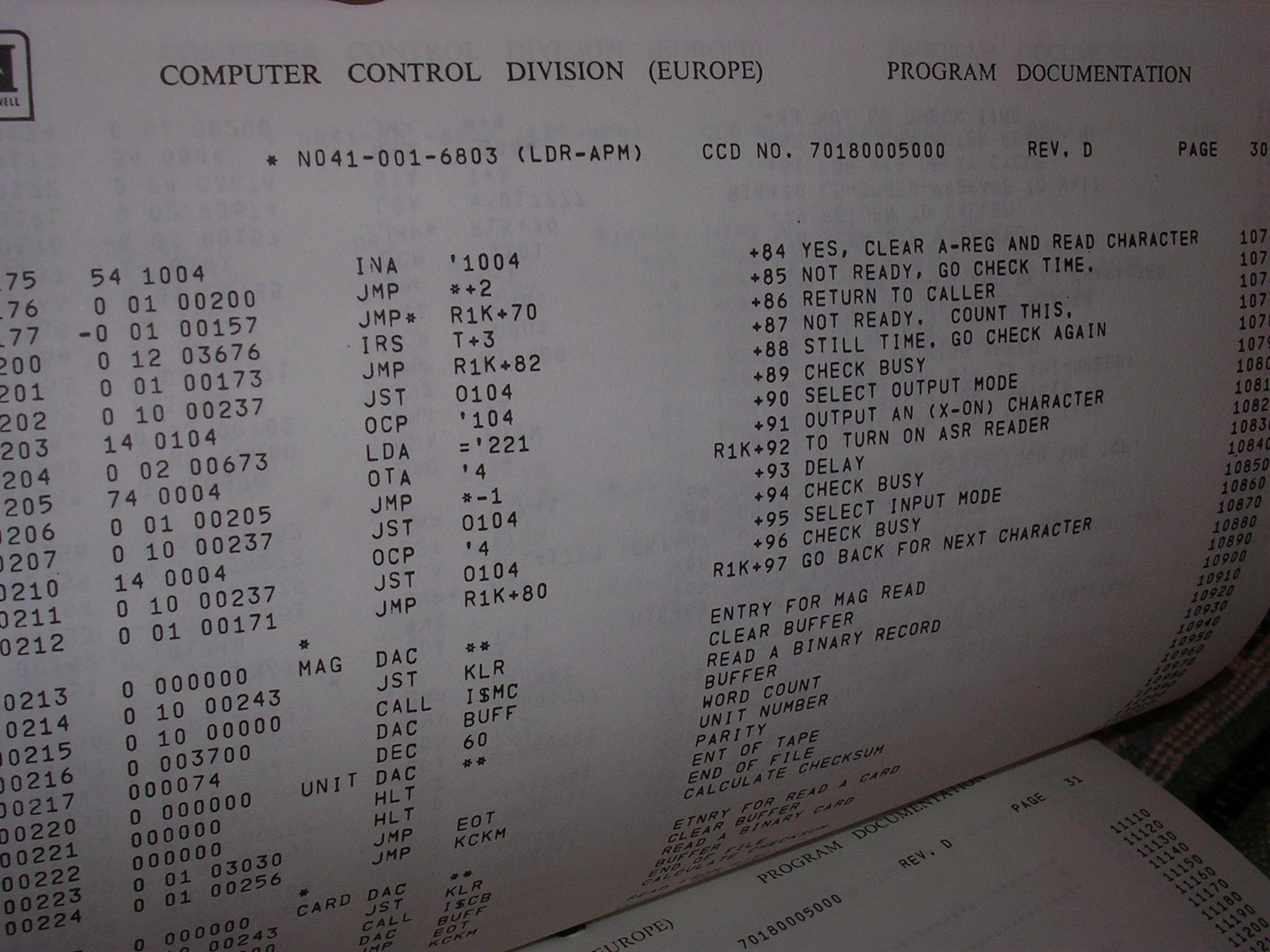

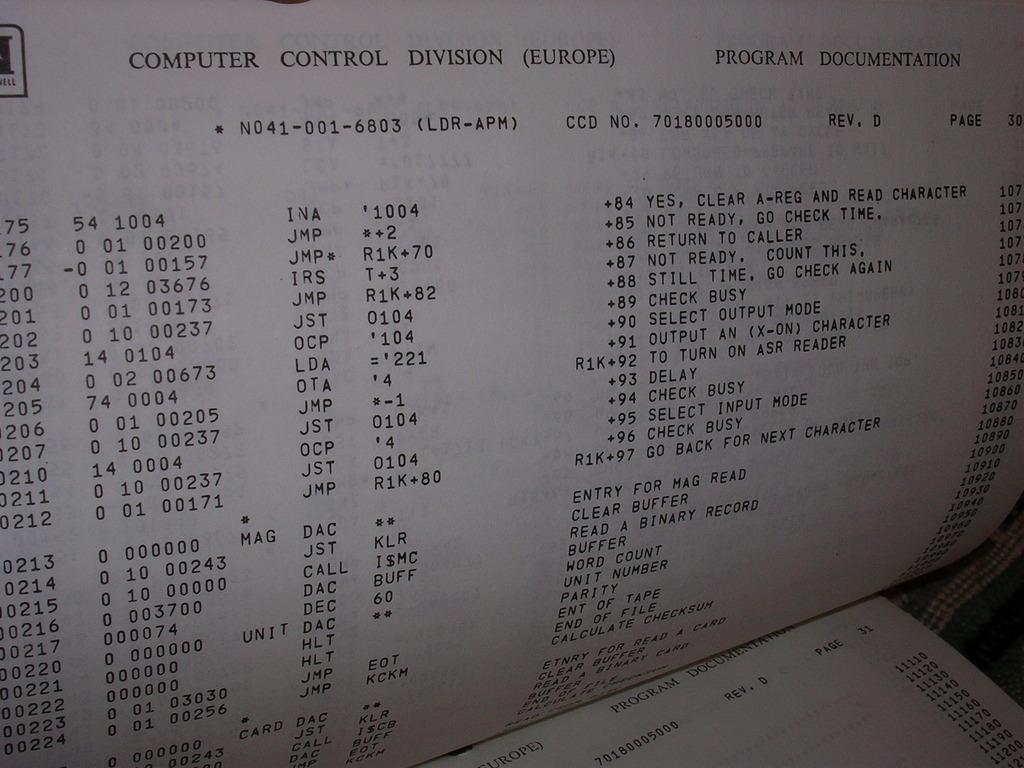

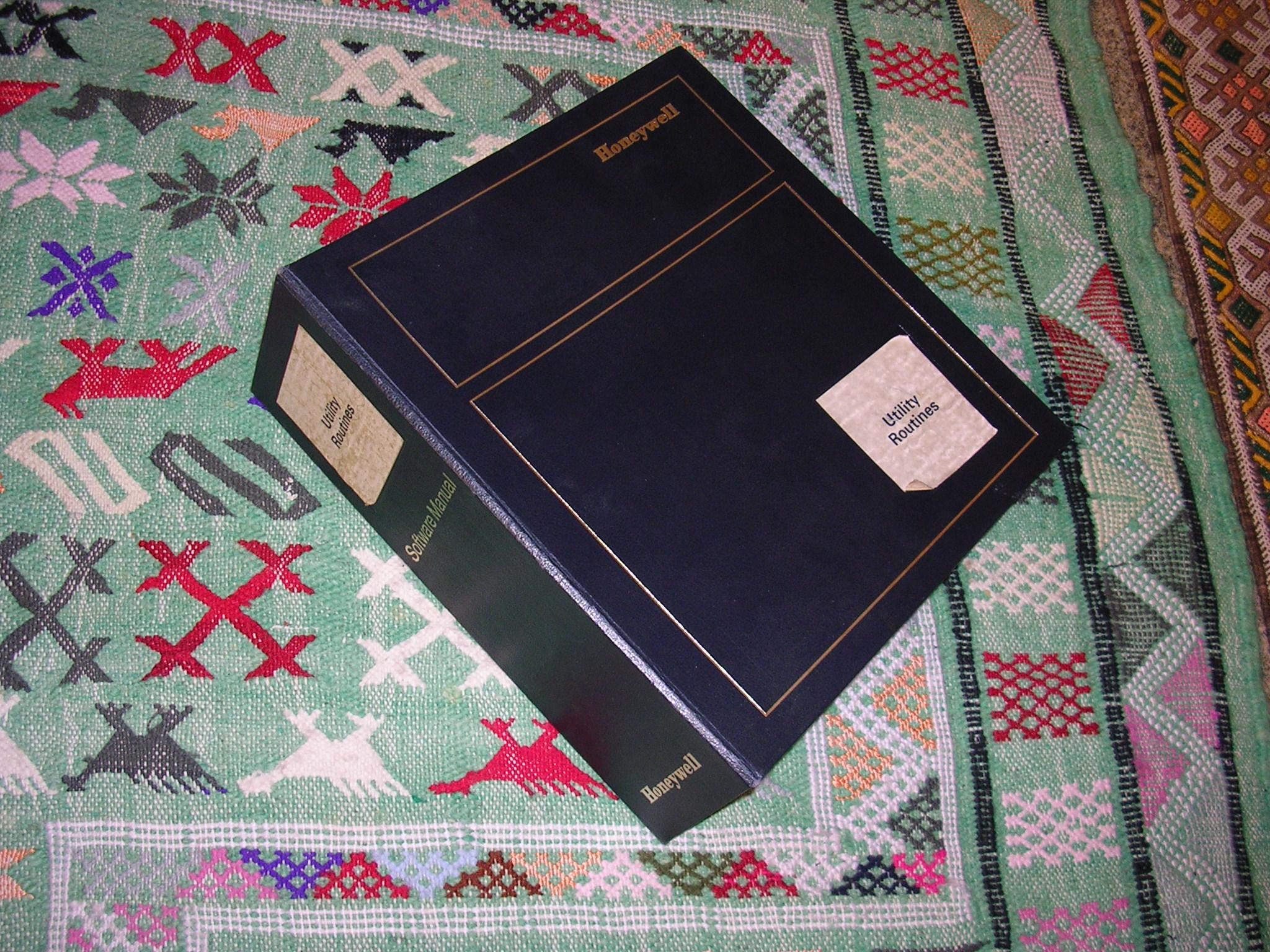

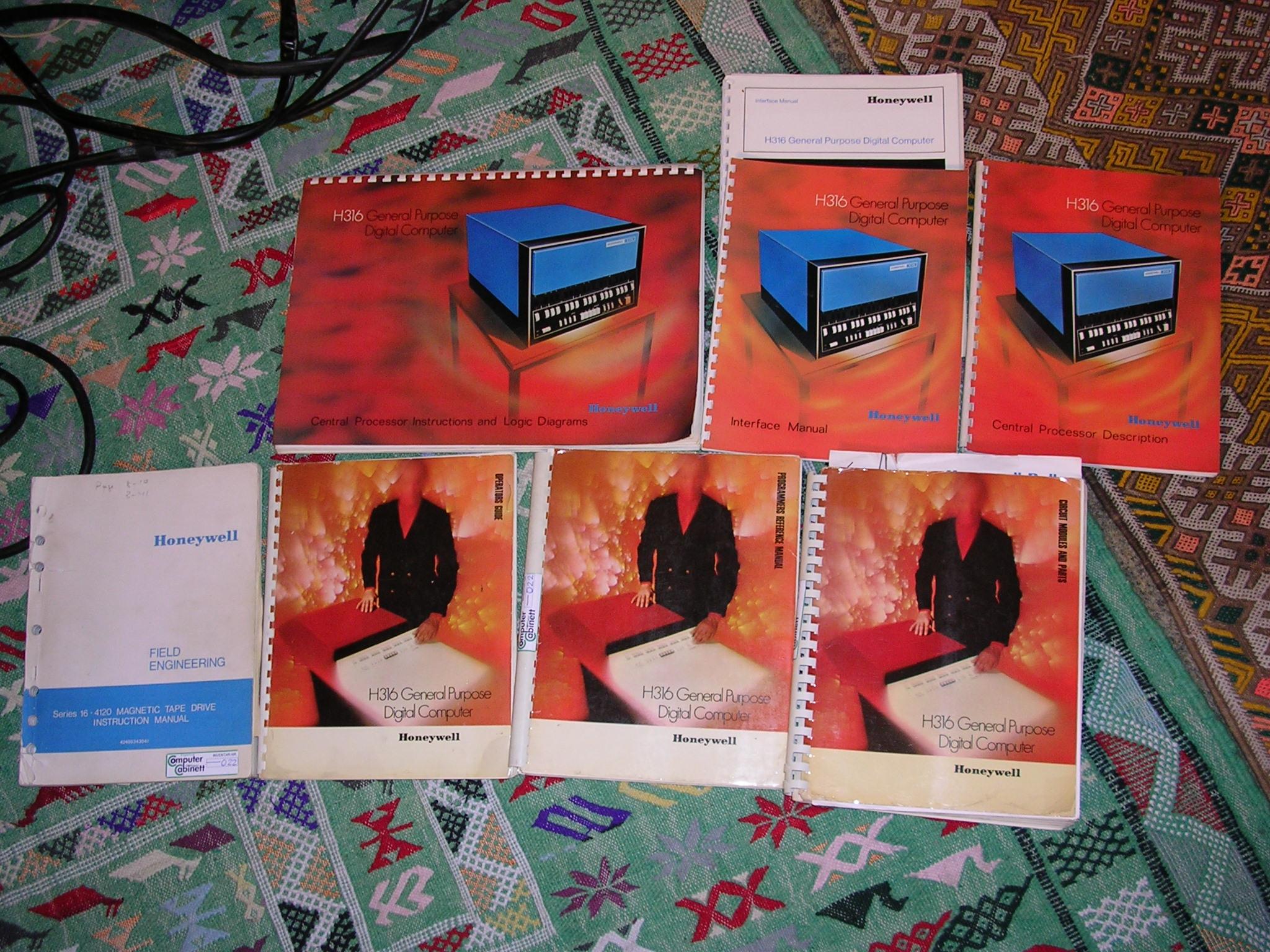

That's the documentation belonging to the machine. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |

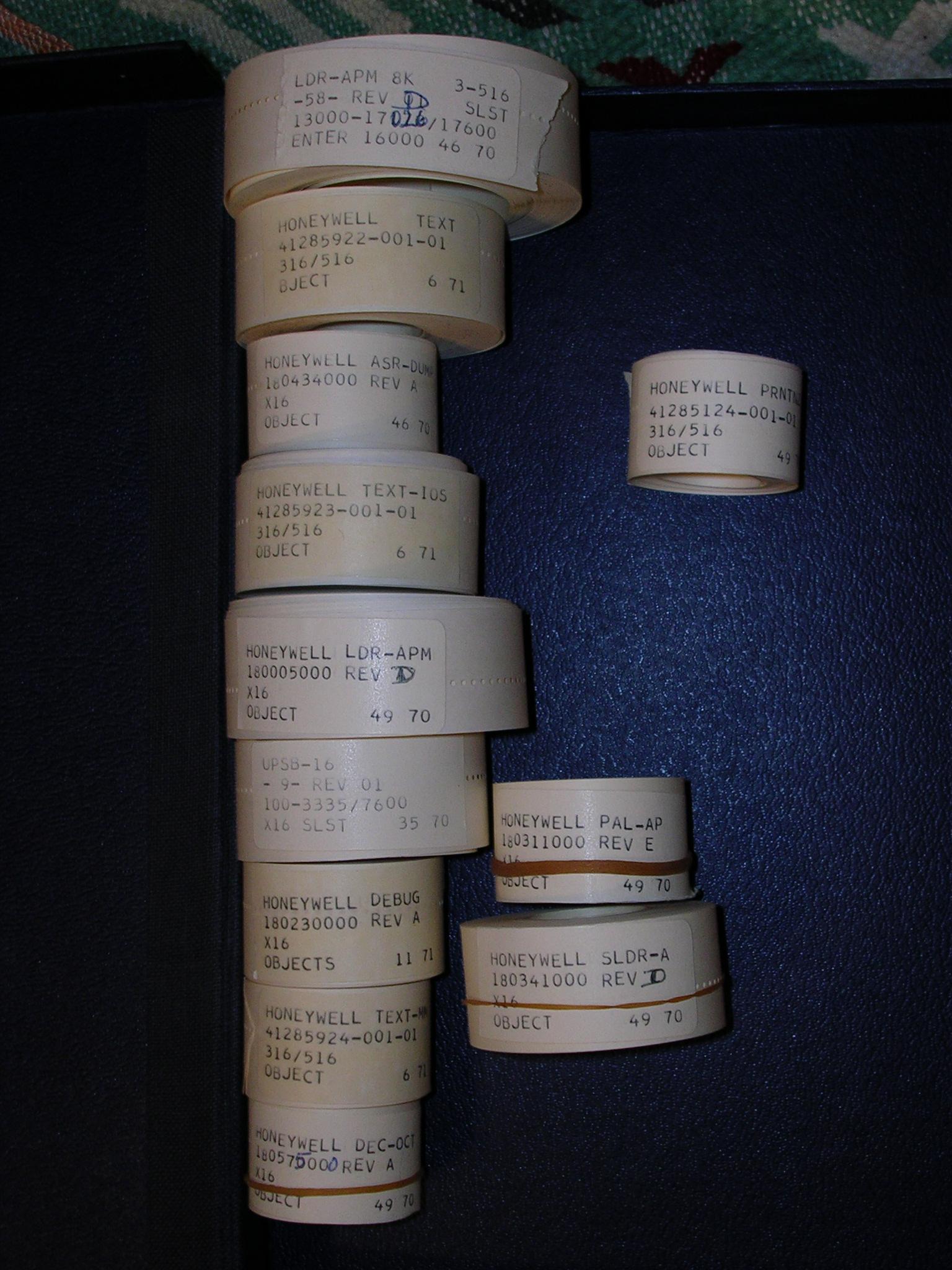

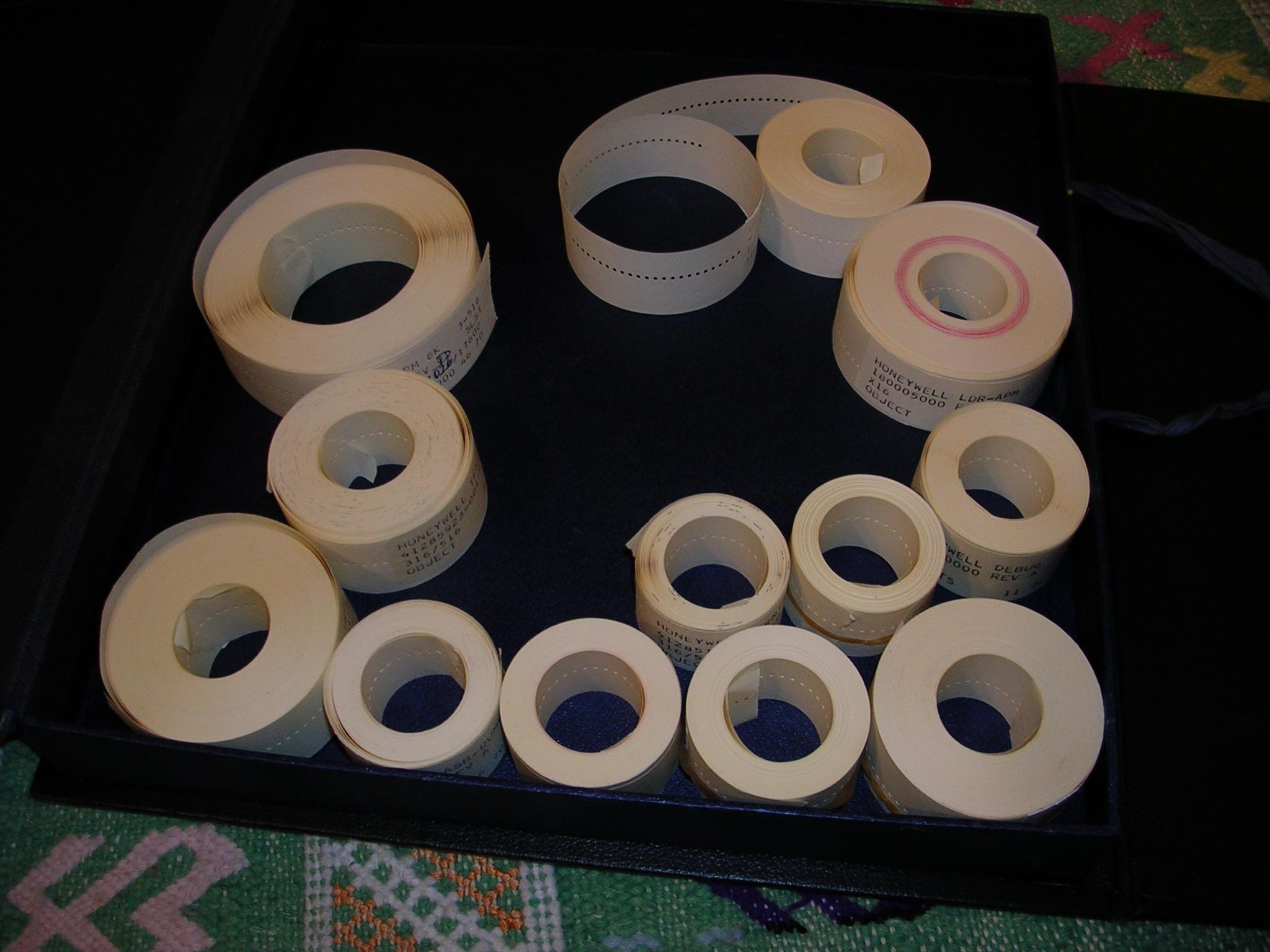

On this picture you can read all labels of all paper tapes that came with the machine. | |
 1024x768 Full size |

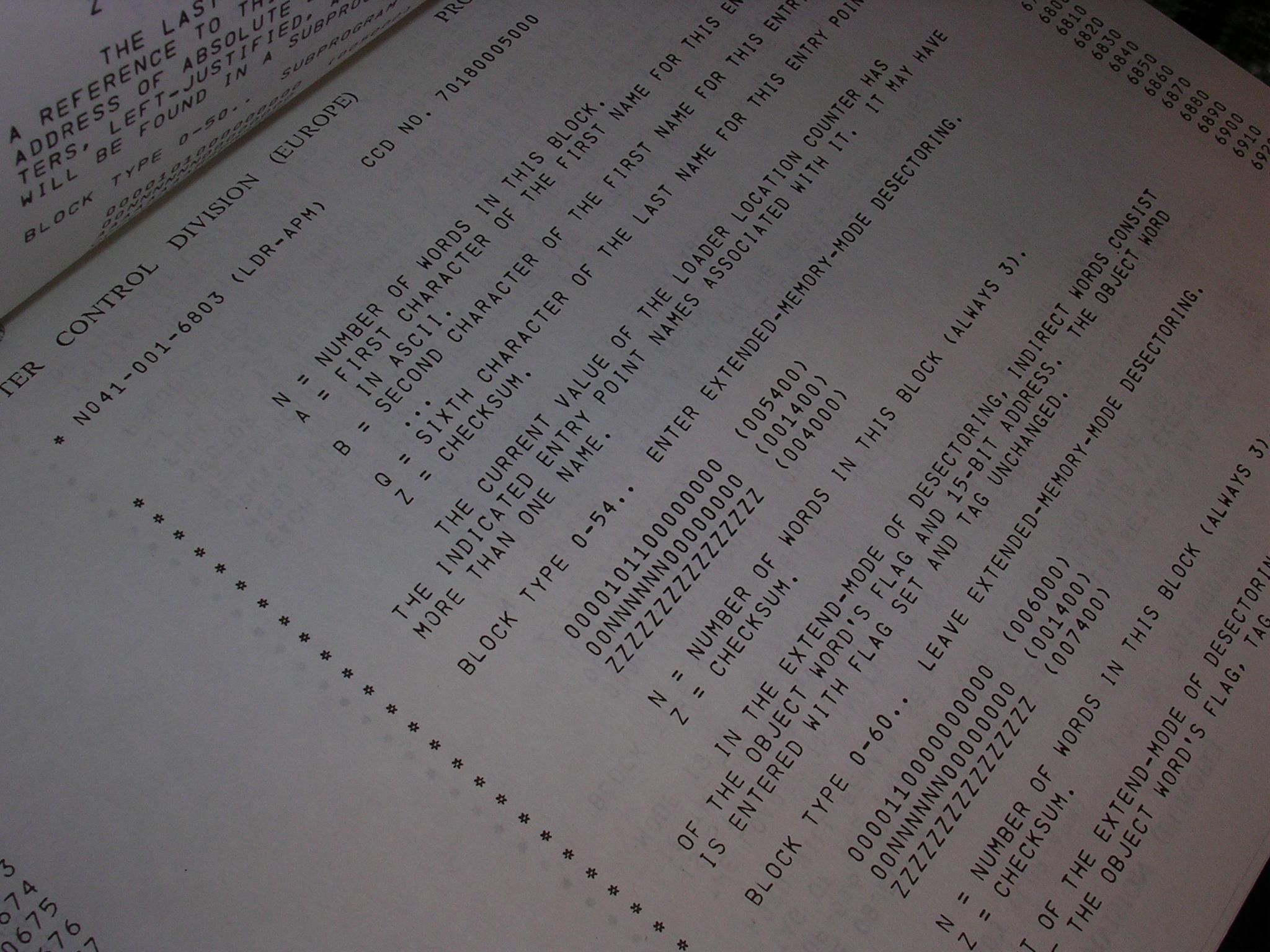

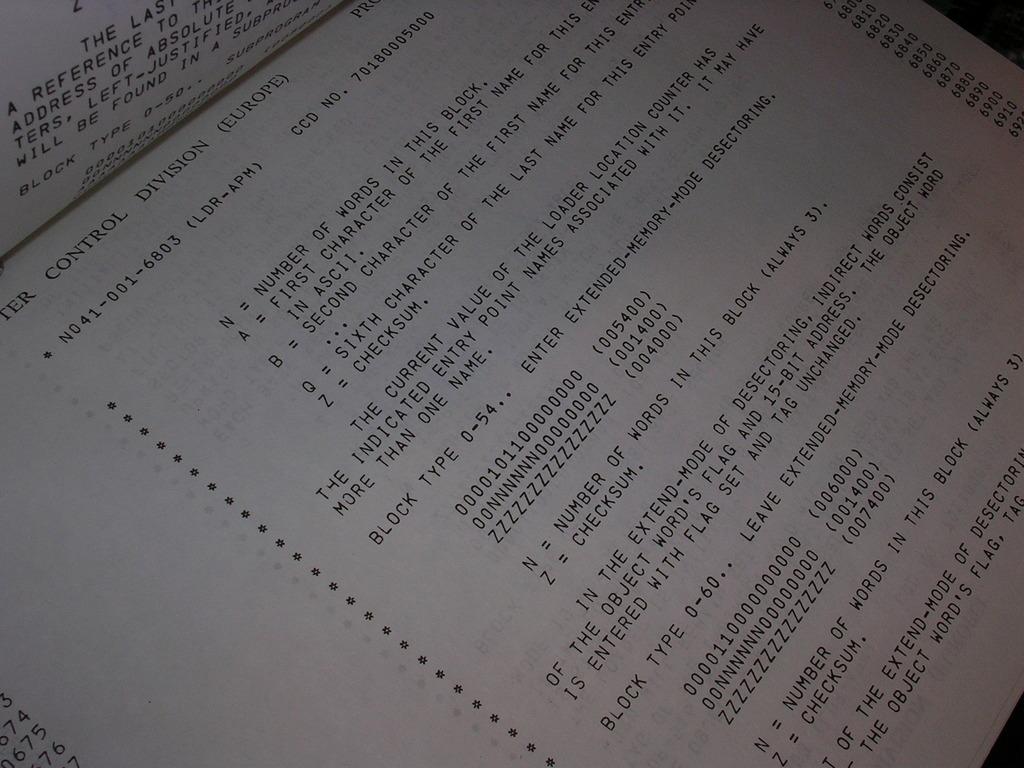

Some assembler impressions. | |
 1024x768 Full size |
Some assembler impressions. | |
 1024x768 Full size |
Some assembler impressions. | |
 1024x768 Full size |

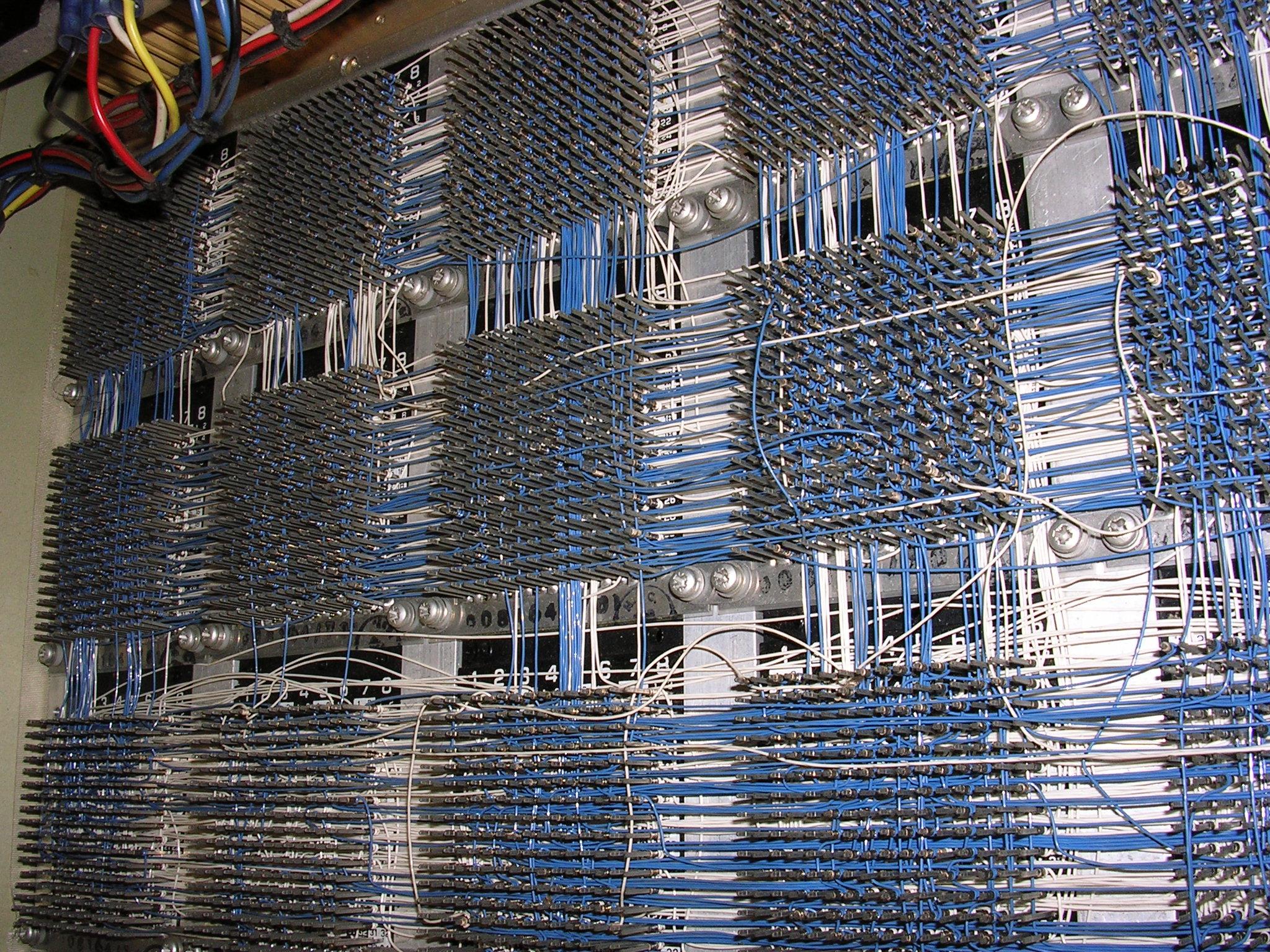

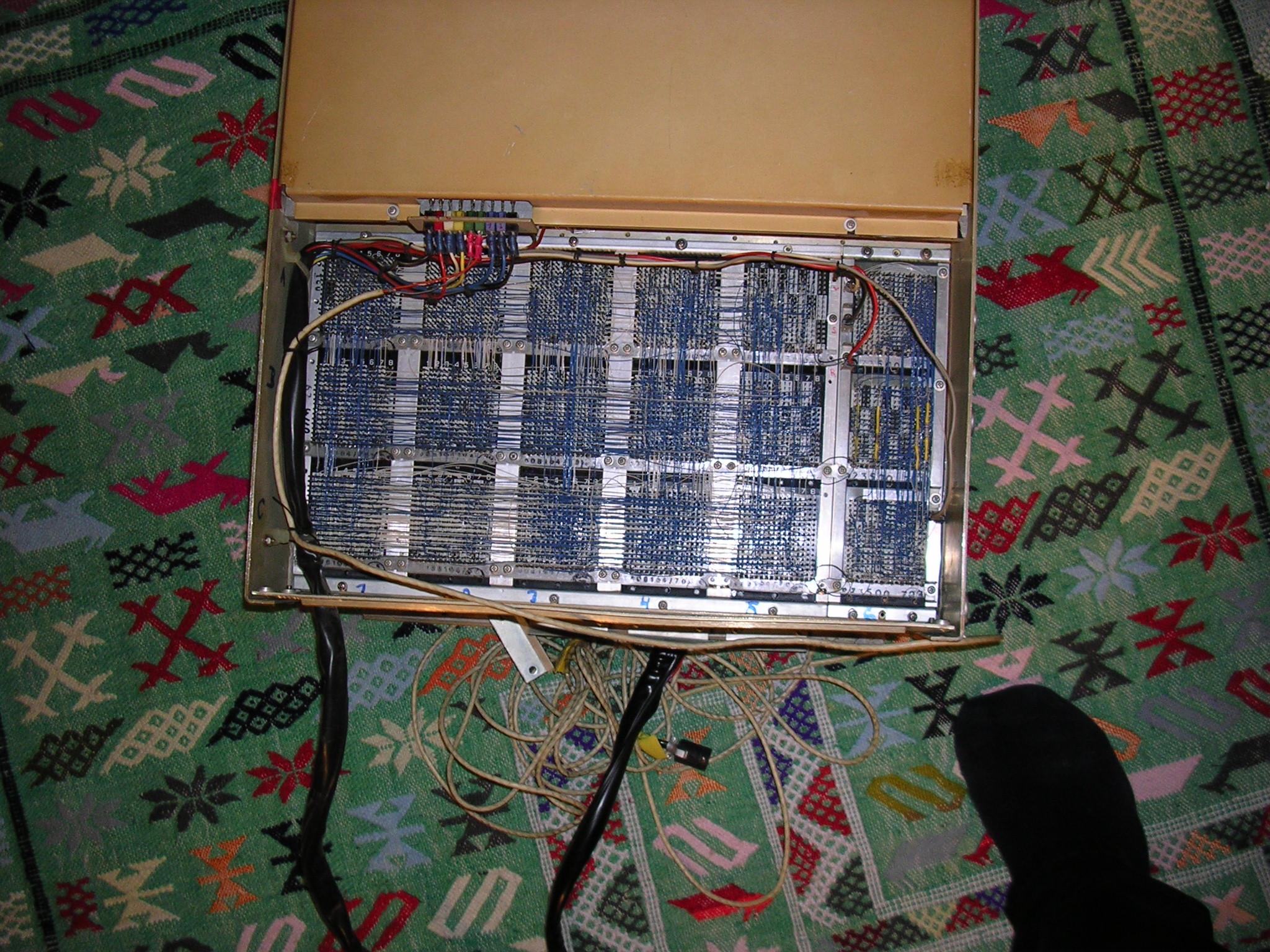

From below | |
 1024x768 Full size |

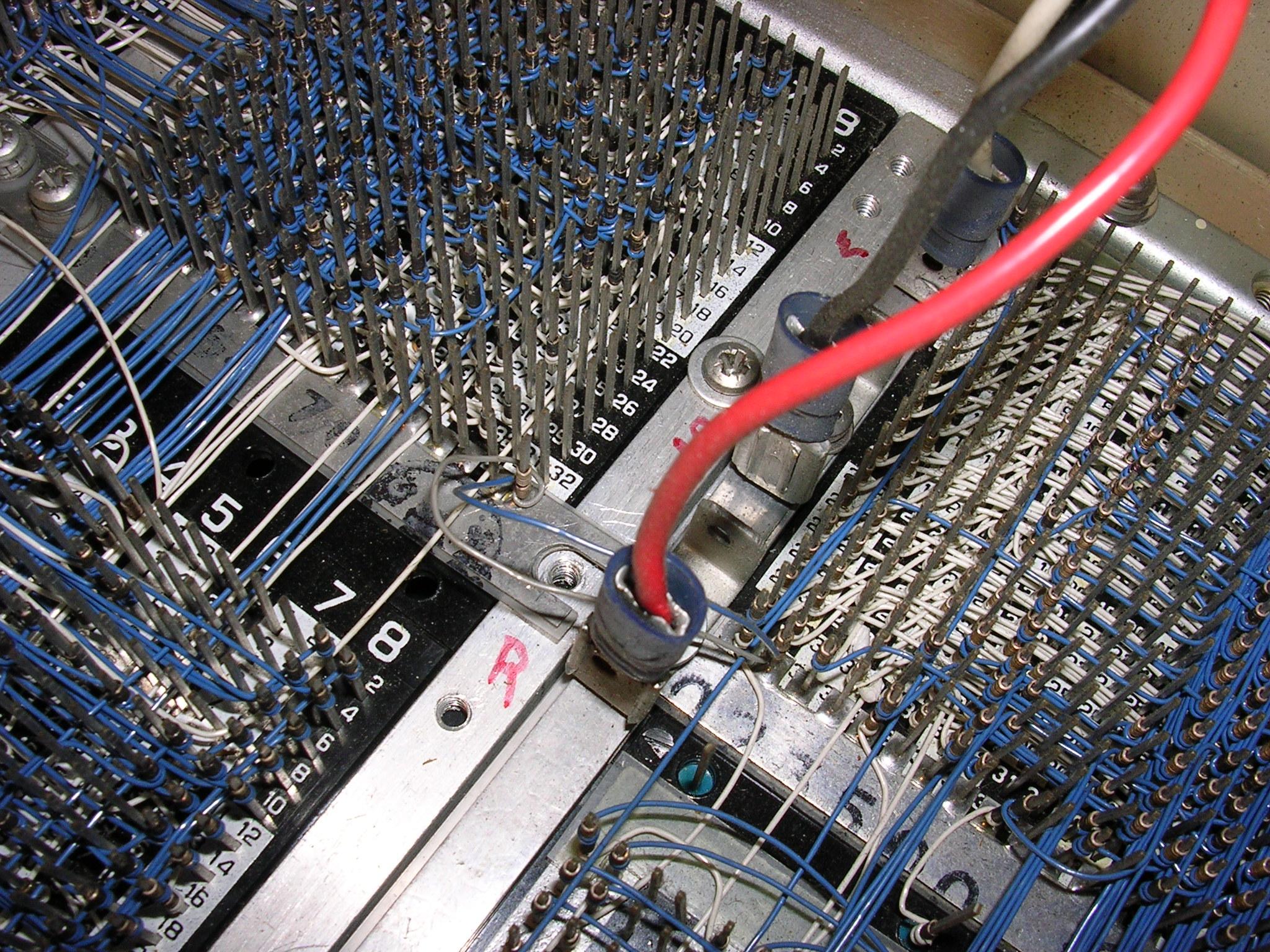

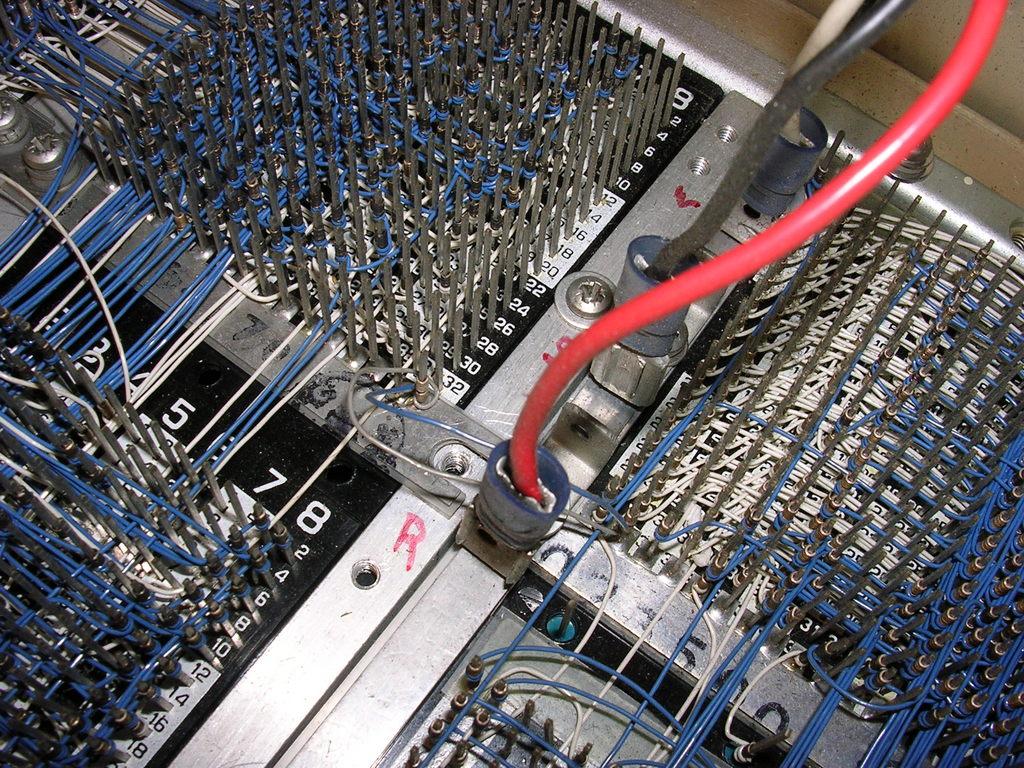

The power distribution is not original... | |
 1024x768 Full size |
... in many places | |
 1024x768 Full size |

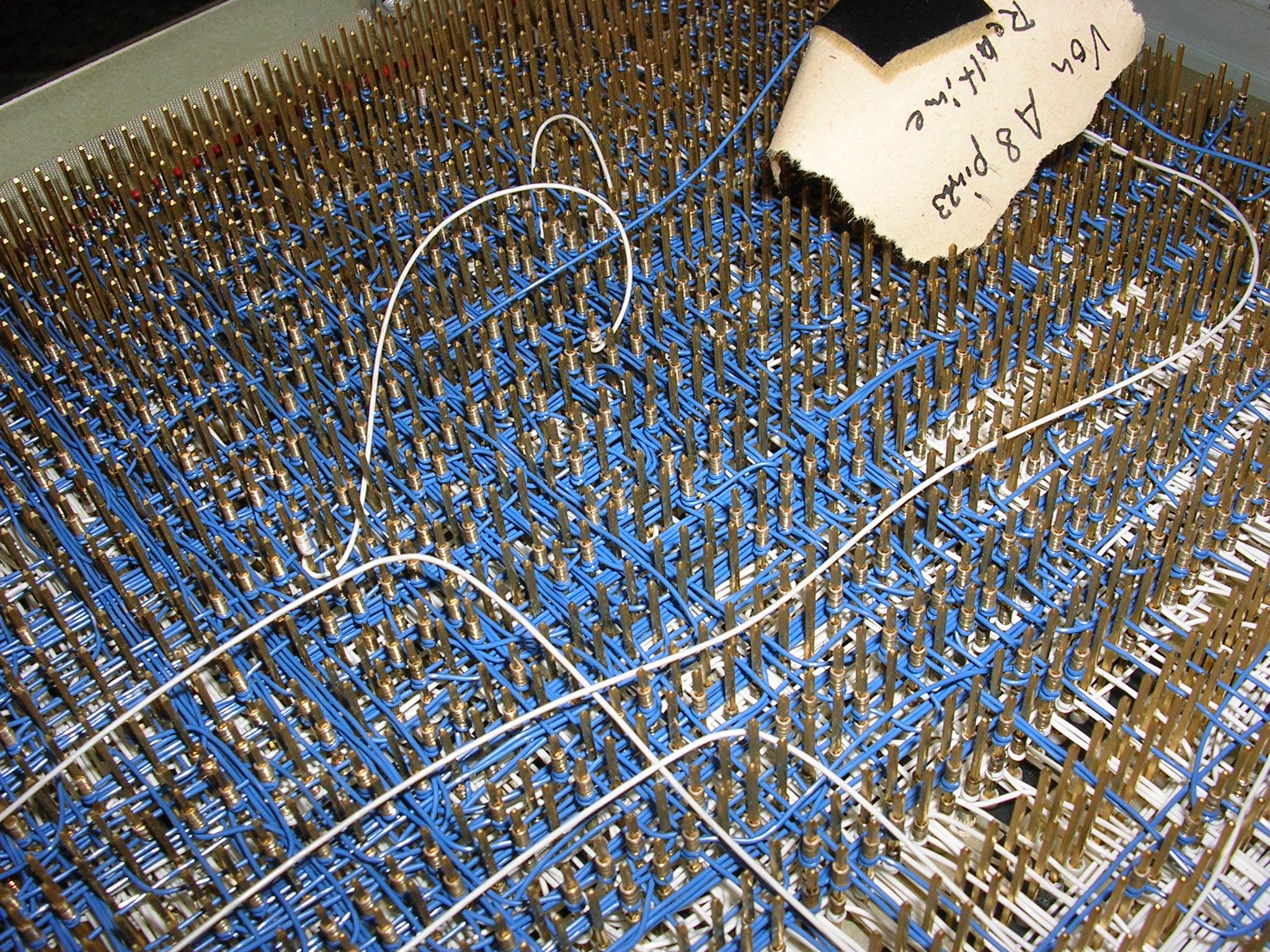

The CPU from below. What is that fancy paper-marked flying open wire about....? | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |

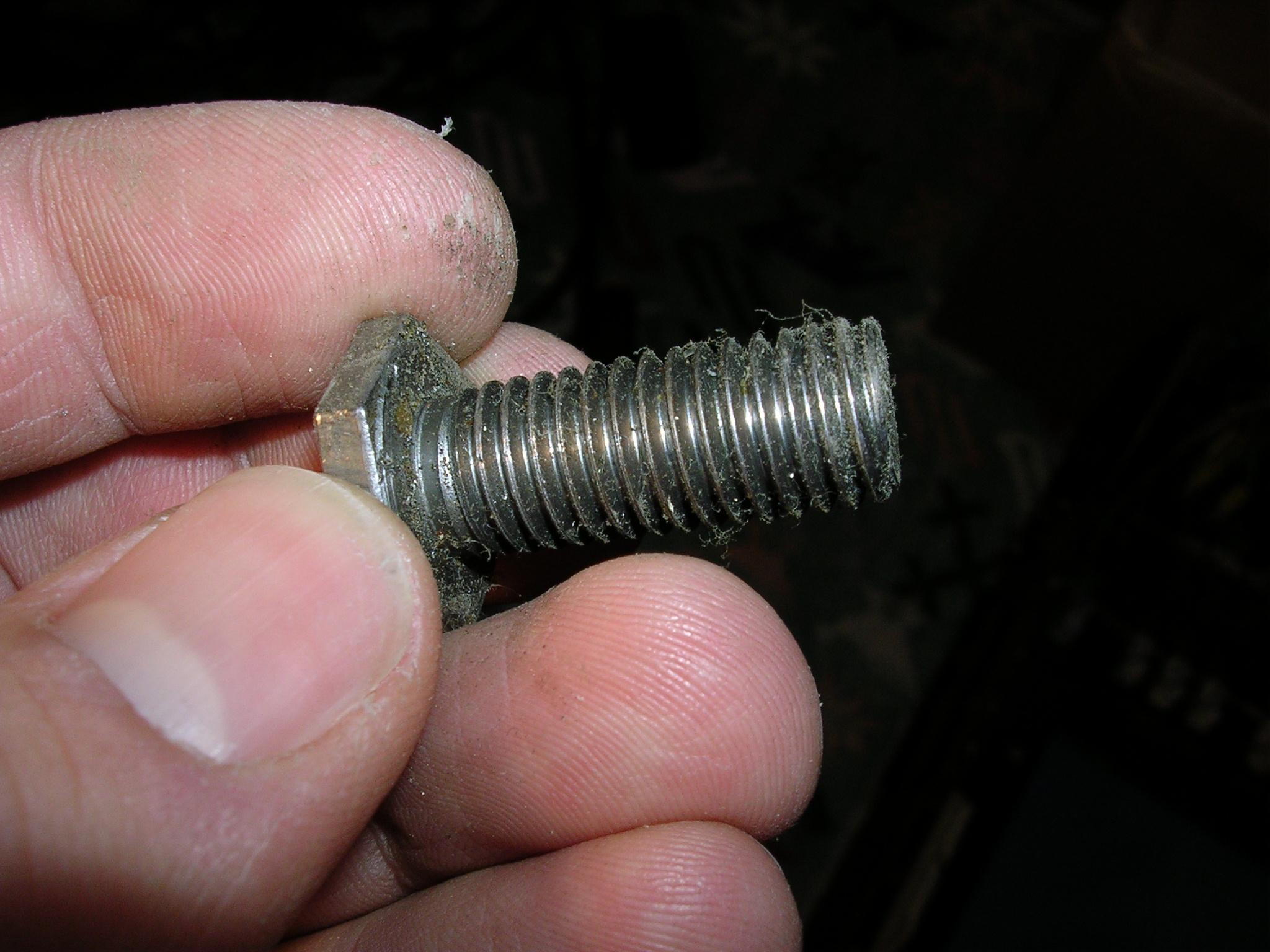

Found this huge screw in the control panel. Good to have shaken the computer before trying to power it up! | |
 1024x768 Full size |

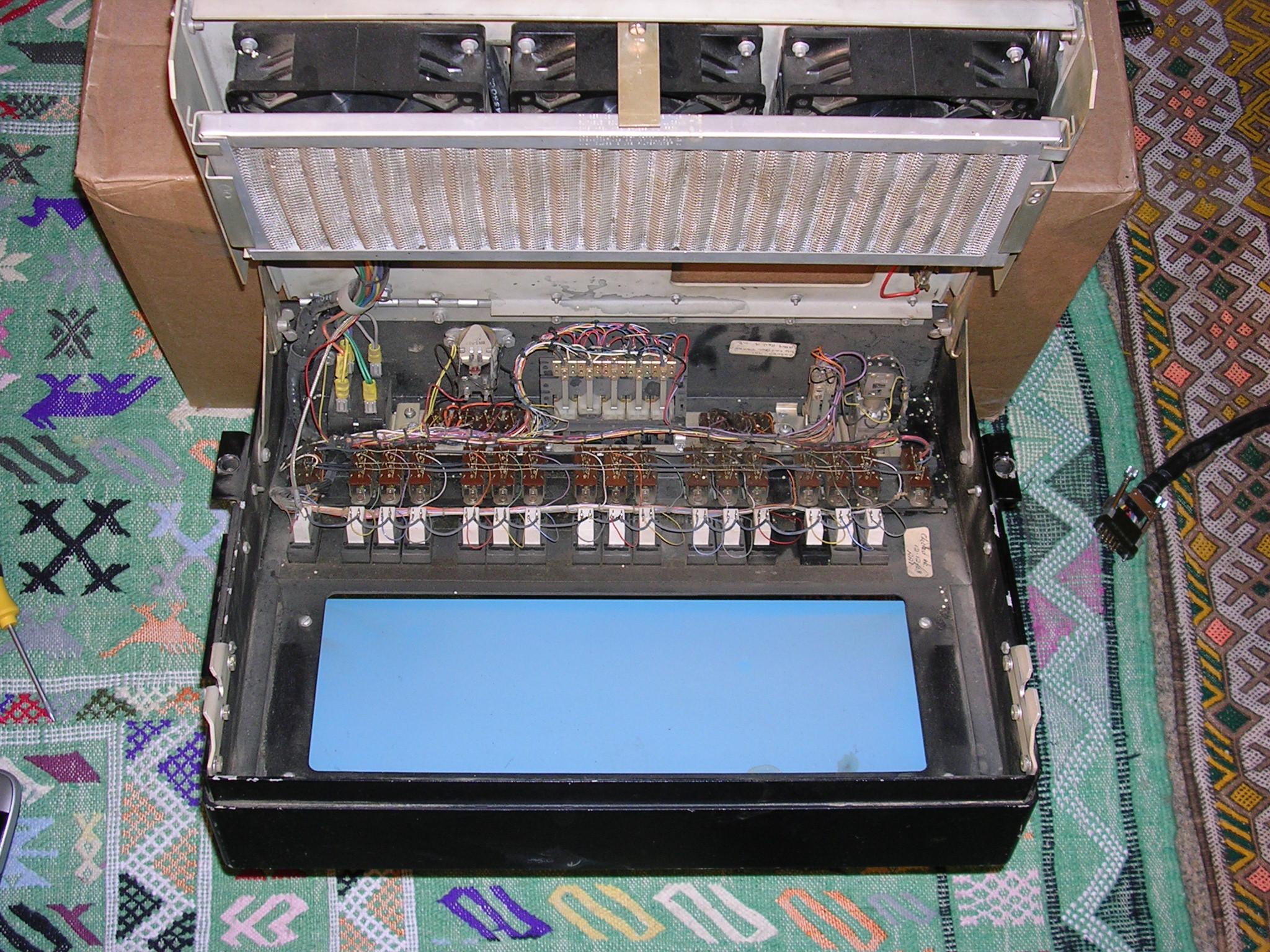

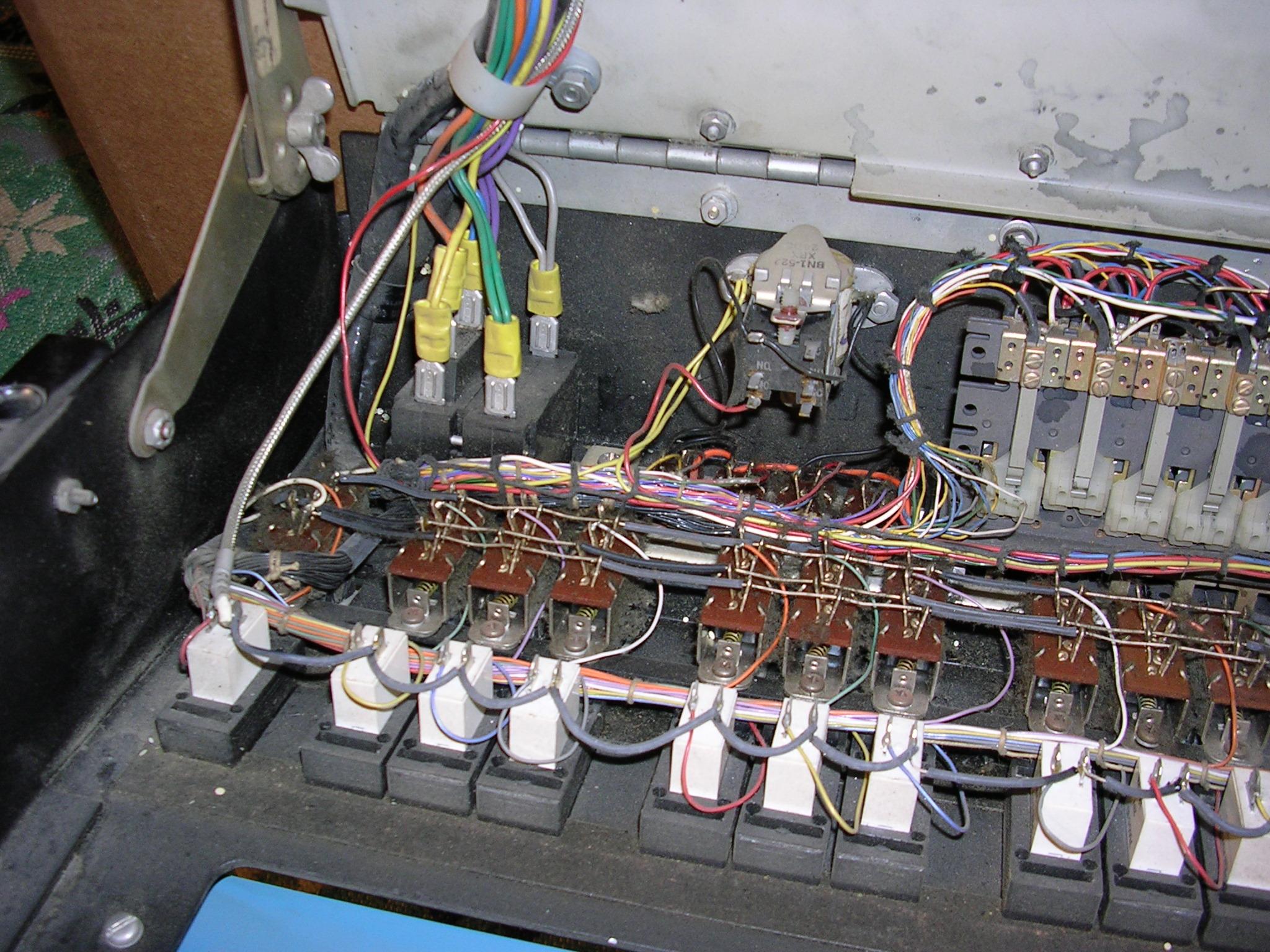

The front panel from behind. It is VERY dusty. Perhaps I should put it into the dish washer.... | |
 1024x768 Full size |

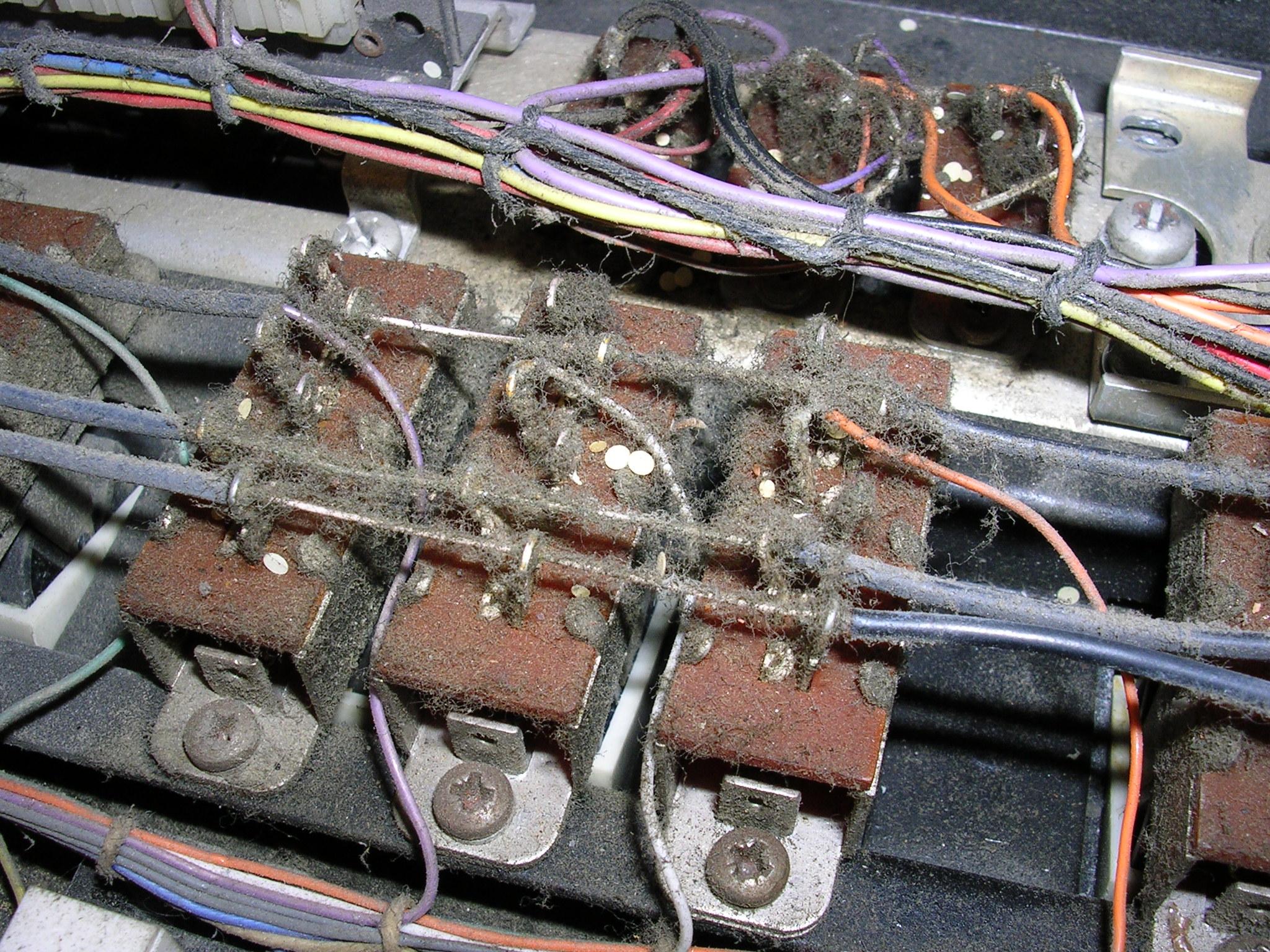

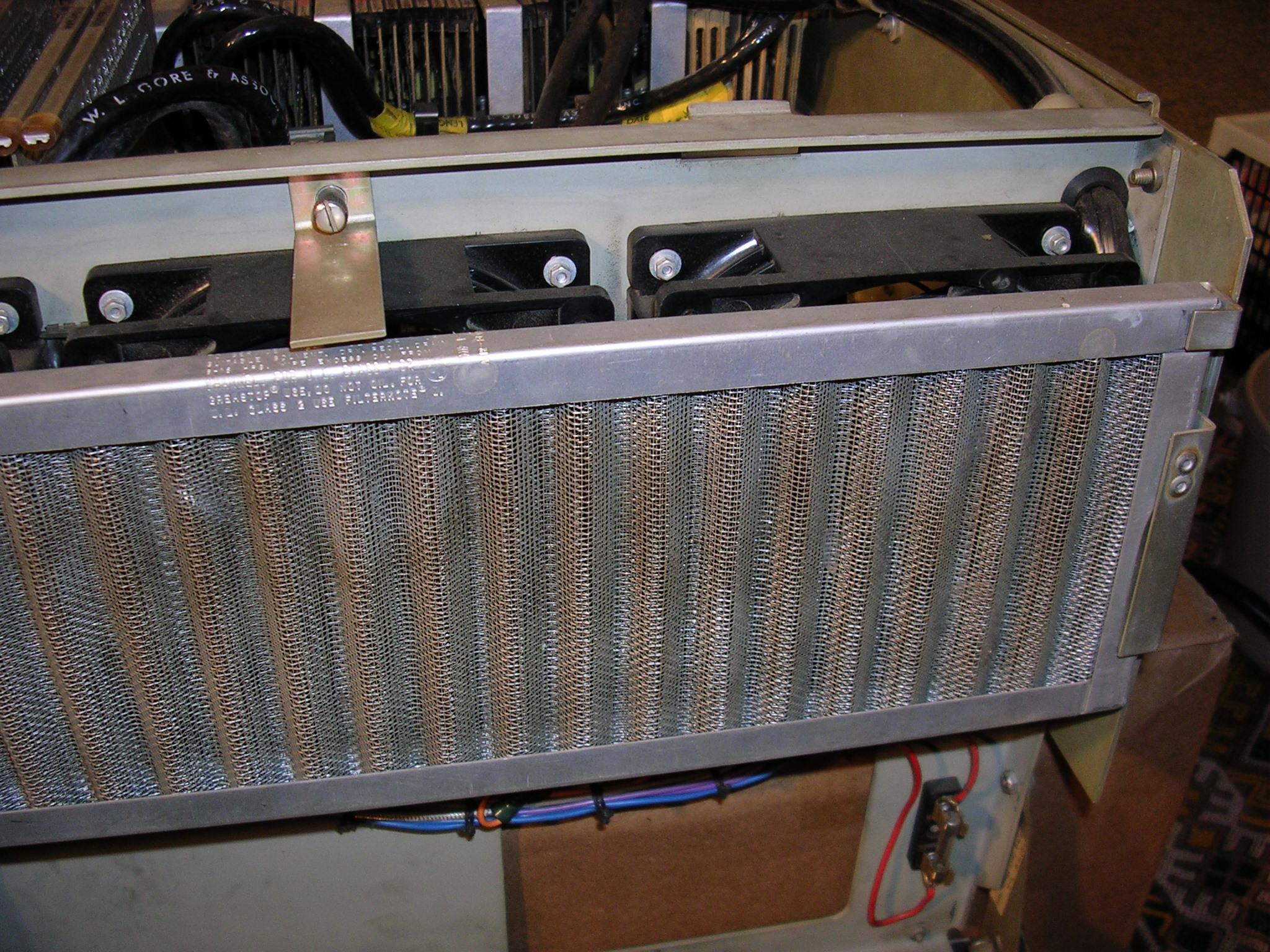

No description. | |
 1024x768 Full size |

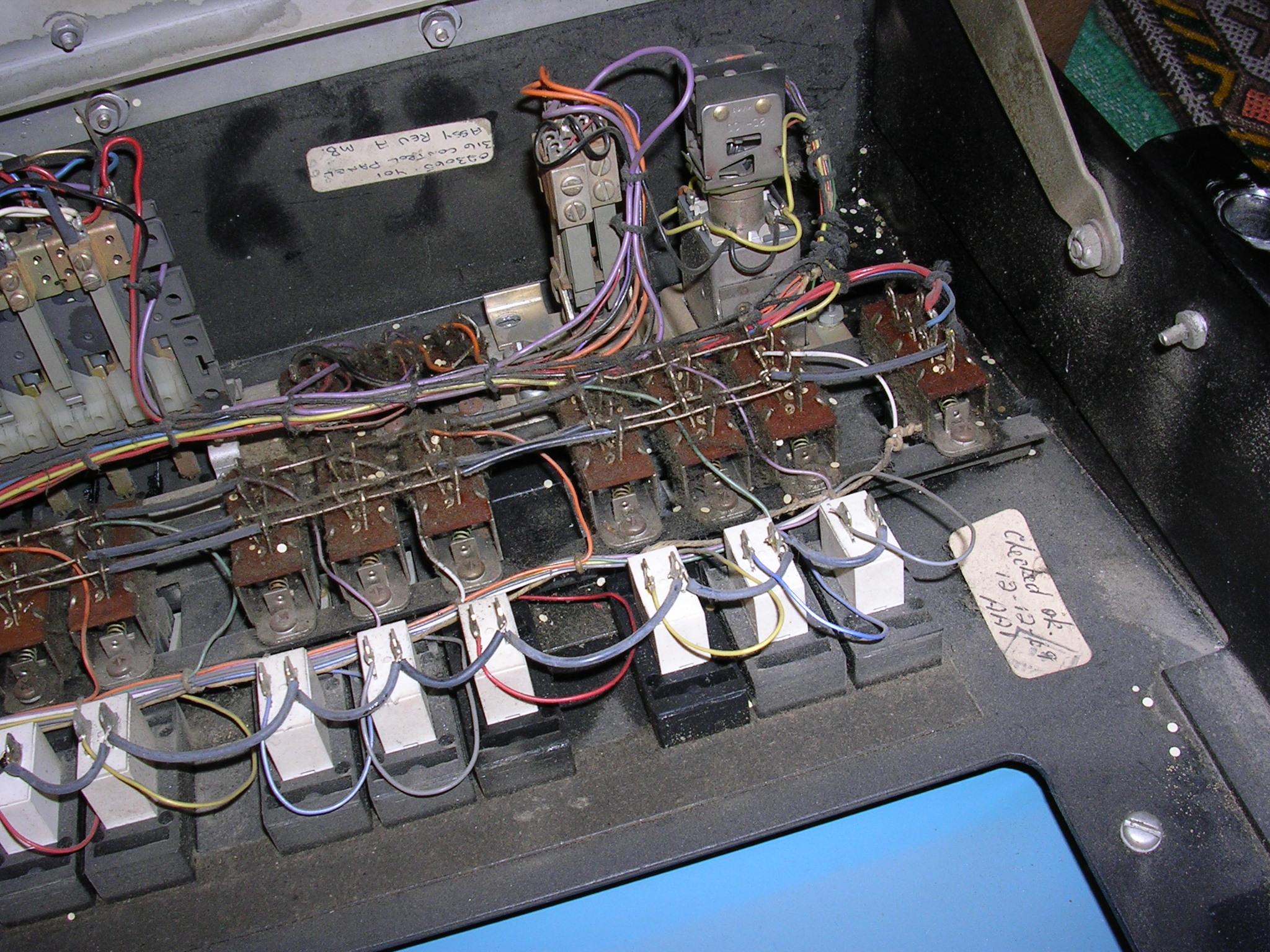

No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |
No description. | |
 1024x768 Full size |

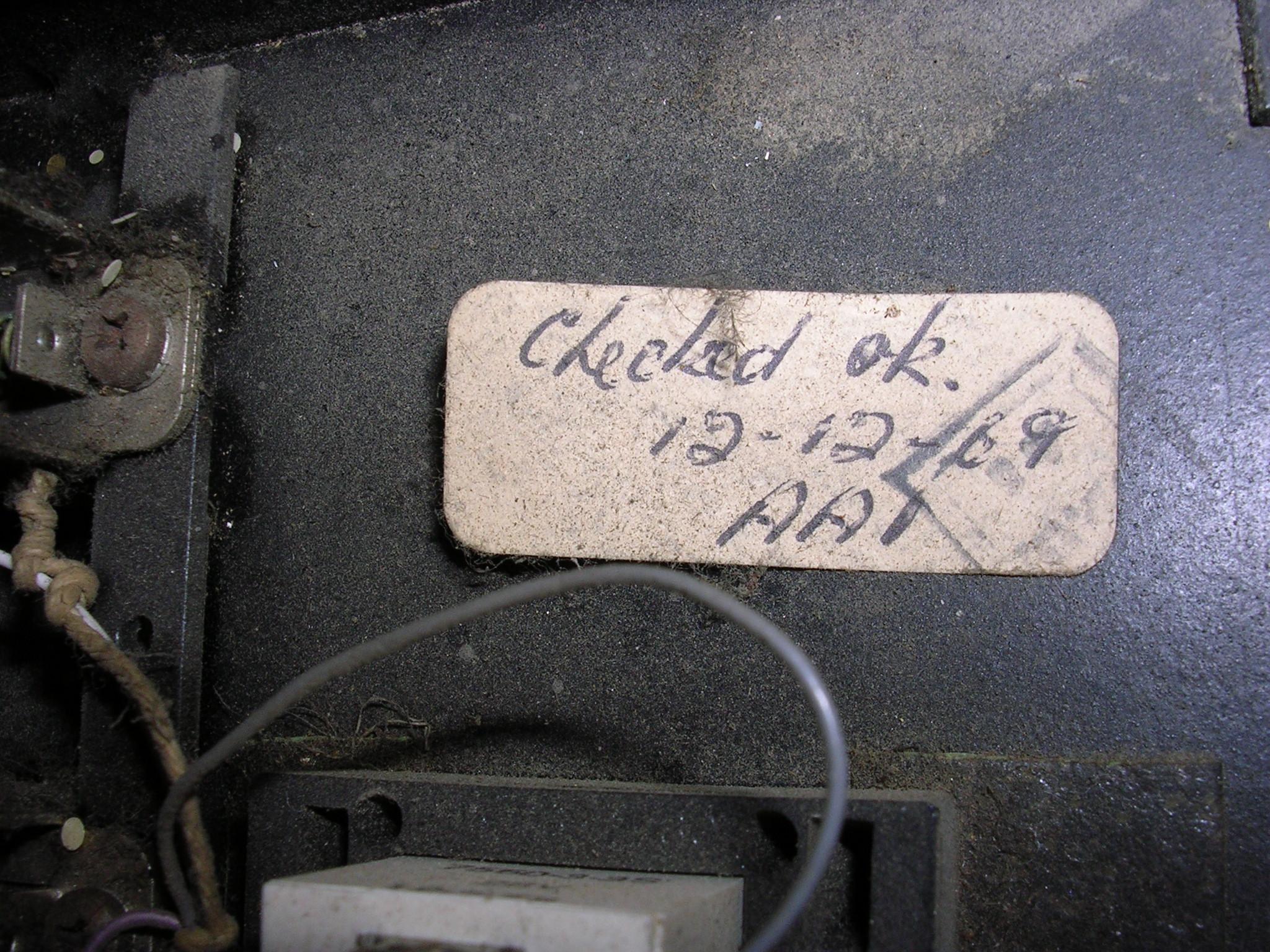

Did this computer leave the factory just in time before christmas? | |
 1024x768 Full size |

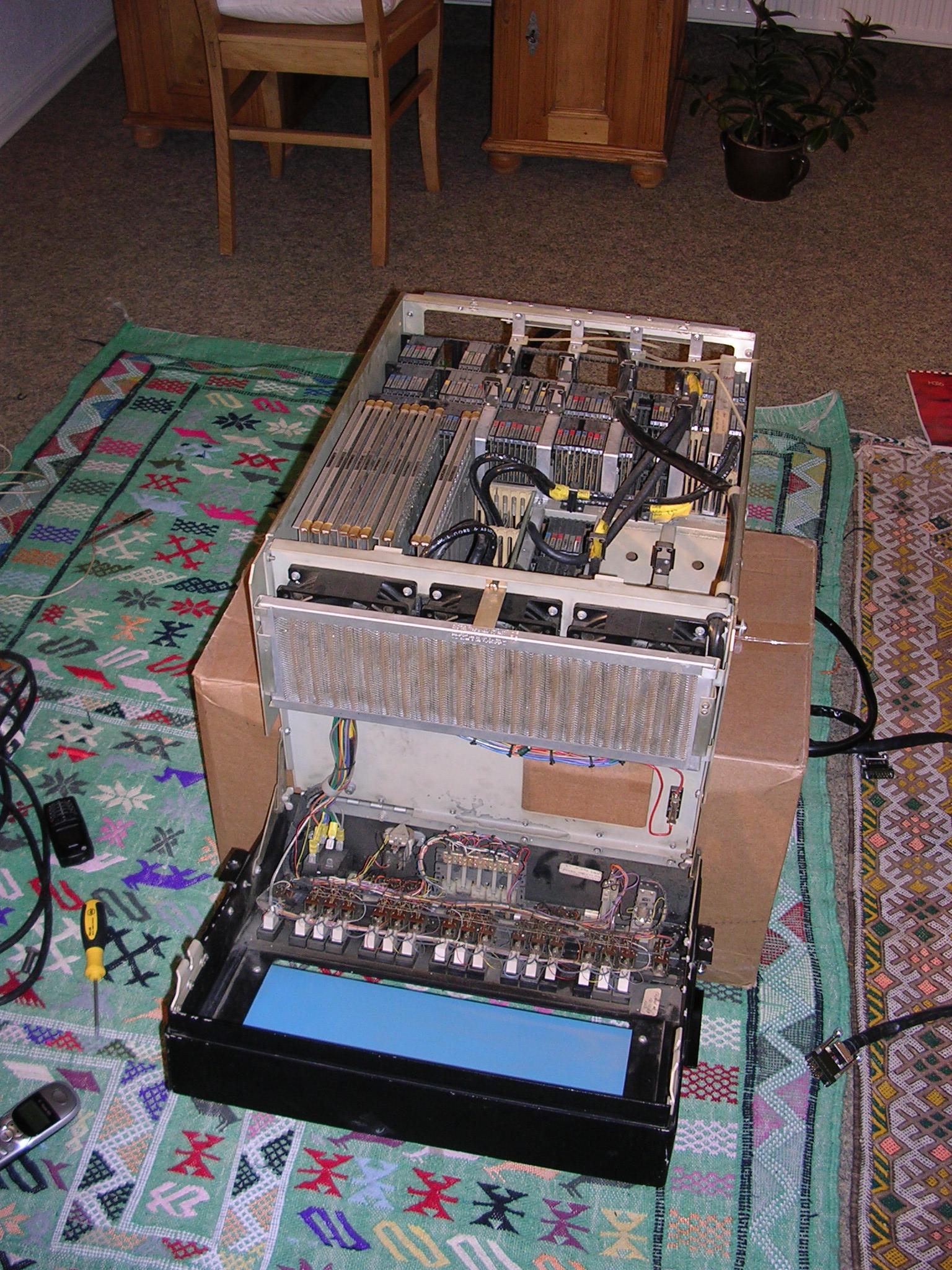

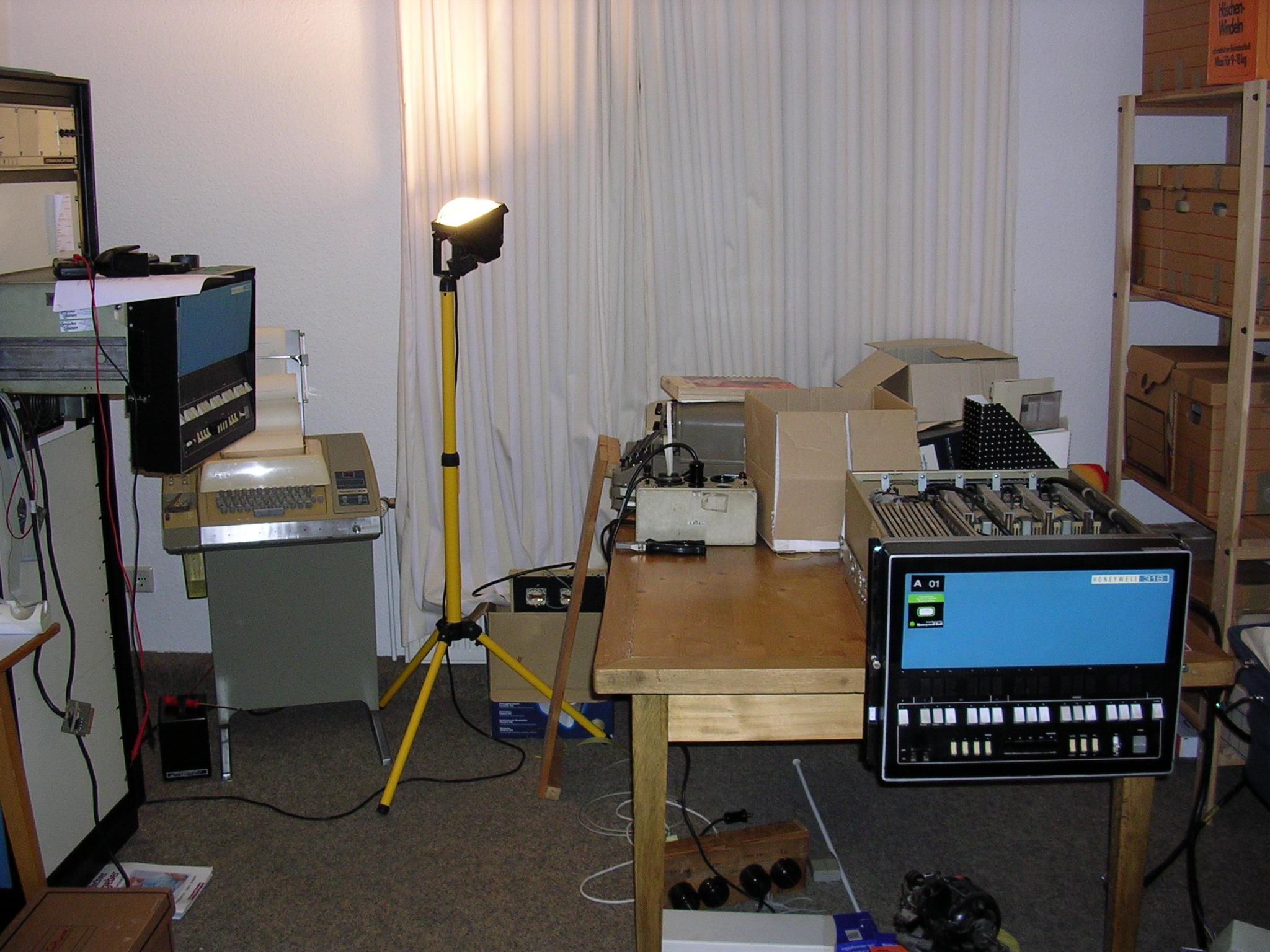

The whole oven. | |
 1024x768 Full size |
That's NOT my H316. It is the new one in MY rack. I removed my computer and put this one into place because the new one has no PSU. | |
 1024x768 Full size |
It is on fire.... | |
 1024x768 Full size |
Two H316 in one photo! | |
 1024x768 Full size |
That's my H316 CPU. | |
 1024x768 Full size |

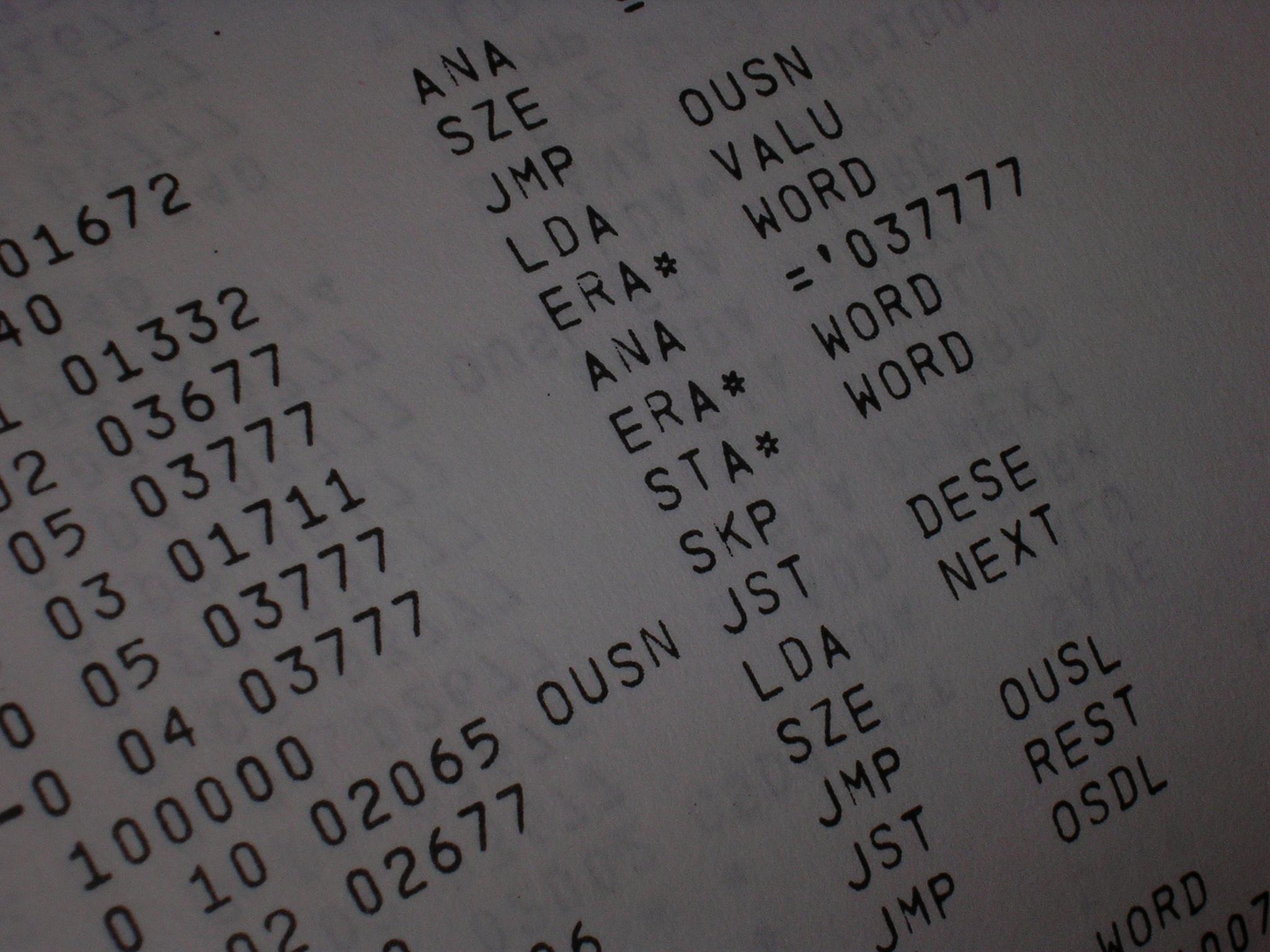

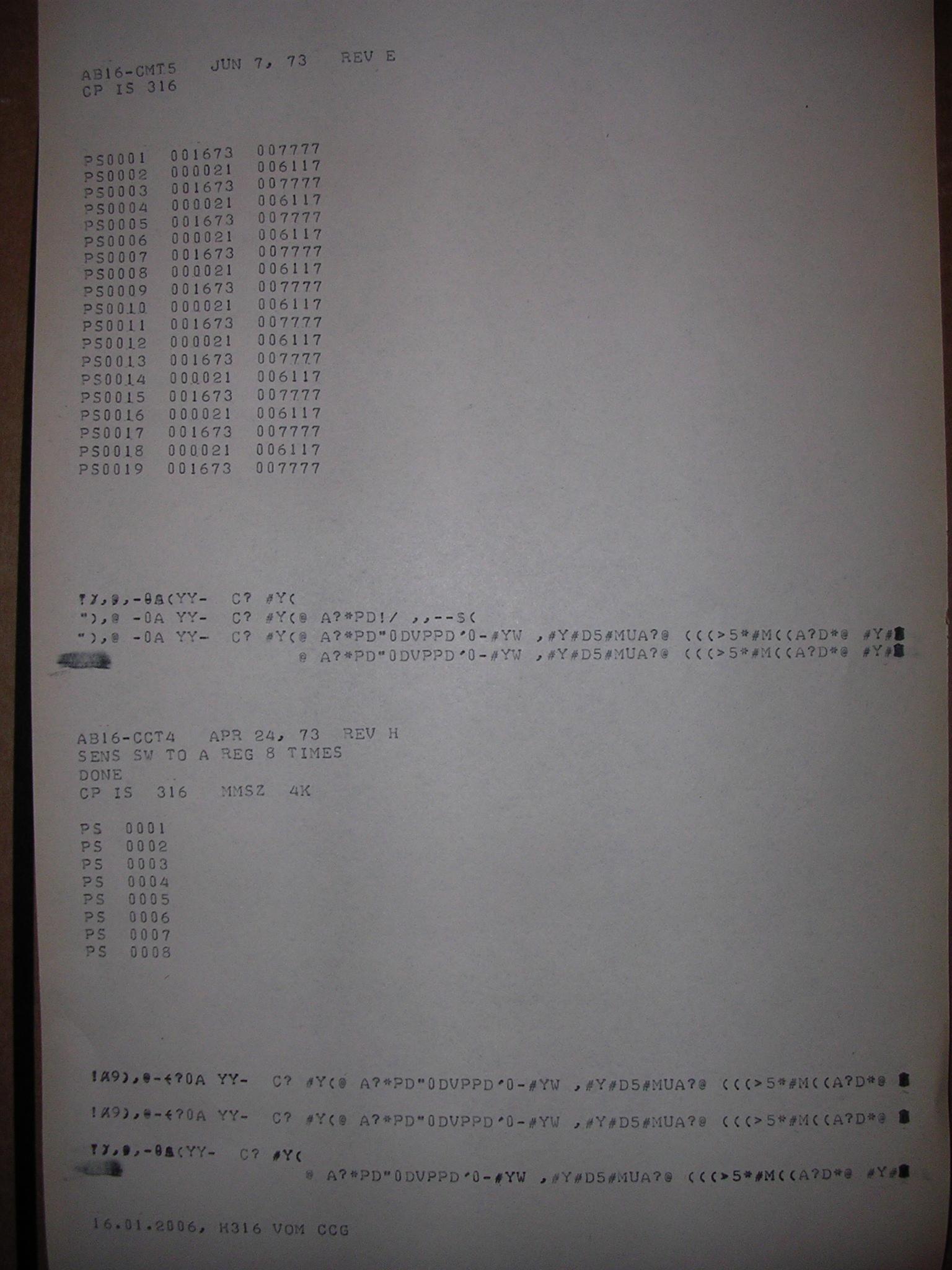

Here you see the output from the CMT5 and CCT4 test programs. The kunk between comes from bootrapping the system off the ASR33. Only comment to the result: Very cool.... | |
